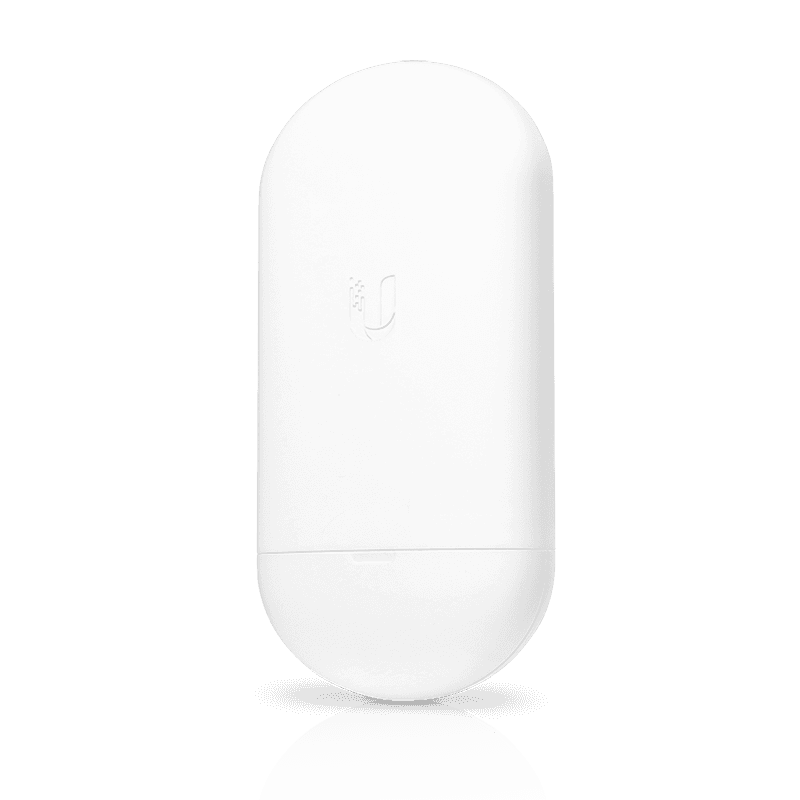

Ubiquiti airMAX NanoStation 5AC Loco (Loco5AC)
BZ$185.00
GST included, shipping calculated at checkout
airMAX NanoStation 5AC Loco Compact, UISP-ready WiFi radio sporting a classic NanoStation design and an updated airMAX AC chipset. Build Features Specifications Category Details Dimensions 179 x 77.5 x 59.1 mm (7.1 x 3.1 x 2.3") Weight 180 g (6.4 oz) Enclosure Material UV-stabilized plastic Mounting Pole mounting kit (Included)...
Return Policy
airMAX NanoStation 5AC Loco
Compact, UISP-ready WiFi radio sporting a classic NanoStation design and an updated airMAX AC chipset.
Build Features
Specifications
| Category | Details |
|---|---|

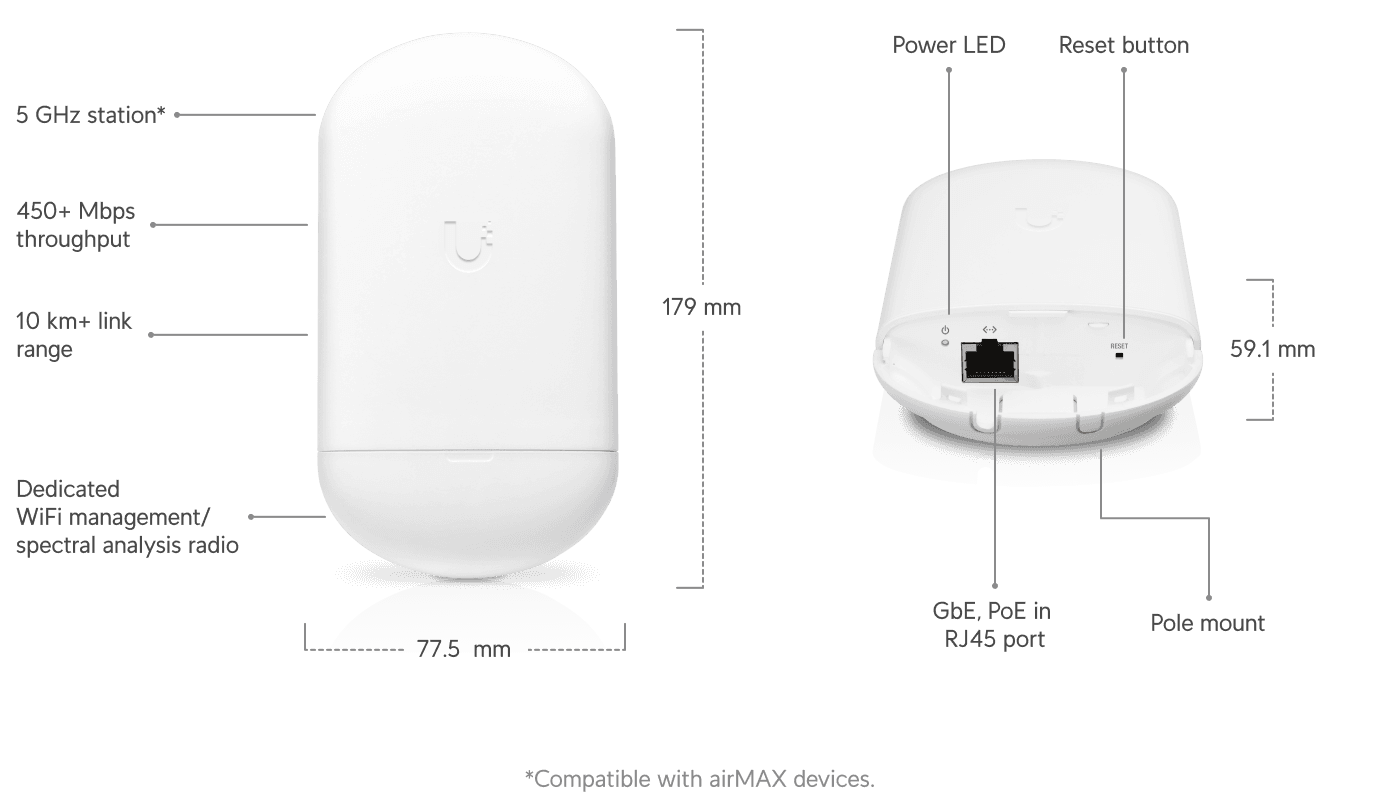

| Dimensions | 179 x 77.5 x 59.1 mm (7.1 x 3.1 x 2.3") |
| Weight | 180 g (6.4 oz) |
| Enclosure Material | UV-stabilized plastic |
| Mounting | Pole mounting kit (Included) |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.3A gigabit PoE supply (Not included) |
| Supported Voltage Range | 22–27V DC |
| Max. Power Consumption | 7W |
| LEDs | Power, Ethernet, (4) Signal Strength |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gain | 13 dBi |
| Channel Bandwidths | 10/20/30/40/50/60/80 MHz |
| Cross-pol Isolation | 20 dB min. |
| Max. VSWR | 1.8:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual Linear |
| Operating Frequency (MHz) - Worldwide | 5150-5875 MHz |
| Operating Frequency (MHz) - USA | U-NII-1: 5150-5250 MHz U-NII-2A: 5250-5350 MHz U-NII-2C: 5240-5725 MHz U-NII-3: 5725-5850 MHz |
| Management Radio (MHz) - Worldwide | 2412 - 2472 MHz |
| Management Radio (MHz) - US/CA | 2412 - 2462 MHz |
