Ubiquiti airMAX LiteBeam 5AC (LBE-5AC-Gen2)
BZ$250.00
GST included, shipping calculated at checkout
airMAX LiteBeam 5AC airMAX LiteBeam 5AC Ultra-lightweight design with proprietary airMAX ac chipset and dedicated management WiFi for easy UISP mobile app support and fast setup. Build Features Technical Specification Category Details Dimensions 358 x 271.95 x 272.5 mm (14.1 x 10.7 x 10.7") Weight Without mount: 800 g (1.8...
Return Policy
airMAX LiteBeam 5AC
Ultra-lightweight design with proprietary airMAX ac chipset and dedicated management WiFi for easy UISP mobile app support and fast setup.
Build Features
Technical Specification
| Category | Details |
|---|---|

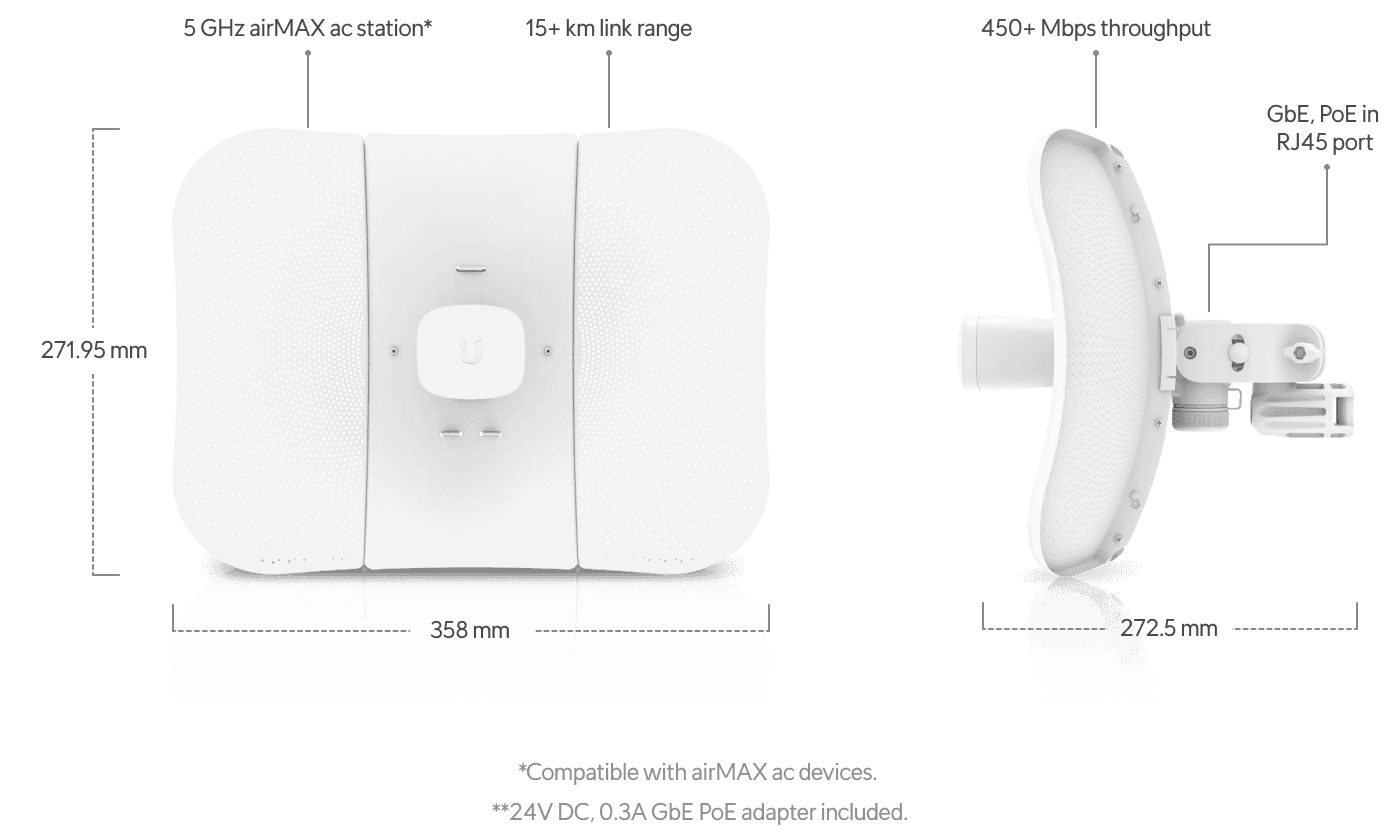

| Dimensions | 358 x 271.95 x 272.5 mm (14.1 x 10.7 x 10.7") |
| Weight | Without mount: 800 g (1.8 lb) With mount: 980 g (2.2 lb) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 275 N at 200 km/h (61.8 lbf at 125 mph) |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.3A gigabit PoE adapter (Included) |
| Supported Voltage Range | 22–27V DC |
| Max. Power Consumption | 7W |
| Max. Power Output | 25 dBm |
| Gain | 23 dBi |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) - Worldwide | 5150-5875 MHz |
| Operating Frequency (MHz) - USA | U-NII-1: 5150-5250 MHz U-NII-2A: 5250-5350 MHz U-NII-2C: 5240-5725 MHz U-NII-3: 5725-5850 MHz |
| Management Radio (MHz) - Worldwide | 2412 - 2472 MHz |
| Management Radio (MHz) - US/CA | 2412 - 2462 MHz |
