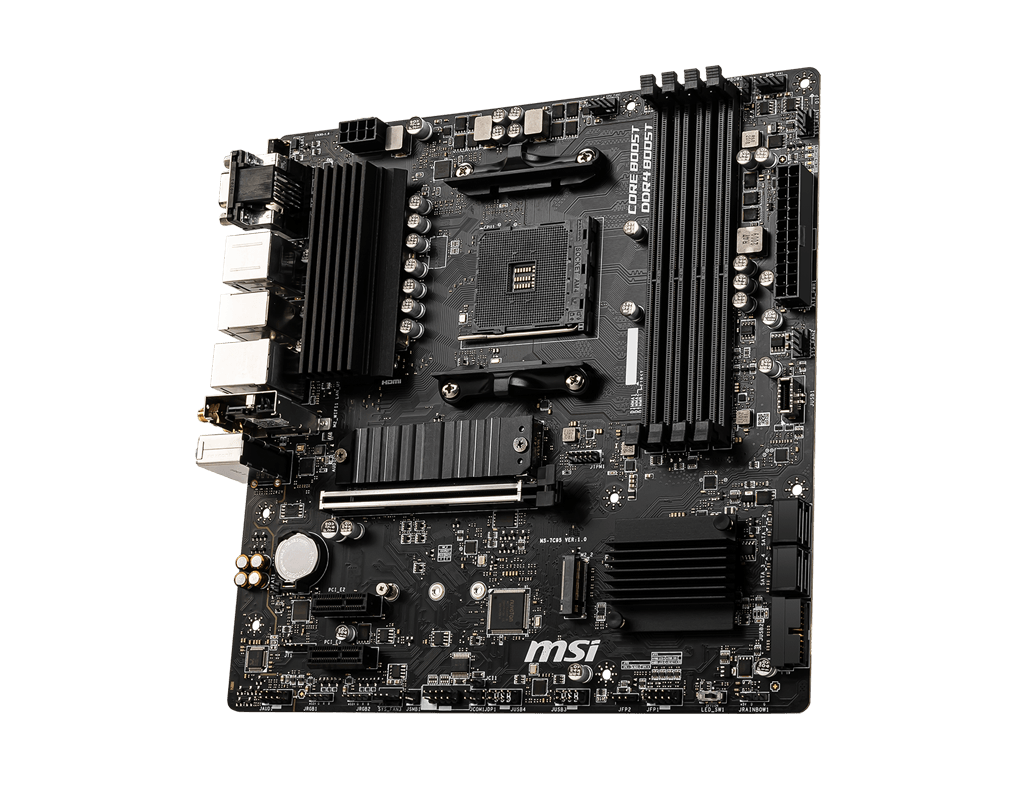

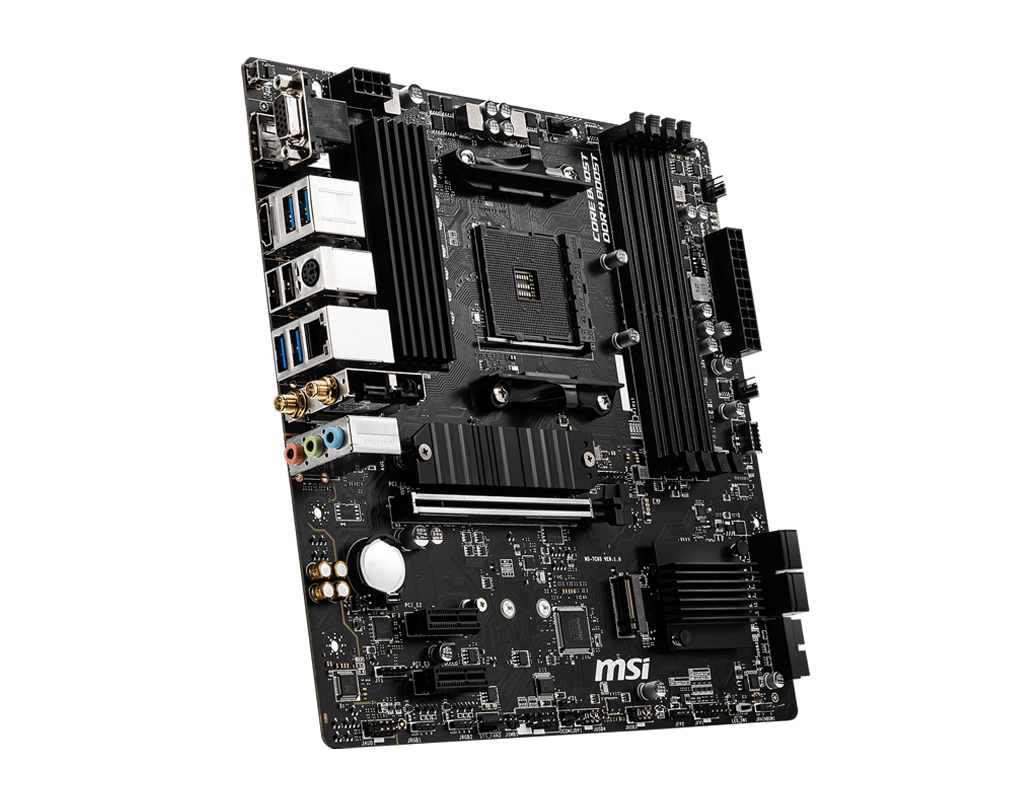

MSI B550M PRO-VDH WIFI Pro Series Motherboard

PCI-E Steel Armor

Protecting VGA cards against bending and EMI

Mystic Light Extension

Control additional RGB or Rainbow strip added to your system
with Dragon Center.

M.2 Shield FROZR

Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe
while preventing throttling, making them run faster.

Lightning Gen4 Solution

The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.

Core Boost

With premium layout and fully digital power design to support
more cores and provide better performance.

Audio Boost

Reward your ears with studio grade sound quality for the most
immersive audio experience.

DDR4 Boost

Advanced technology to deliver pure data signals for the best
gaming performance and stability.

2oz Thickened Copper PCB

An enhanced PCB design improves heat dissipation and
performance reliability.

User Friendly Design

MSI motherboards feature tons of convenient and smart design for DIY users.

Overview:

• Form Factor: Micro-ATX
• Chipset: AMD B550
• CPU Socket: AMD Socket AM4
• CPU Support:
  • 3rd Gen AMD Ryzen processors
  • Future AMD Ryzen processors (with BIOS update)


Graphic and Display:

• Graphics Interface:
  • 1x PCIe 4.0 / 3.0 x16 slot
• Display Outputs:
  • DisplayPort
  • HDMI
  • VGA


Memory:

• DIMM Slots: 4
• Memory Type: DDR4
• Max Speed: Up to 4400 MHz (OC)
• Channel Support: Dual Channel


Expansion and Storage:

• Expansion Slots:
  • 2x PCIe 3.0 x1 slots
• Storage Options:
  • 1x M.2 Gen4 x4 slot
  • 1x M.2 Gen3 x4 slot
  • 4x SATA 6Gb/s ports


Audio:

• Audio Codec: 8-Channel (7.1) HD Audio
• Enhancement: Audio Boost

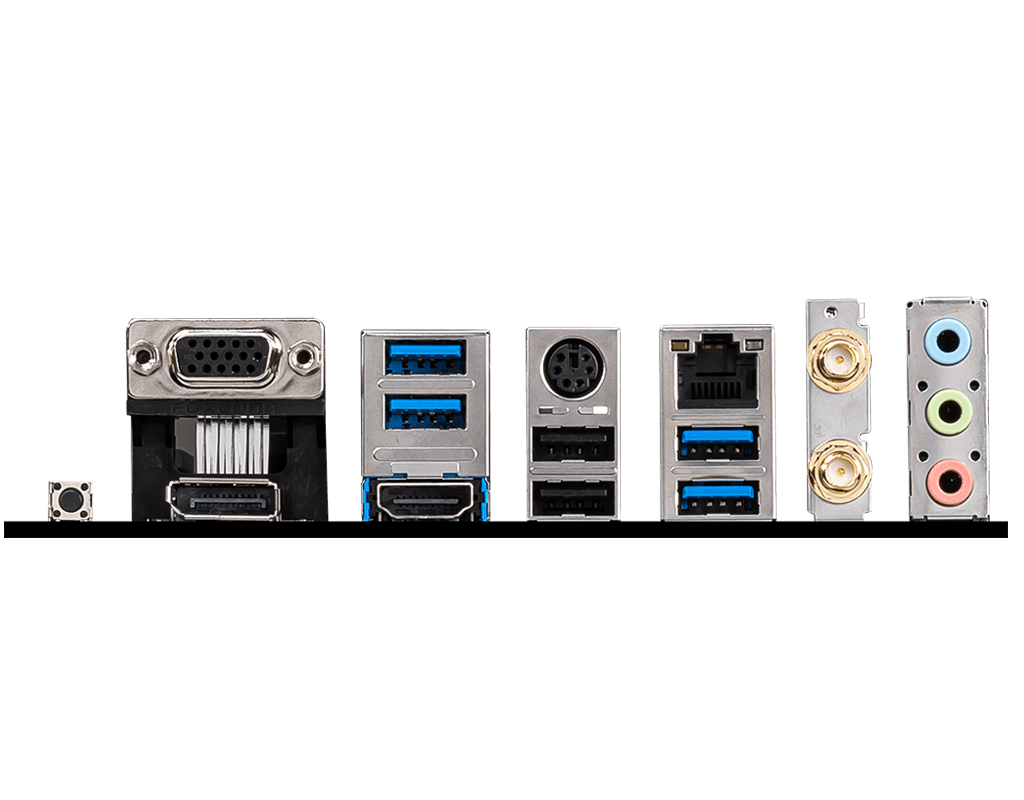

Rear I/O Ports:

• VGA
• USB 3.2 Gen 1 Type-A
• Keyboard / Mouse
• LAN
• Flash BIOS Button
• DisplayPort
• HDMI
• USB 2.0
• USB 3.2 Gen 1 Type-A
• Wi-Fi / Bluetooth
• HD Audio Connectors


Connectivity:

• LAN: Realtek RTL8111HN Gigabit LAN
• Wi-Fi / Bluetooth:
  • Wi-Fi AC
  • Bluetooth 4.2
