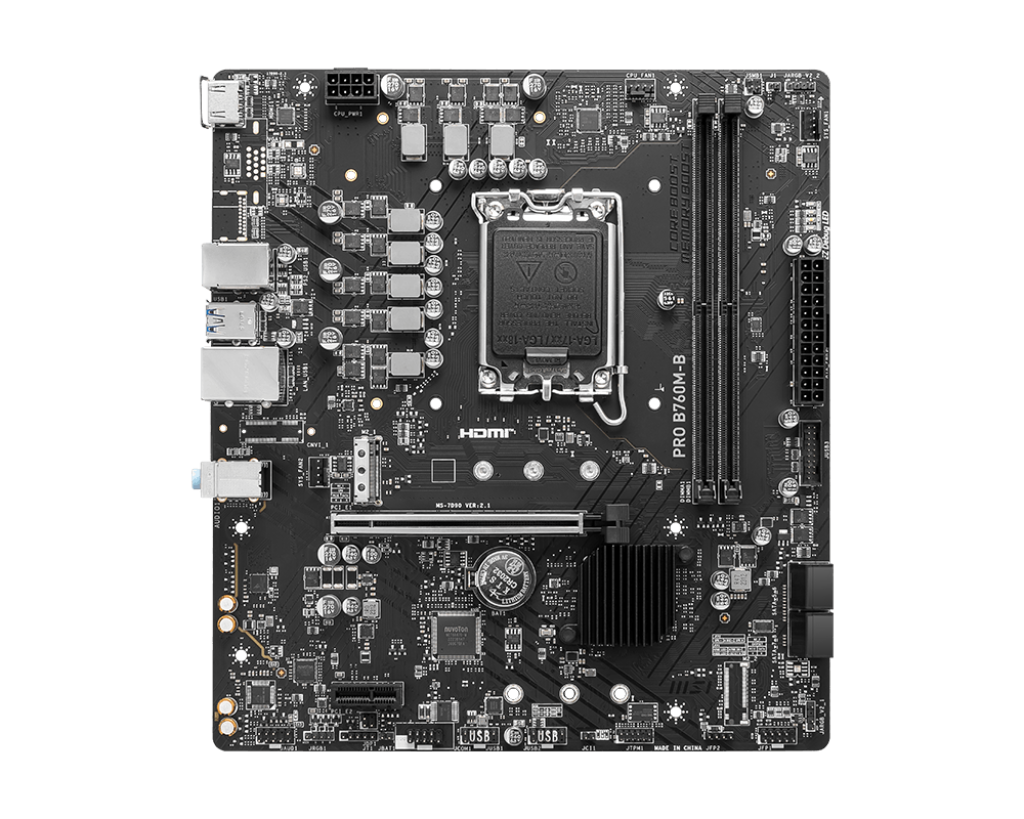

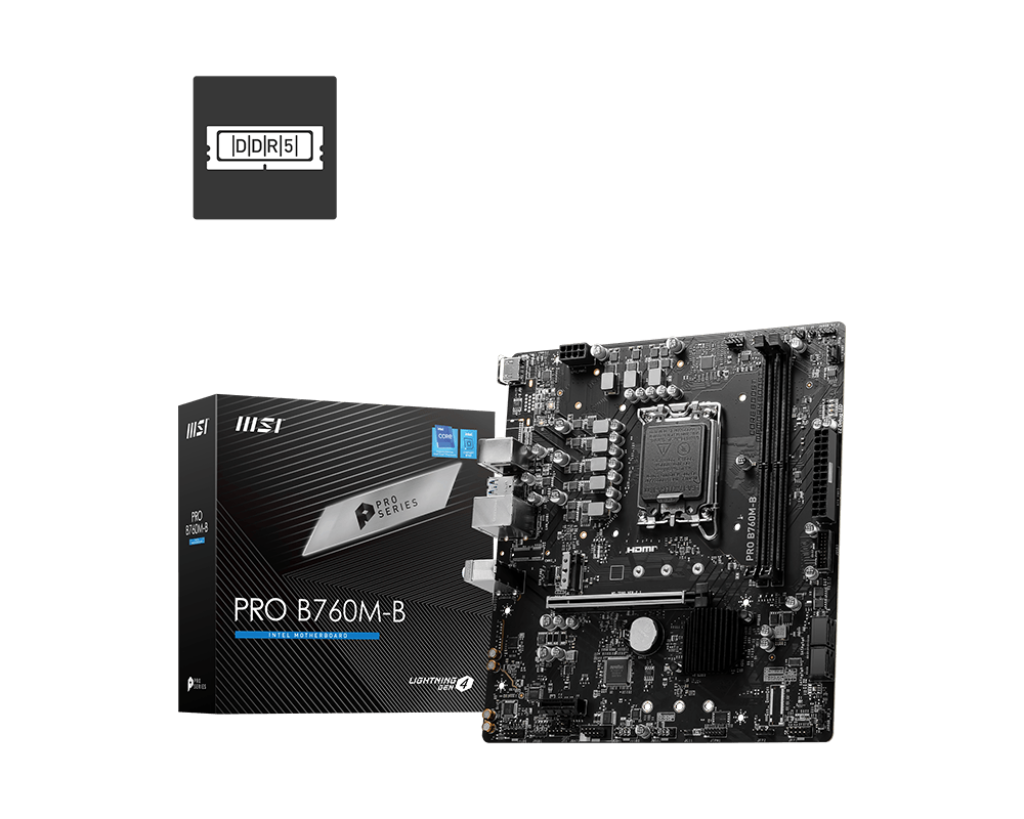

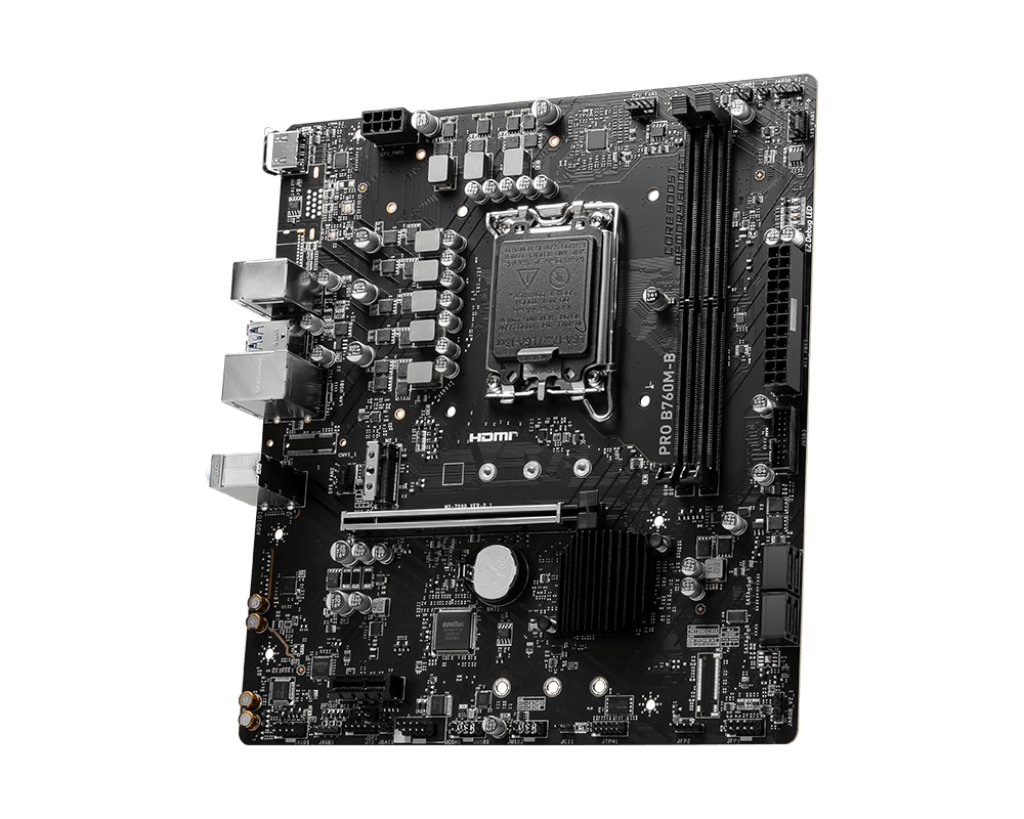

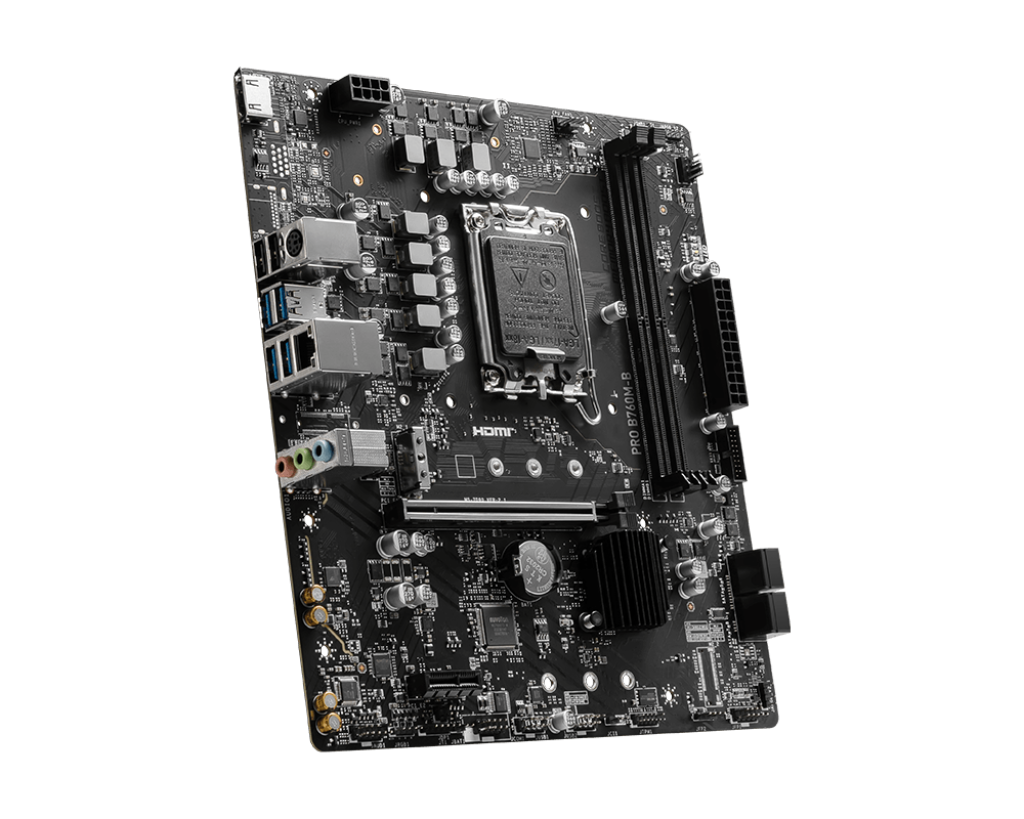

MSI B760M-B Pro Series Motherboard

Latest DDR5 Memory

A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.

Lightning Gen4 Solution

Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for
maximum transfer speed.

PCI-E Steel Armor

Protecting VGA cards against bending and EMI.

Frozr AI Cooling

Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.

Memory Boost

Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.

Core Boost

With premium layout and fully digital power design to support
more cores and provide better performance.

Overview:

• Form Factor: Micro-ATX (220mm × 243.84mm)
• Chipset: Intel B760
• CPU Socket: LGA 1700
• CPU Support: Intel Core 14th / 13th / 12th Gen, Pentium Gold, and Celeron Processors
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit


Graphic and Display:

• 1× HDMI 2.1 with HDR (up to 4K @ 60Hz)*
  *Available only with CPUs featuring integrated graphics

Internal I/O Headers:

• 1× ATX Power Connector
• 1× CPU Power Connector
• 1× CPU Fan Header, 2× System Fan Headers
• 2× Front Panel Headers
• 1× Chassis Intrusion Header
• 1× Front Audio Header
• 1× COM Port Header
• 2× Addressable RGB (JARGB_V2), 1× RGB LED Header (JRGB)
• 1× TPM Header (Supports TPM 2.0)


Memory:

• Memory Channels: Dual Channel
• DIMM Slots: 2× DDR5
• Max Memory Capacity: 128GB
• Memory Support:
  • DDR5 6400+(OC), 6200(OC), 6000(OC), 5800(OC), 5600/5400/5200/5000/4800 (JEDEC)
  • Intel® XMP 3.0 OC
  • Non-ECC, un-buffered memory


Expansion and Storage:

• PCIe x16 Slots: 1 (Gen 4.0 from CPU)
• PCIe x1 Slots: 1 (Gen 4.0 from chipset)
• Storage Options:
  • 1× M.2 Slot (PCIe 4.0 x4, supports 2280/2260/2242 devices)
  • 4× SATA 6Gb/s Ports
• RAID Support: RAID 0 / 1 / 5 / 10 for SATA devices


LED Features:

• 1× ATX Power Connector

Audio:

• Audio Codec: Realtek ALC897
• Audio Channels: 7.1-Channel High Definition Audio


Connectivity:

• LAN: Realtek RTL8125B 2.5Gbps LAN

USB Ports:

• USB 3.2 Gen 1 (5Gbps) Type-A:
  • Front: 2
  • Rear: 4
• USB 2.0 Type-A:
  • Front: 4
  • Rear: 2

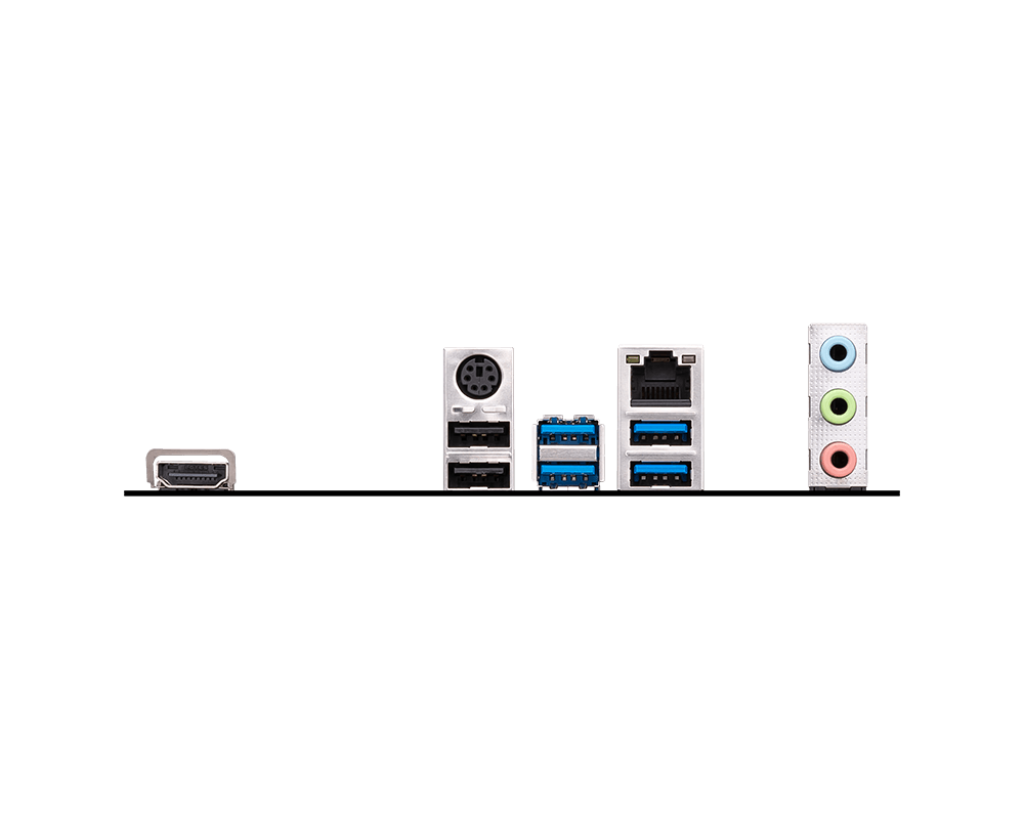

Back Panel Ports:

• 1× HDMI
• 1× Keyboard/Mouse Combo Port
• 1× 2.5G LAN Port
• 1× Audio Connectors
• 2× USB 2.0
• 4× USB 3.2 Gen 1 (5Gbps) Type-A
