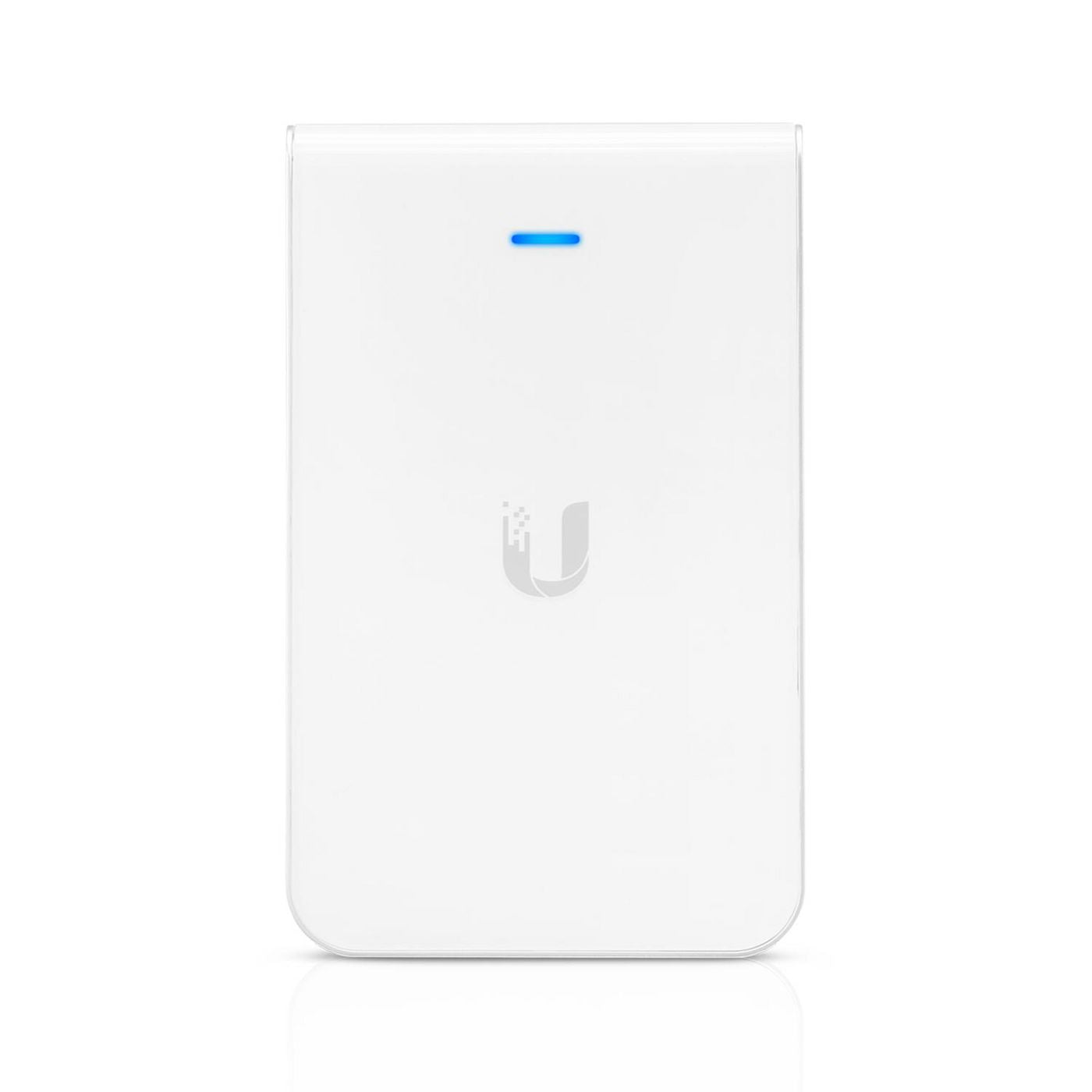

Ubiquiti UniFi In-Wall HD Access Point (UAP-IW-HD)

Mechanical

Dimensions: 139.7 x 86.7 x 25.8 mm (5.5 x 3.4 x 1")

Weight: 210 g (7.4 oz)

Hardware

Networking interface: (5) GbE RJ45 ports

Management interface: Ethernet

PoE interface: (1) PoE/PoE+ in, (1) PoE out

Power method: PoE, PoE+ (Required for PoE passthrough)

Power supply: UniFi PoE switch

PoE out: 48V pass-through (Pins 1, 2+; 3, 6-)

Supported voltage range: 44—57V DC

Max. power consumption: 11W (Excluding PoE output)

Max. PoE wattage per port by PSE: 23W*
*Requires PoE switch.

Max. TX power

• 2.4 GHz: 23 dBm
• 5 GHz: 26 dBm
• 6 GHz: –

MIMO

• 2.4 GHz: 2 x 2 (DL MU-MIMO)
• 5 GHz: 4 x 4 (DL MU-MIMO)
• 6 GHz: –

Max. data rate

• 2.4 GHz: 300 Mbps (BW40)
• 5 GHz: 1.7 Gbps (BW80)
• 6 GHz: –

Antenna gain

• 2.4 GHz: 1.8 dBi
• 5 GHz: 6 dBi
• 6 GHz: –

Button: Factory reset

Mounting: 1-Gang electrical wall box (Optional)

Ambient operating temperature: -10 to 60° C (14 to 140° F)

Ambient operating humidity: 5 to 95% noncondensing

Certifications: CE, FCC, IC, cULus

Software

WiFi standards: 802.11 a/b/g/n/ac

Wireless security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF

BSSID: Up to 8 per radio

VLAN: 802.1Q

Advanced QoS: Per-user rate limiting

Guest traffic isolation: Supported

Power save: Supported

Beamforming: Supported

WMM: Voice, video, best effort, and background

Concurrent clients: 200+

Supported Data Rates (Mbps)

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0 -MCS15, HT 20/40)
• 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
• 802.11ac (160 MHz): 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160)
