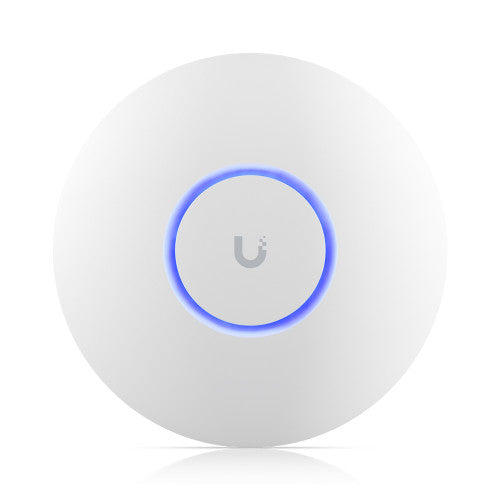

Ubiquiti U6 Plus Access Point (U6+)
Return Policy
Compact, ceiling-mounted WiFi 6 AP with 4 spatial streams that improves upon the U6 Lite with higher performance and dual-band WiFi 6 support. Ideal for small and medium-sized businesses.
WiFi 6
4 spatial streams
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE
GbE uplink

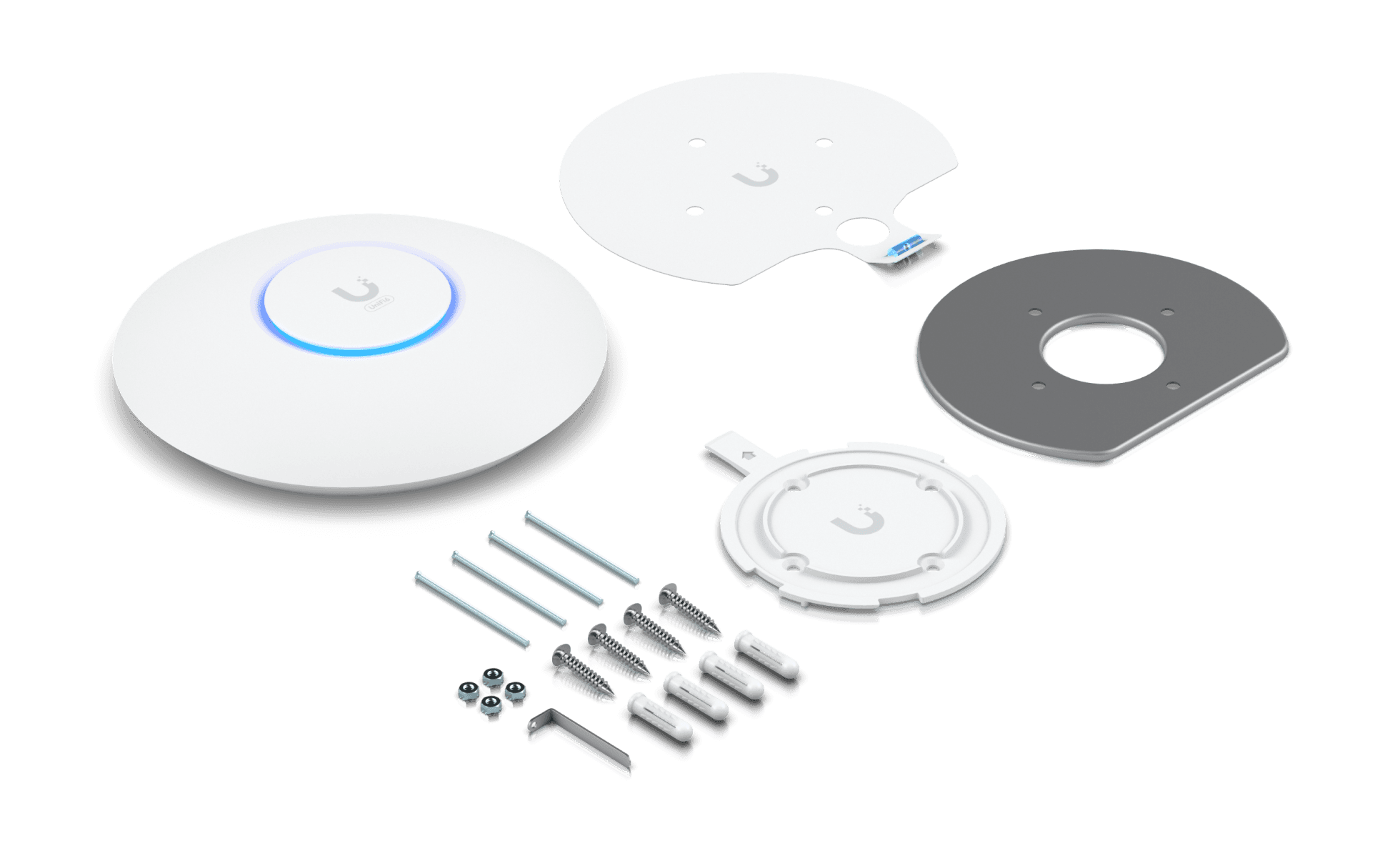

In The Box
Mechanical
Dimensions: Ø160 x 33 mm (Ø6.3 x 1.3")
Weight: Without mount: 338 g (0.8 lb), With mount: 413 g (0.9 lb)
Enclosure material: Polycarbonate, aluminum
Mount material: ABS, SGCC steel
Hardware
Networking interface: (1) GbE RJ45 port
Management interface: Ethernet
Power method: PoE
Supported voltage range: 44–57V DC
Max. power consumption: 9W
Max. TX power
- 2.4 GHz: 23 dBm
- 5 GHz: 23 dBm
- 6 GHz: –
MIMO
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- 5 GHz: 2 x 2 (DL/UL MU-MIMO)
- 6 GHz: –
Max. data rate
- 2.4 GHz: 573.5 Mbps (BW40)
- 5 GHz: 2.4 Gbps (BW160)
- 6 GHz: –
Antenna gain
- 2.4 GHz: 3 dBi
- 5 GHz: 5.4 dBi
- 6 GHz: –
LEDs: White/blue
Button: Factory reset
Mounting: Wall, ceiling (Included)
Ambient operating temperature: -30 to 60° C (-22 to 140° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Software
WiFi standards: 802.11a/b/g/n/ac/ax (WiFi 6)
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Zero-wait DFS: Yes*
*Supported with upcoming firmware versions.
Concurrent clients: 300+
Supported Data Rates
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Management application: UniFi Network: Version 7.3.76 and later
