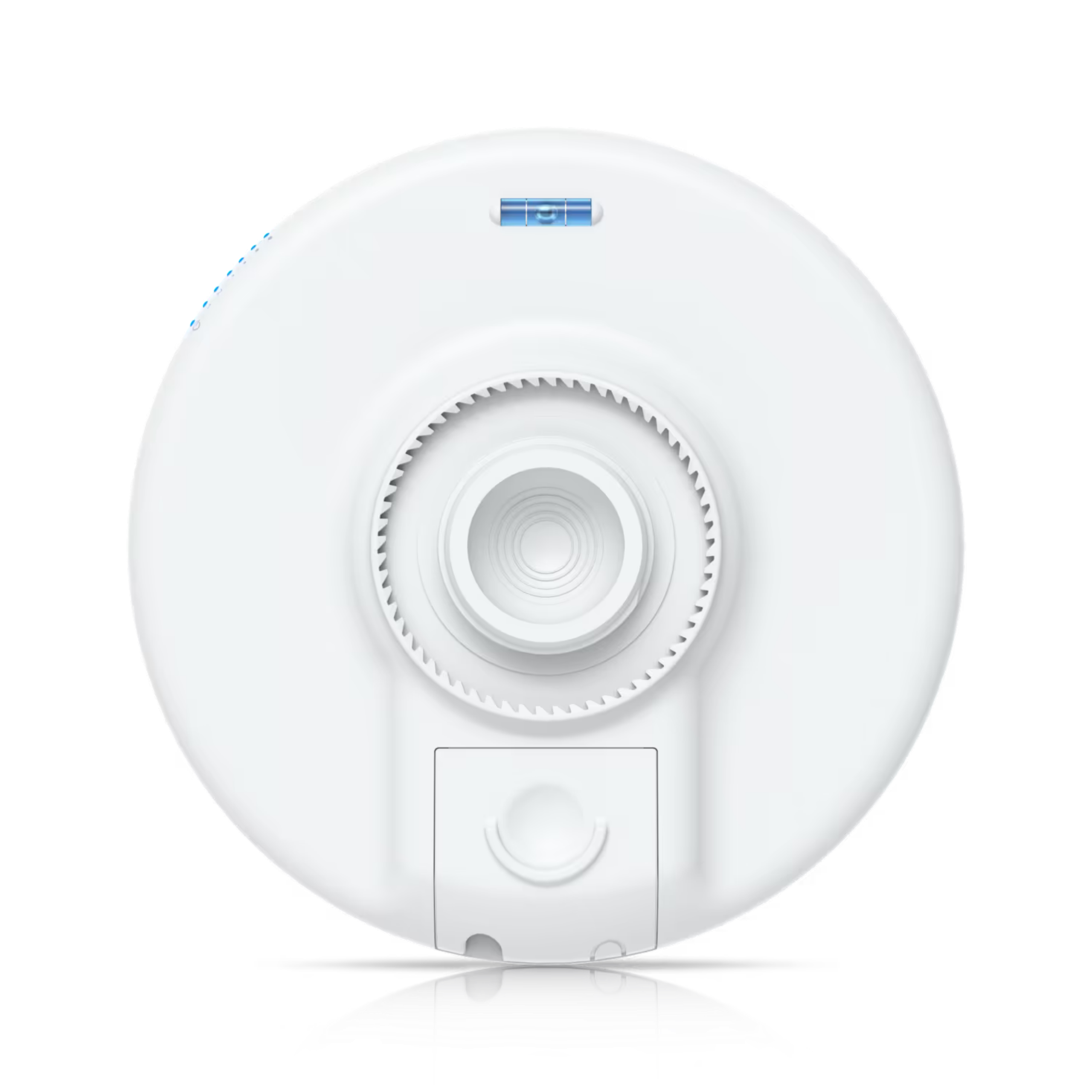

Ubiquiti UniFi Device Bridge Pro Sector (UDB-Pro)
BZ$700.00
GST included, shipping calculated at checkout
Ubiquiti UniFi Device Bridge Pro Sector The Ubiquiti UniFi Device Bridge Pro is designed to provide robust wireless connectivity in various environments. With an antenna gain level of 19 dBi and support for advanced wireless protocols like IEEE 802.11a/n/ac, this device ensures strong signal transmission over long distances. It has...
Return Policy
Ubiquiti UniFi Device Bridge Pro Sector
The Ubiquiti UniFi Device Bridge Pro is designed to provide robust wireless connectivity in various environments. With an antenna gain level of 19 dBi and support for advanced wireless protocols like IEEE 802.11a/n/ac, this device ensures strong signal transmission over long distances. It has a range of up to 5 km in open space, suitable for applications where network extension is essential.
Technical Specifications
Hardware:
- Dimensions: ⌀189.5 × 64.3 mm (⌀7.4 × 2.5")
- Networking Interfaces: (2) GbE RJ45 ports
- Antenna Type: Internal, 19 dBi
- Enclosure Material: UV‑resistant polycarbonate
- Mount Material: UV‑stabilized polycarbonate, stainless steel
- Mounting: Pole mount (included), wall or pole compatible
- Weatherproofing: IPX6
- Weight:
- Device: 431 g (0.95 lb)
- With mount: 515 g (1.1 lb)
- Device: 431 g (0.95 lb)
- Button: Factory reset
- LED Indicators: Power, Ethernet (2 ports), Signal strength (4‑level)
Performance:
- Max Power Consumption: 9W
- Supported Voltage Range: 42.5–57V DC
- Wind Loading: 69 N at 200 km/h (15.5 lbf at 125 mph)
Wireless:
- WiFi Standard: WiFi 5 (802.11ac)
- Spatial Streams: 2×2 MIMO
- Frequency Band: 5 GHz
- Max Data Rate: 867 Mbps (BW80)
- Antenna Gain: 19 dBi
- Max TX Power: 25 dBm
- Channel Bandwidth: 20/40/80 MHz
- Coverage Range: Up to 5 km (3.1 mi)
- Supported Data Rates:
- 802.11ac: 6.5 Mbps – 866.7 Mbps
- 802.11n: 6.5 Mbps – 300 Mbps
- 802.11a: 6 – 54 Mbps
- 802.11ac: 6.5 Mbps – 866.7 Mbps
- Wireless Security: WPA2‑AES
- Operating Frequencies:
- US/CA: 5150–5250, 5250–5350,
- 5470–5725, 5725–5850 MHz
- Worldwide: 5150–5875 MHz
Features:
- Long‑range directional WiFi — up to 5 km
- 19 dBi high‑gain antenna for focused wireless links
- Internal 2×2 MIMO for stable point‑to‑point and point‑to‑multipoint links
- IPX6 weather‑sealed outdoor enclosure
- Built for harsh climates (–40° to 60°C operating range)
- Dual Ethernet ports with passive PoE passthrough
- UV‑resistant materials for long‑term outdoor durability
Power:
- Power Method: PoE (PoE+ required for PoE passthrough)
- Included Power Supply: 48V 0.32A PoE adapter
- PoE Features:
- PoE In (main)
- Passive PoE Out (secondary)
- PoE In (main)
5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.
This device is built to withstand extreme conditions, operating in temperatures from -40°C to 60°C and humidity levels between 5% to 95%. The weatherproof, UV-resistant casing protects the internal components, making it a reliable option for outdoor installations. Equipped with Power over Ethernet (PoE) capabilities and efficient performance reaching up to 867 Mbps on the 5 GHz band, the Ubiquiti UniFi Device Bridge Pro is an effective solution for establishing a resilient wireless bridge.
