-40%
Ubiquiti PowerBridge M5 AirMAX 5 GHz MIMO Bridge (PBM-5)
BZ$670.00
BZ$1,110.00
GST included, shipping calculated at checkout
Ubiquiti PowerBridge M5 AirMAX 5 GHz MIMO Bridge The Ubiquiti Networks PowerBridge M5 AirMAX 5 GHz MIMO Bridge joins two networks together by creating a wireless connection up to 12 miles away. Technical Specifications Hardware: Processor: Atheros MIPS 24KC, 400 MHz Memory: 64 MB SDRAM, 8 MB Flash Dimensions: 17.5...
Return Policy

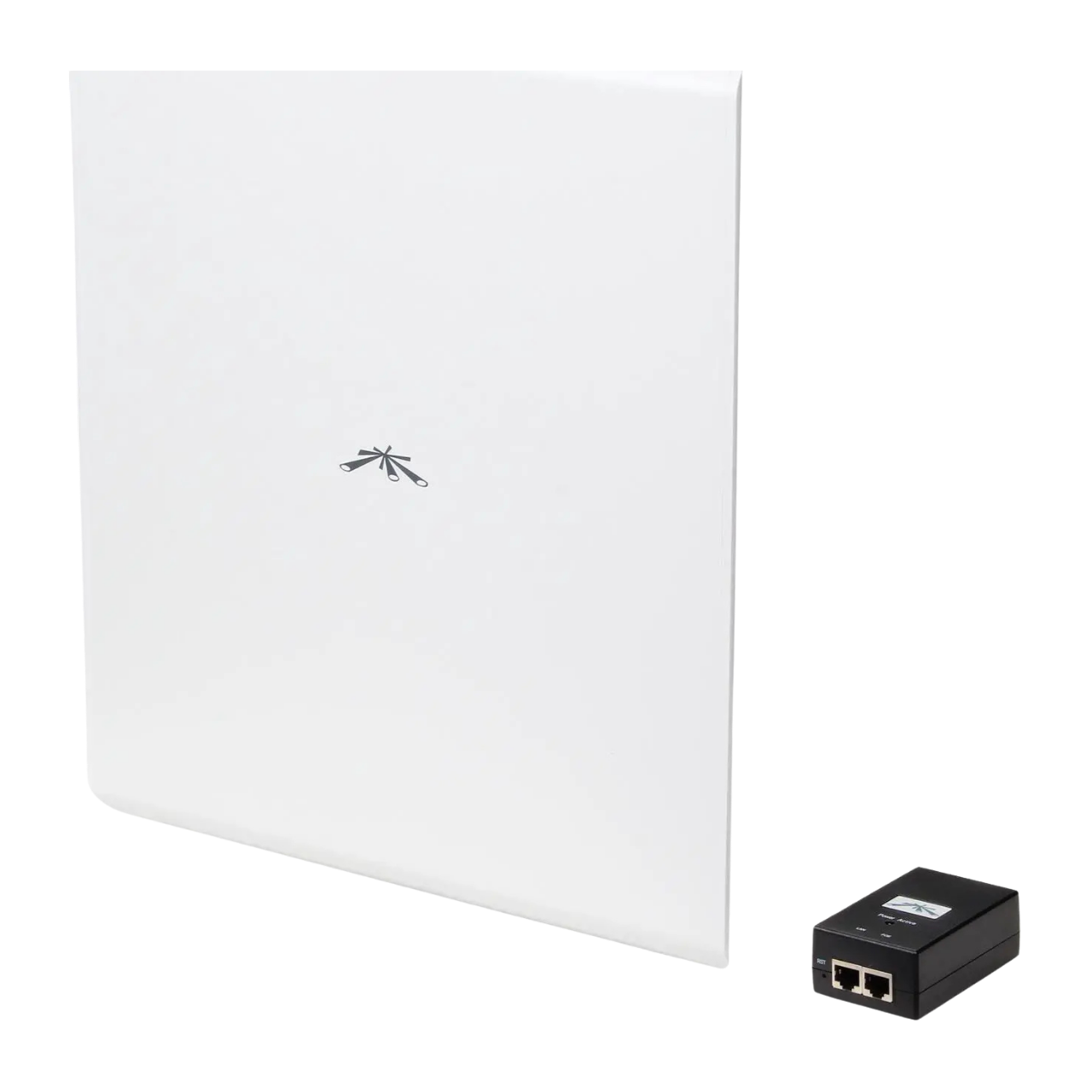

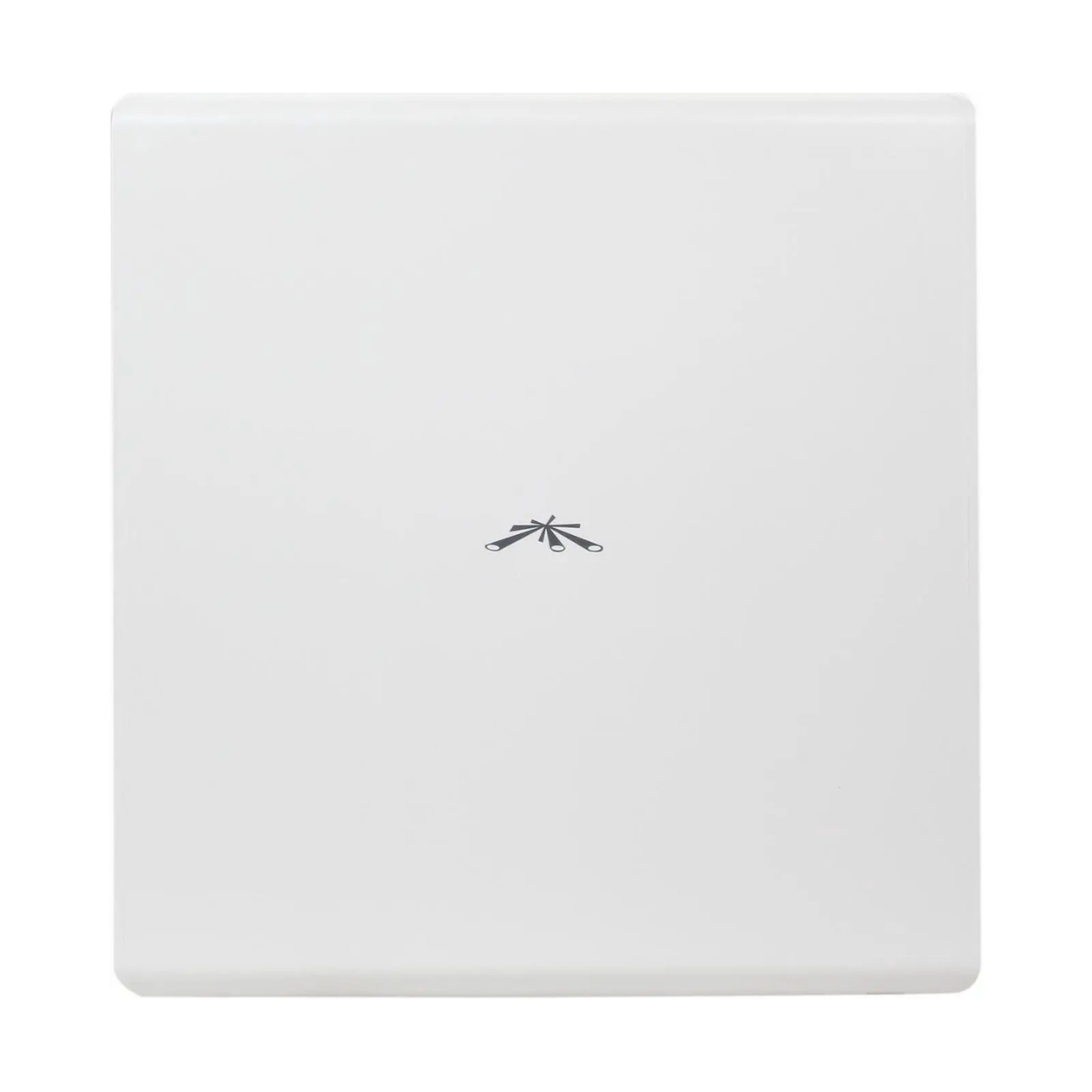

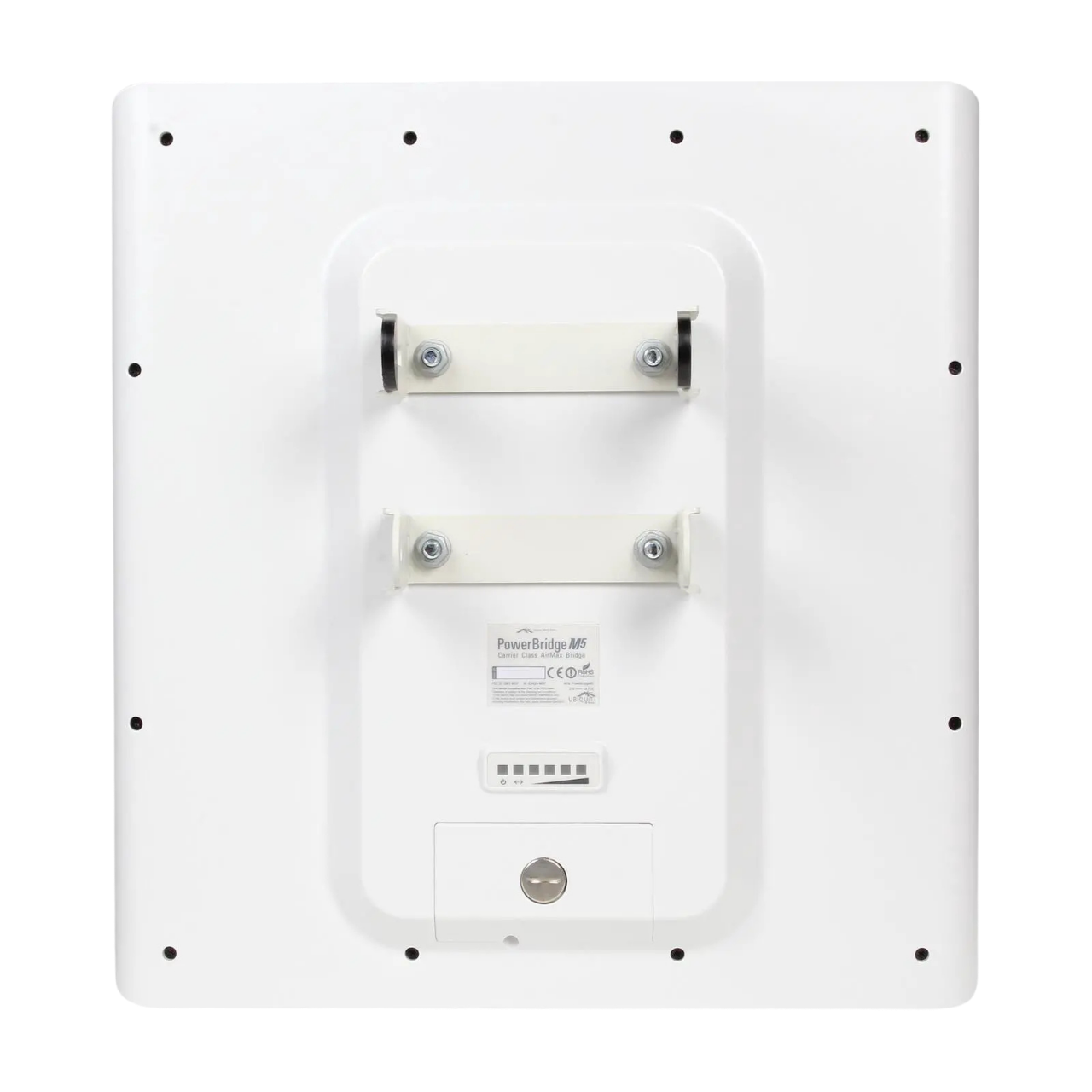

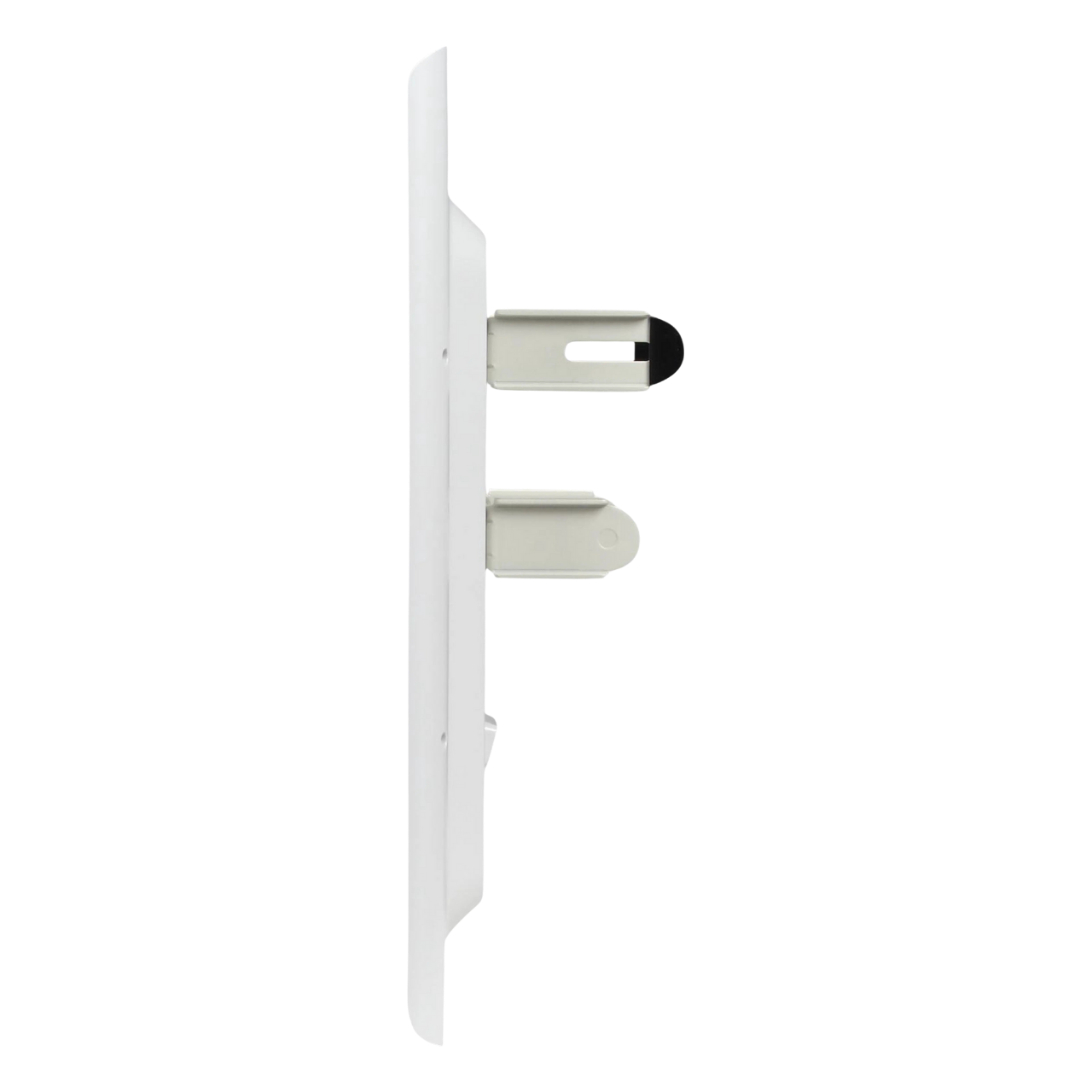

Ubiquiti PowerBridge M5 AirMAX 5 GHz MIMO Bridge
The Ubiquiti Networks PowerBridge M5 AirMAX 5 GHz MIMO Bridge joins two networks together by creating a wireless connection up to 12 miles away.
Technical Specifications
Hardware:
- Processor: Atheros MIPS 24KC, 400 MHz
- Memory: 64 MB SDRAM, 8 MB Flash
- Dimensions: 17.5 × 16.4 × 1.3 in
- Weight: 8.42 lb
- Enclosure: Outdoor UV‑stabilized plastic
- Mounting: Pole‑mount kit included
Integrated Antenna:
- Type: 2×2 MIMO dual‑polarity
- Frequency Support: 4.9–6.0 GHz
- Gain: 24.8–26.5 dBi
- Range: 12+ miles (20+ km)
- Beamwidth: 6° (H‑Pol, V‑Pol, Elevation)
- Polarization: Dual linear
- Cross‑Pol Isolation: ≥ 28 dB
- VSWR: 1.1:1 max
Networking:
- Interface: 1 × 10/100 Mbps RJ45 (CAT5)
- Throughput: 150+ Mbps
- Operating Frequency: 5470–5825 MHz
- Power:

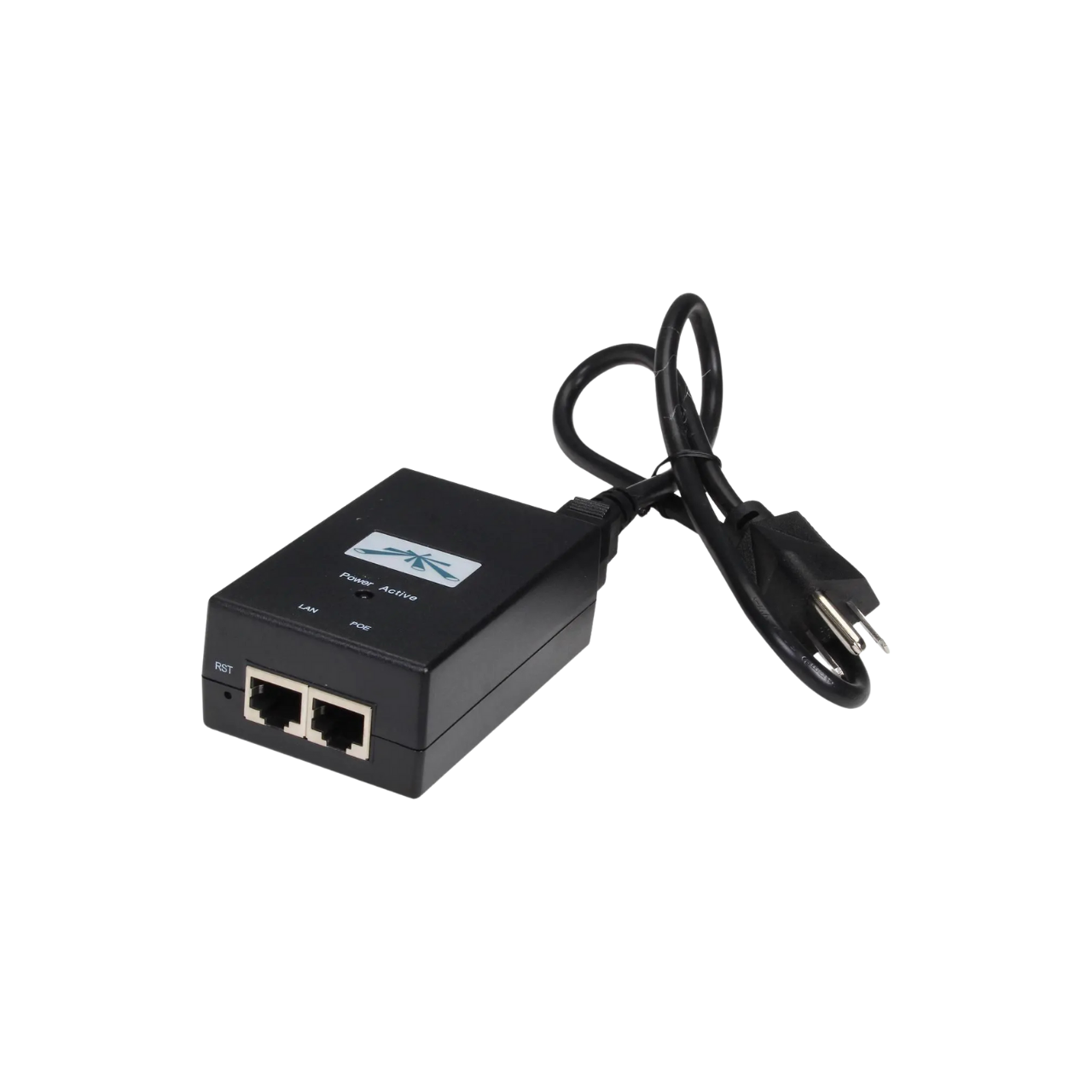

- 24V, 1A PoE adapter with surge protection (included)
- Passive PoE (4,5 + / 7,8 –)
- Max Consumption: 8 W
Environmental:
- Temperature: –22 to 176°F (–30 to 80°C)
- Humidity: 5–95% condensing
- Certifications: FCC Part 15.247, IC RS210, CE, RoHS
- Shock/Vibration: ETSI 300‑019‑1.4
Radio Performance:
- Transmit Power (±2 dB)
- 802.11a: Up to 27 dBm (1–24 Mbps), 22 dBm (54 Mbps)
- 802.11n (5 GHz): 21–27 dBm depending on MCS rate
- Receive Sensitivity (±2 dB)
- 802.11a: –75 to –83 dBm
- 802.11n (5 GHz): –74 to –96 dBm based on MCS
Packaging:
- Package Weight: 13.1 lb
- Box Size: 19.4 × 17.7 × 5.7 in
It sports a slim-profile panel antenna that offers a signal gain of 25 dBi and operates on the 5 GHz frequency.
With Ubiquiti's airMAX technology, it supports the TDMA protocol so you may build a high-throughput network with low latency. In addition, an included mounting kit and PoE adapter allow you to mount the PowerBridge M5 on a pole quickly.
