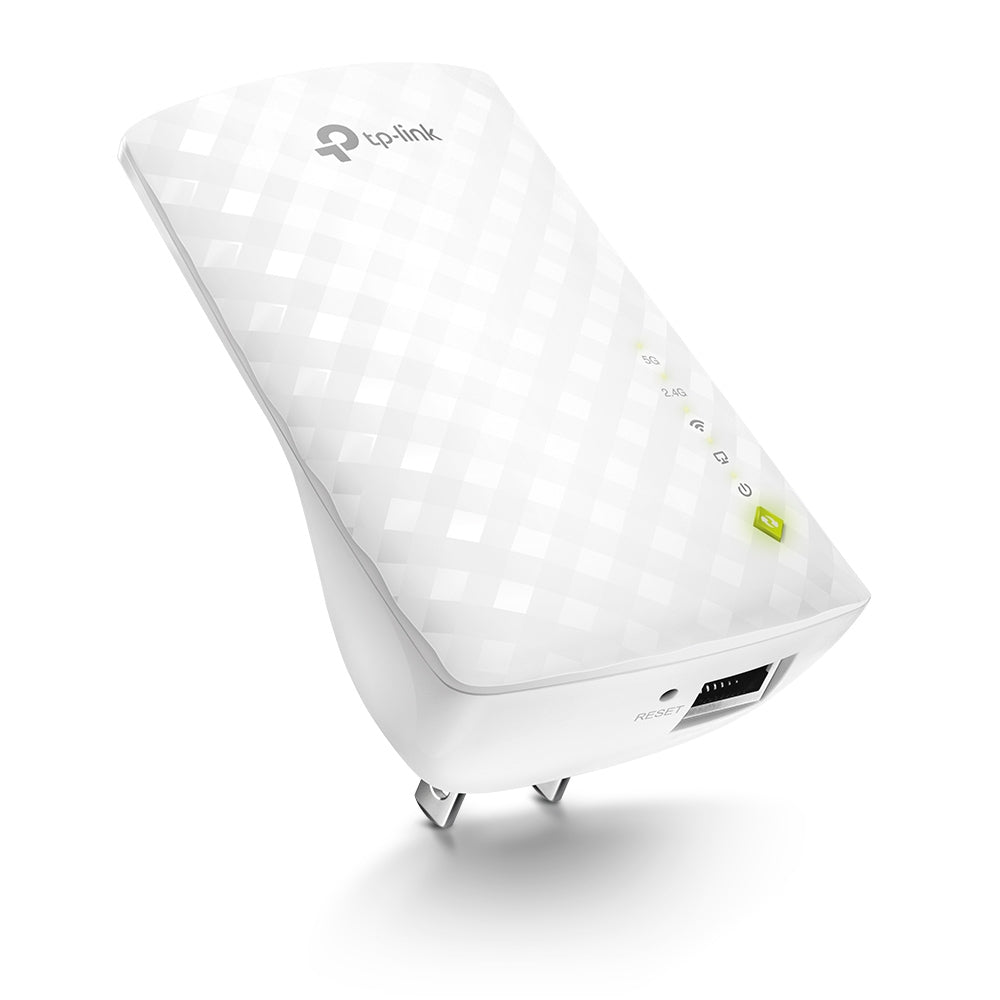

TP-Link AC750 WiFi Range Extender (RE220)

Boosts Wireless Signal

Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly

802.11 b/g/n/ac Compatible

Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices

Dual Band 750Mbps

Dual band speeds up to 750Mbps

Compact Wall-Mount Design

Miniature size and wall-mounted design make it easy to deploy and move flexibly

Ethernet Port Adapter

Ethernet port allows the Extender to function as a wireless adapter to connect wired devices

An Access Point and Wireless Adapter

The Ethernet port of RE220 can easily turn your wired Internet connection into a wireless access point. It can also function as a wireless adapter to connect wired devices

Hardware Features:

• Standards and Protocols: IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Plug Type: US
• Interface: 1 x 10/100Mbps Ethernet Port (RJ45)
• Button: RE (Range Extender) Button, Reset Button
• Input Power: 100-240V~50/60Hz
• Max. Power Consumption: About 6.5W
• Dimensions (W x D x H): 4.3 x 2.6 x 3.0 in. (110.0 x 65.8 x 75.2 mm)
• Antenna: 3 x internal


Others:

• Certification: FCC, RoHS
• Package Content:
  • AC750 Wi-Fi Range Extender RE220
  • Quick Installation Guide
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.

• Wireless Modes: Range Extender

Features:

• Wireless Standards: IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
• Frequency: 2.4GHz & 5GHz
• Signal Rate:
  • 5GHz: Up to 433Mbps
  • 2.4GHz: Up to 300Mbps
• Reception Sensitivity:
  • 2.4G:
    • 270M: -70dBm@10% PER
    • 130M: -70dBm@10% PER
    • 108M: -73dBm@10% PER
    • 54M: -75dBm@10% PER
    • 11M: -86dBm@8% PER

  • 5G:
    • 390M: -60dBm@10% PER
    • 29.3M: -83dBm@10% PER
    • 180M: -64dBm@10% PER
    • 13.5M: -87dBm@10% PER
    • 78M: -68dBm@10% PER

    • 54M: -75dBm@10% PER

Environment:

• Operating Temperature: 0°C40°C (32°F104°F)
• Storage Temperature: -40°C70°C (-40°F158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Wireless Functions:

• WMM (Wi-Fi Multimedia)
• Wireless Statistic
• Domain Login Function

Transmission Power:

• 64/128/152-bit WEP
• WPA-PSK / WPA2-PSK


Wireless Security:

• < 20 dBm (EIRP)

Wireless Modes:

• Range Extender/Access Point
