TP-Link Omada Gigabit VPN Router (ER605 (TL-R605) V2)
Return Policy
TP-Link Omada Gigabit VPN Route
Secure your business network with the ER605 V2 Omada Gigabit VPN Router from TP-Link. Designed for high flexibility, this VPN router features five Gigabit Ethernet ports, two of which can be freely switched between WAN and LAN modes and work alongside the dedicated WAN and two LAN ports to manage multiple internet connections through one device.
With the multi-WAN Load Balancing function, data streams are distributed according to the bandwidth proportion of every connected WAN port to optimize multi-line broadband utilization. A mobile 4G/3G broadband modem may be connected to the router through the USB 2.0 port as a backup WAN connection.
Specifications
Overview
- Model: TP‑Link ER605
- Product Type: Gigabit VPN Router
- Best For: Small business networks, branch offices, and secure remote access
Network Performance
- NAT Throughput: Up to 1.8 Gbps bi‑directional
- Concurrent Sessions: Up to 150,000
- New Sessions Per Second: 2,600
- Maximum Power Consumption: 7.94 W
Ports & Connectivity

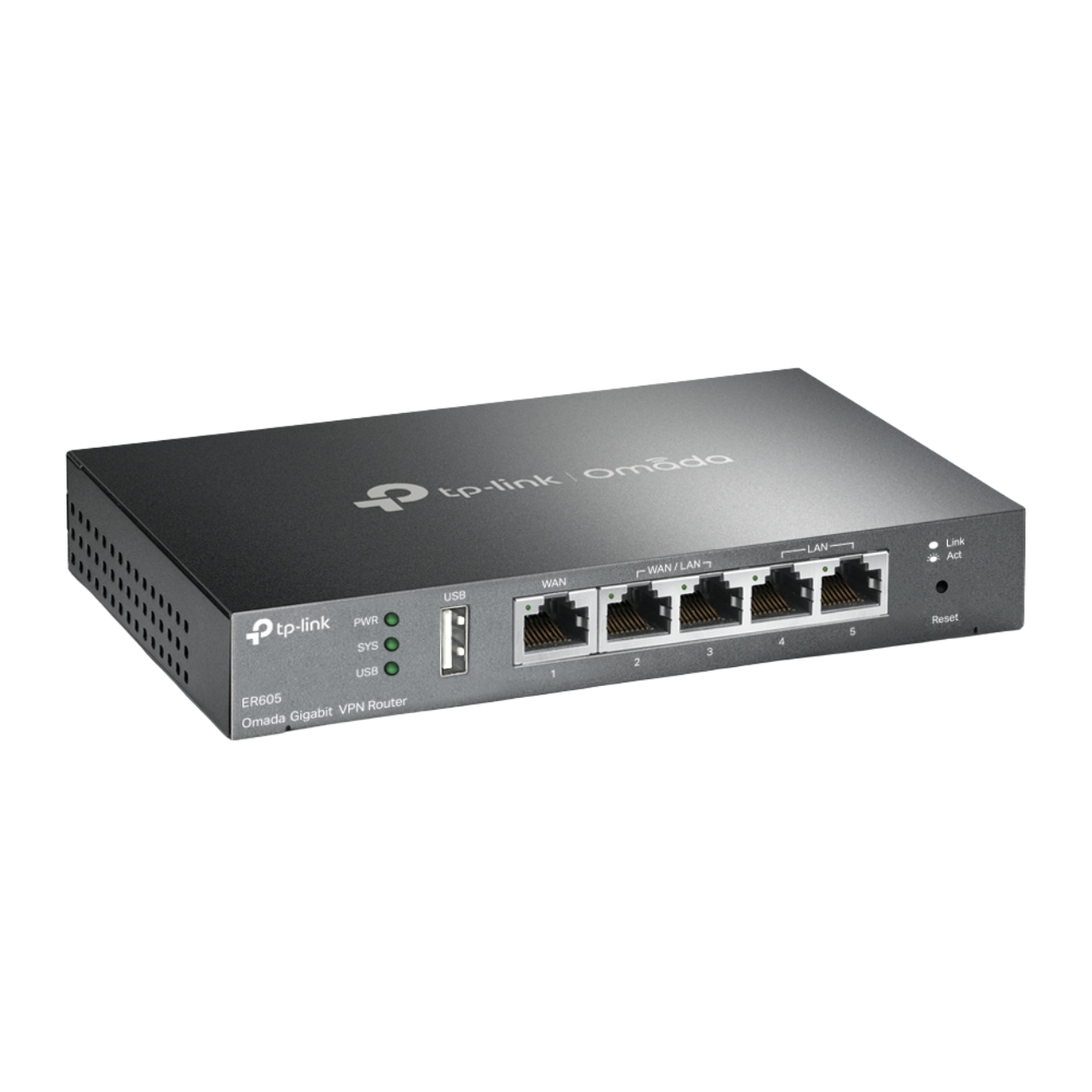

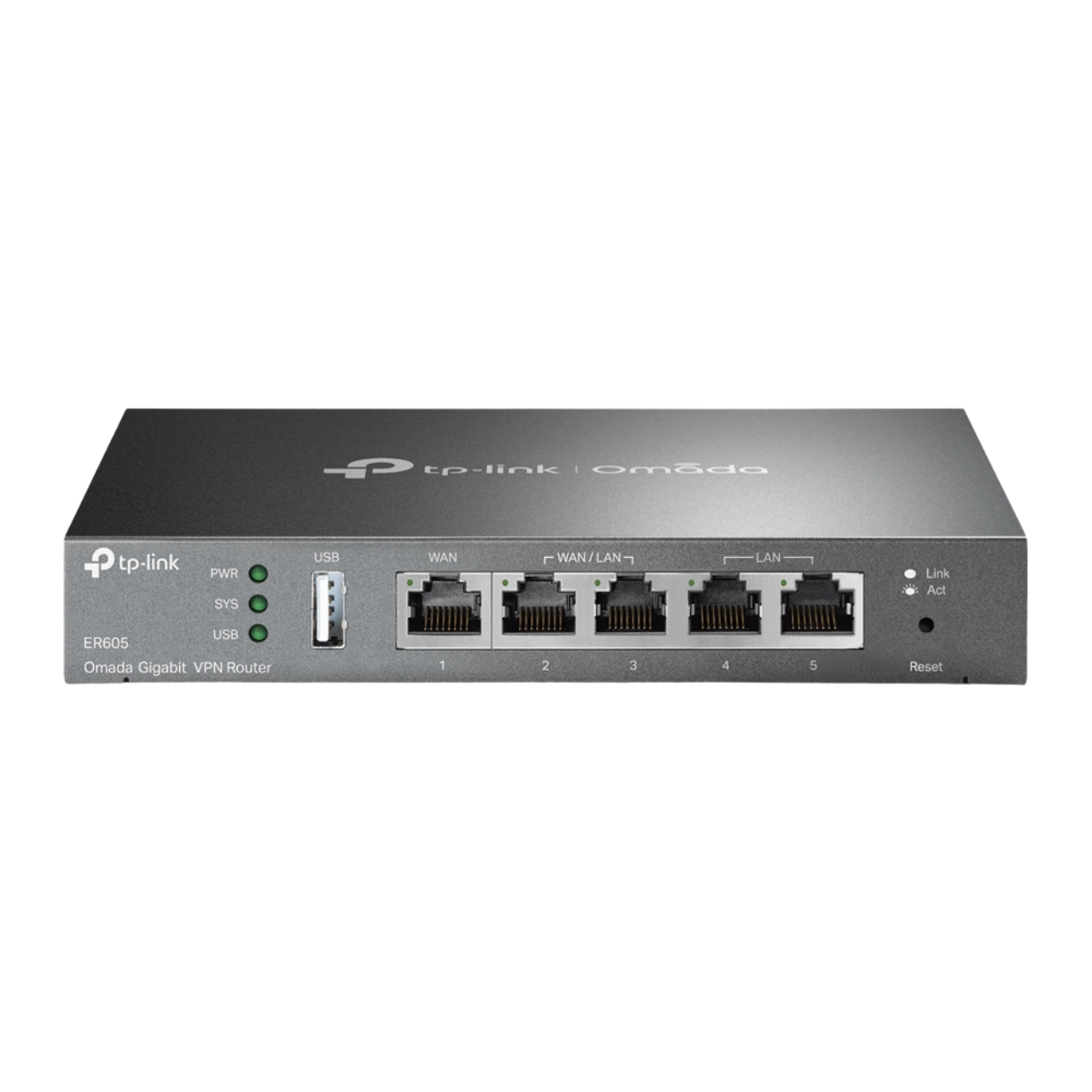

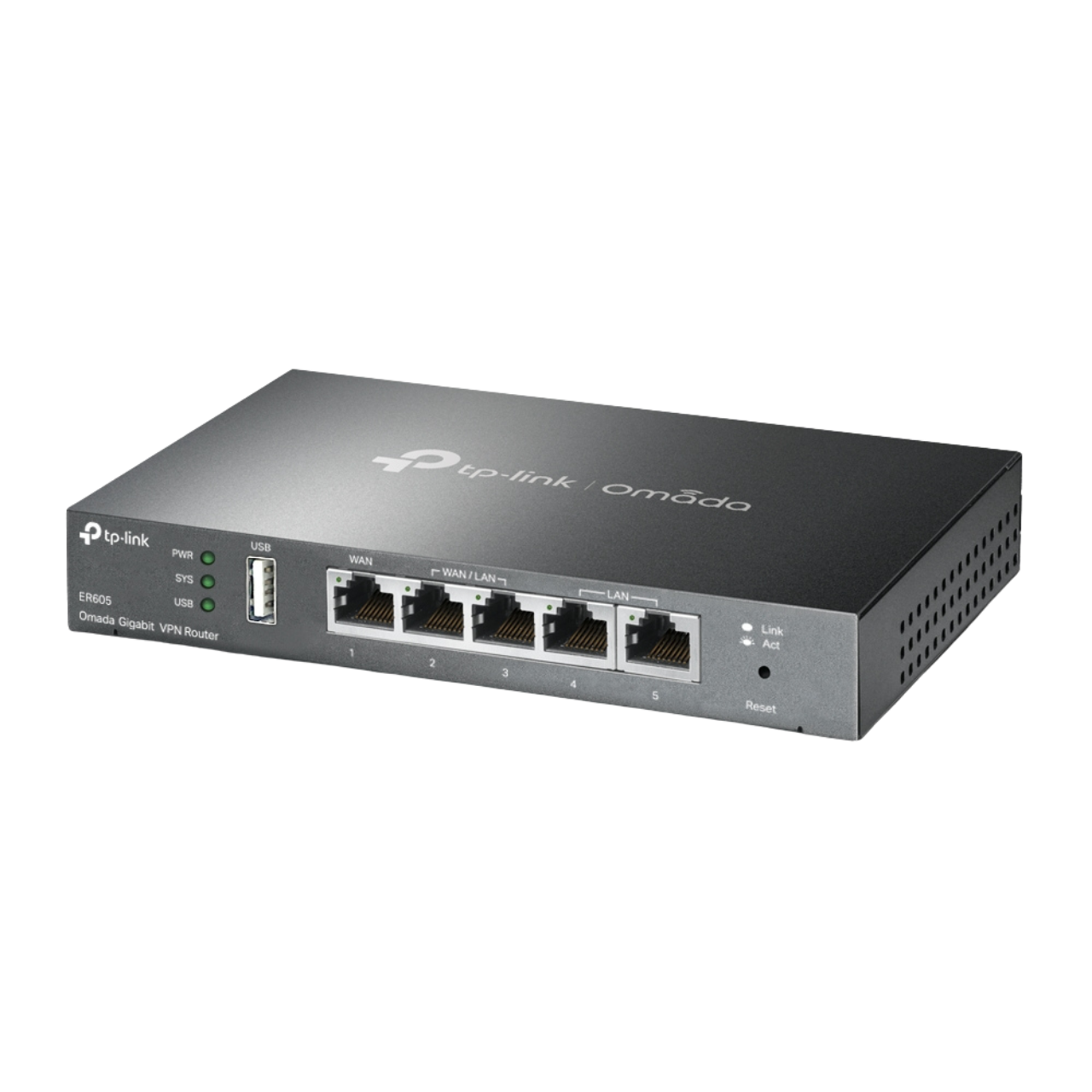

- Ethernet Ports: 1 Gigabit WAN port, 2 Gigabit LAN ports, and 2 configurable Gigabit WAN/LAN ports
- USB Port: 1 USB 2.0 port for 4G/3G modem backup
- Console Access: RJ45 console and Micro‑USB console ports
VPN Capability
- VPN Types Supported: IPsec, PPTP, L2TP, and OpenVPN
- IPsec VPN Support: Up to 20 IPsec VPN tunnels
- Remote VPN Support: Supports secure client‑to‑site and site‑to‑site VPN connections
Network Features
- WAN Connection Types: Static IP, Dynamic IP, PPPoE, PPTP, L2TP, and mobile broadband backup
- VLAN Support: 802.1Q VLAN
- Load Balancing: Multi‑WAN load balancing and link failover
- Bandwidth Control: IP‑based bandwidth management
Security
- Firewall: Built‑in SPI firewall
- Protection: DoS attack defense and access control
- Encryption: Supports multiple VPN encryption standards for secure communication
Management
- Management Options: Web‑based management interface and Omada SDN centralized management
- Cloud Management: Supported via Omada Cloud Controller
- Mobile Management: Supported through Omada ecosystem
Hardware & Design
- Memory: 256 MB DDR RAM
- Storage: 128 MB NAND flash

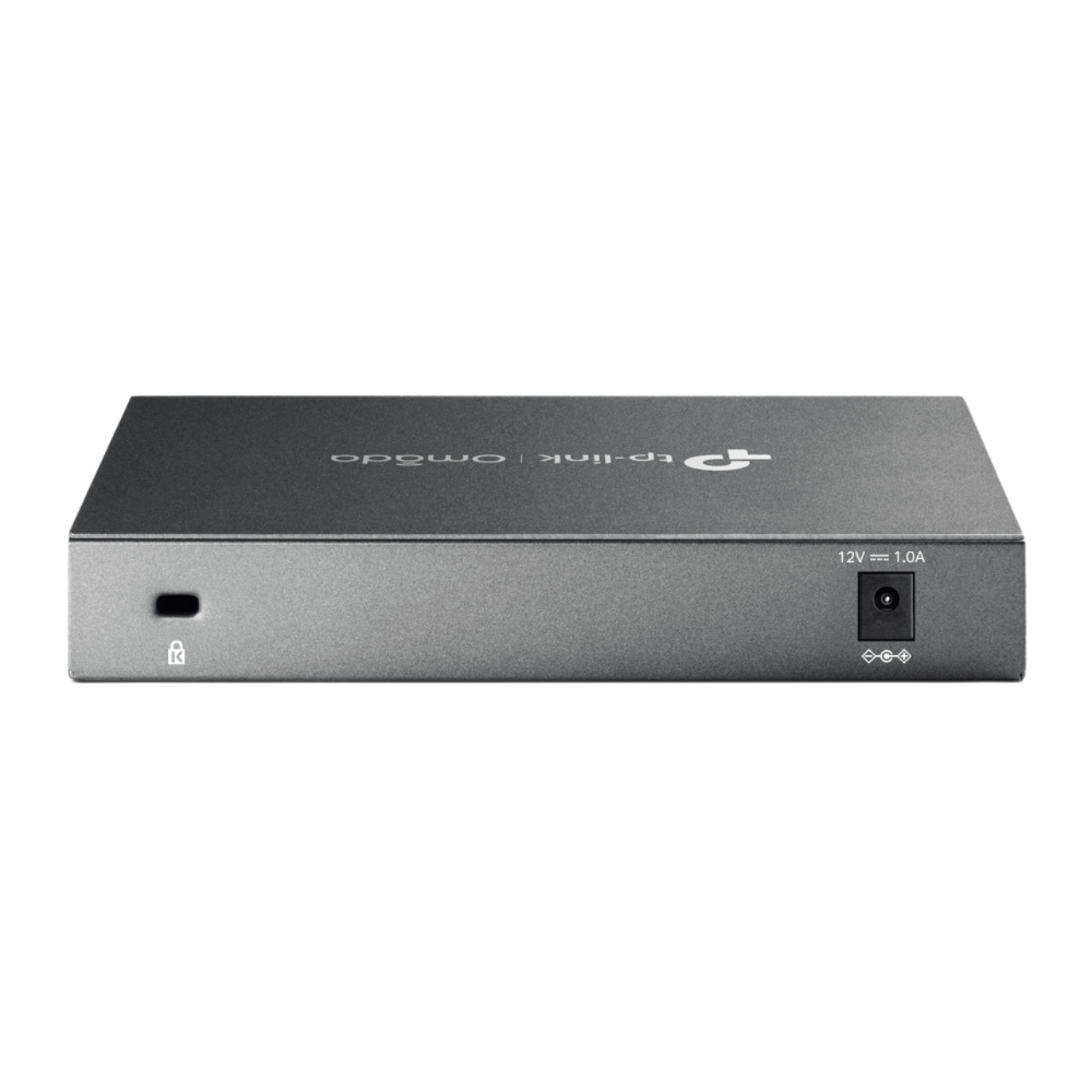

- Power Supply: External 12V DC adapter
Physical Dimensions
- Size (W × D × H): 6.2 × 4.0 × 1.0 inches (158 × 101 × 25 mm)
Included in the Box
-
ER605 Gigabit VPN Router
-
Power Adapter
-
RJ45 Ethernet Cable
-
Quick Installation Guide
Flexible Traffic Control
Bandwidth Control and Session Limit enables the administrators to flexibly manage network bandwidth to optimize usage.
Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL).
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of a mobile device.
The ER605 V2 also provides comprehensive security coverage with IPSec, PPTP, and L2TP VPN support over the IPSec/SSL protocols in addition to VLAN support and advanced firewall policies. The IPsec VPN has a maximum throughput of 248.04 Mb/s with the ESP-SHA2-AES256 authentication and encryption algorithm.
