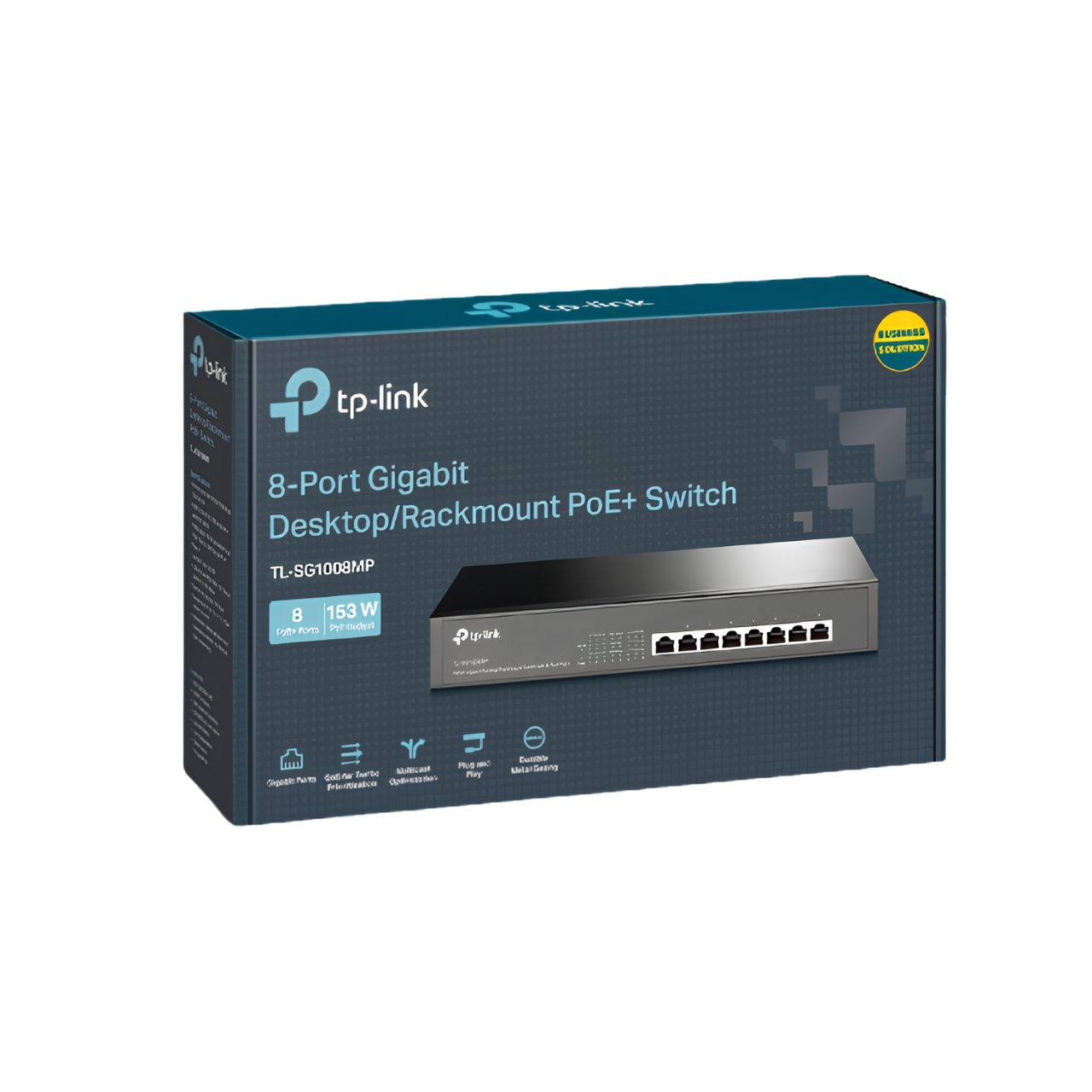

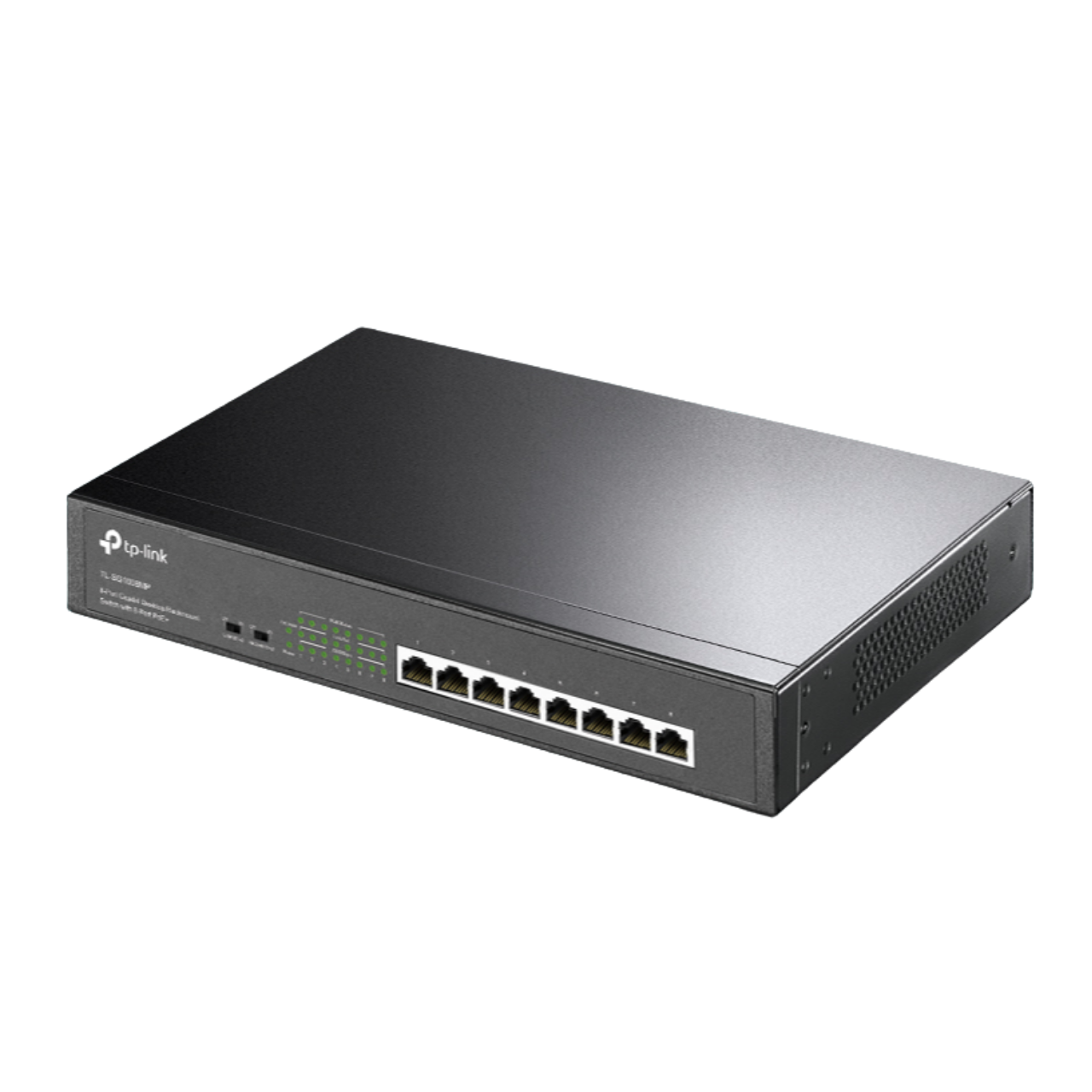

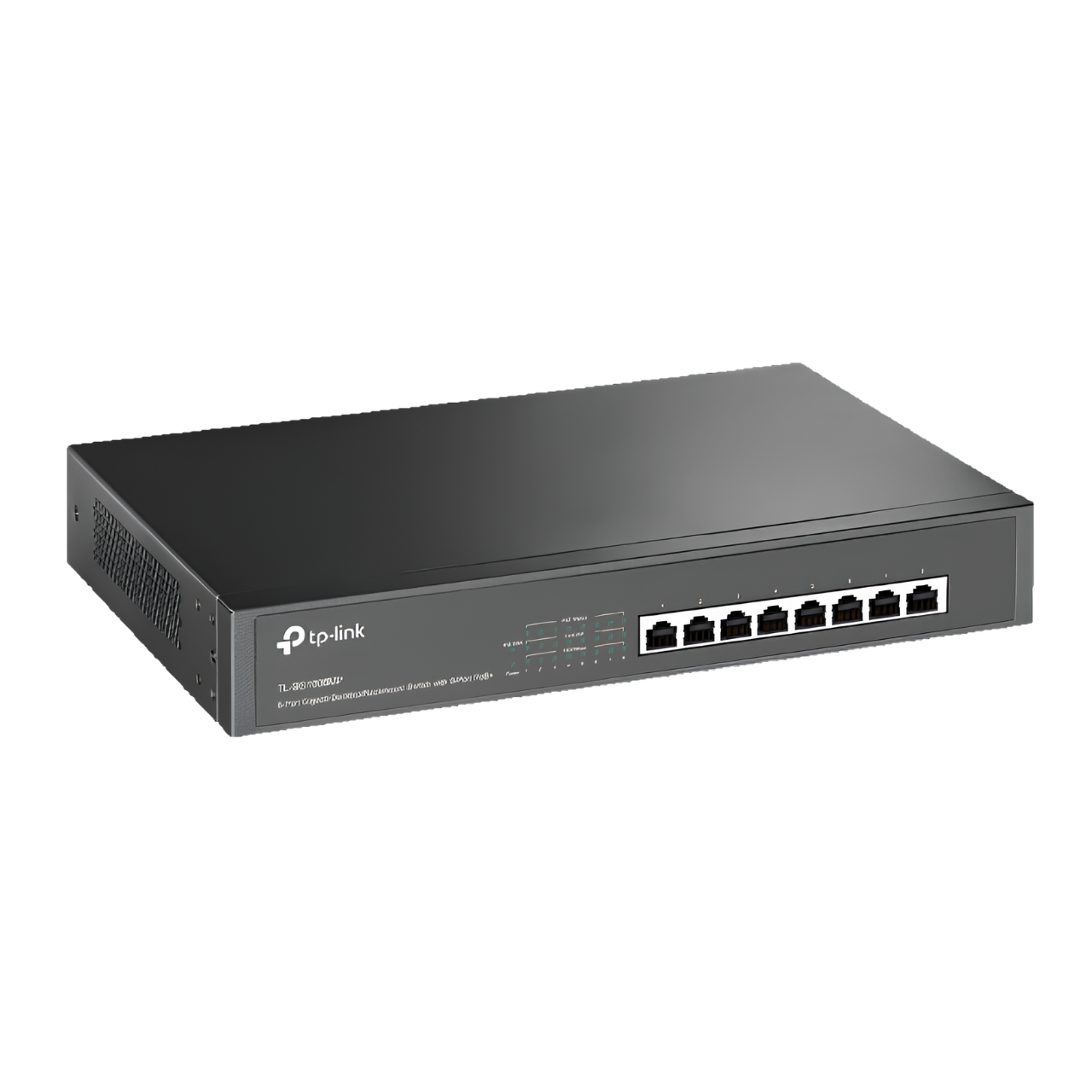

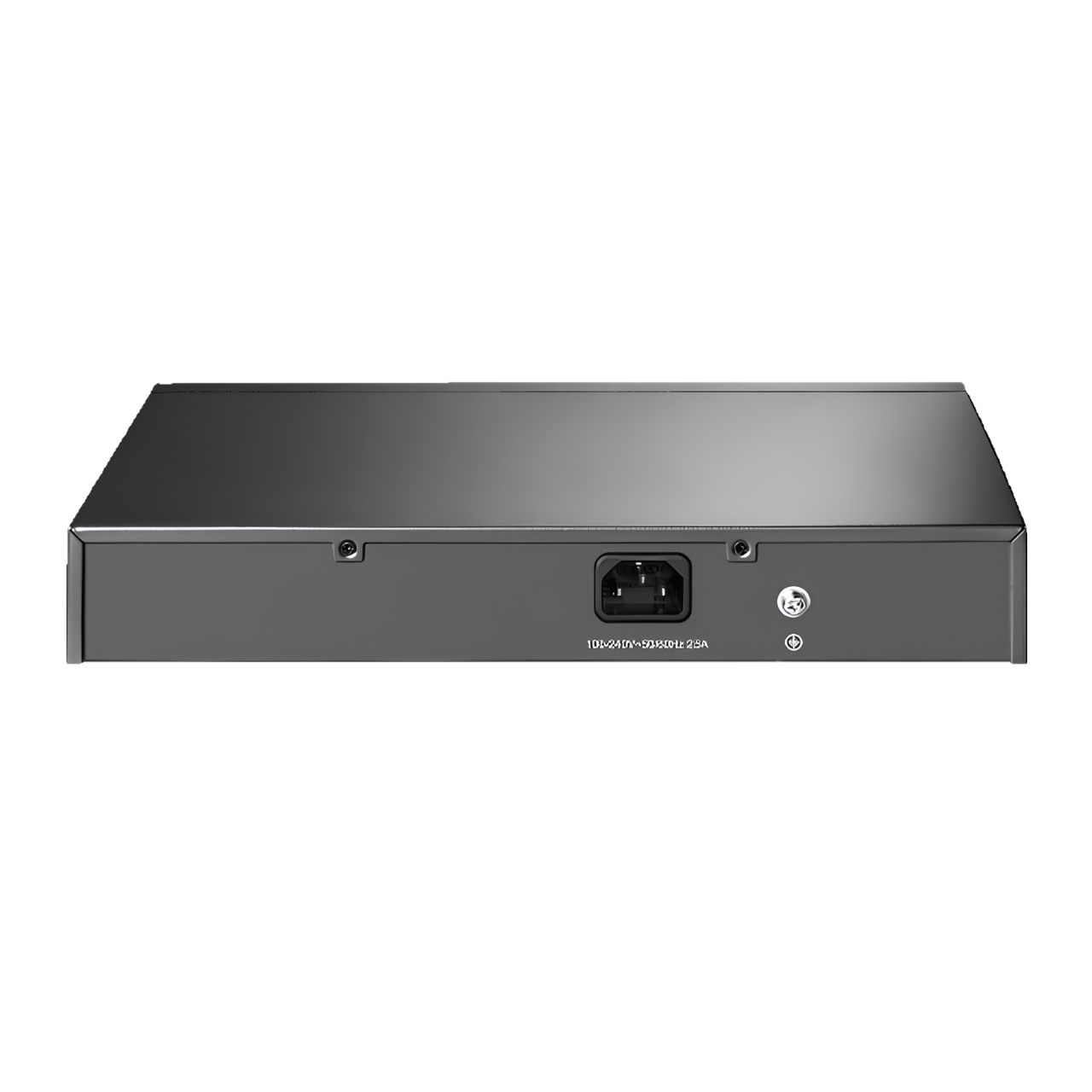

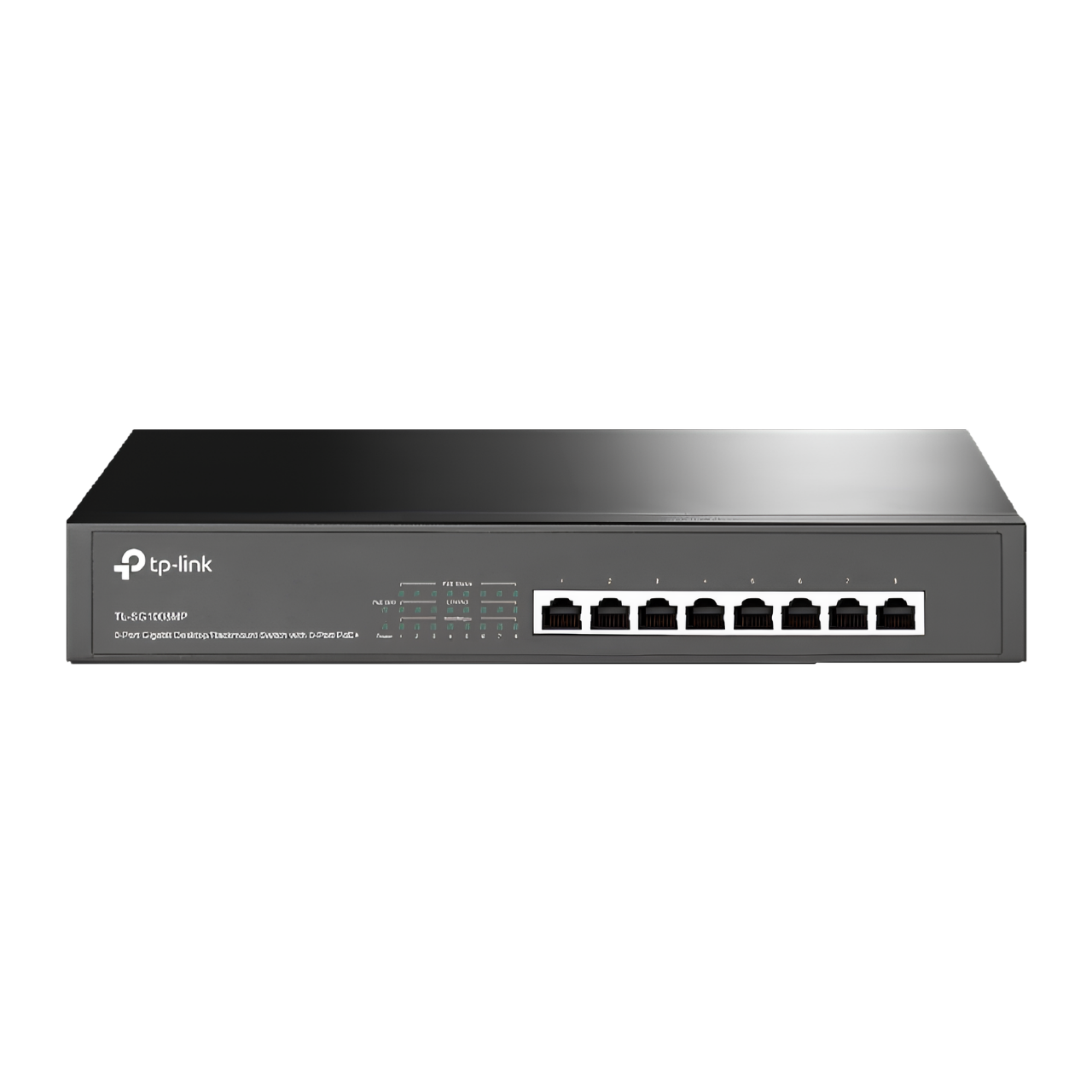

TP-Link 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ (TL-SG1008MP)
BZ$280.00
GST included, shipping calculated at checkout
TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ The TL-SG1008MP is an 8-port Gigabit desktop/rackmount switch with 8 PoE+ supported ports. It transfers data and power over a single cable, supports IEEE 802.3af/at compliant devices, provides a total 153W PoE power budget, and offers plug-and-play installation with no configuration required....
Return Policy
TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
The TL-SG1008MP is an 8-port Gigabit desktop/rackmount switch with 8 PoE+ supported ports. It transfers data and power over a single cable, supports IEEE 802.3af/at compliant devices, provides a total 153W PoE power budget, and offers plug-and-play installation with no configuration required.
8 Ports Gigabit RJ45
153W PoE Power Budget
Up to 250m Extend Mode
Product Model TL-SG1008MP V4
Product Type 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
Interface 8× 10/100/1000Mbps RJ45 Ports, Auto Negotiation, Auto MDI/MDIX
PoE Ports 8× PoE+ Ports, IEEE 802.3af/at Compliant
PoE Power Budget 153W Total, Up to 30W Per Port
Extend Mode Ports 1–2, Up to 250m PoE Power Supply and Data Transmission
Switching Capacity 16Gbps
Packet Forwarding Rate 11.904 Mpps
MAC Address Table 4K
Buffer Size 1.5Mbits
Jumbo Frame 16 KB
Fan Quantity 1
Power Supply 100–240VAC, 50/60Hz
Advanced Features Priority Function, PoE Auto Recovery, MAC Address Auto-Learning and Auto-Aging, IEEE 802.3x Flow Control, Backpressure, Extend Mode Button
Transmission Method Store-And-Forward
Mounting Desktop / Rack Mountable
Dimensions 11.6 × 7.1 × 1.7 in. / 294 × 180 × 44 mm
Max Power Consumption 8.77W no PD connected; 172.49W with 153W PD connected
Max Heat Dissipation 29.91 BTU/h no PD connected; 588.19 BTU/h with 153W PD connected
Certification FCC, CE, RoHS
Package Contents TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
Dedicated PoE+ Switching
8 PoE+ ports support up to 30W per port with a total 153W PoE power budget for devices such as IP cameras, access points, and IP phones.
PoE Auto Recovery
Automatically detects and reboots dropped or unresponsive PoE-powered devices to help maintain stable operation.
Plug and Play Design
Simple plug-and-play setup requires no configuration, with desktop and rack-mountable installation support.
