TP-Link AC750 Wi-Fi Range Extender (RE205)
Return Policy

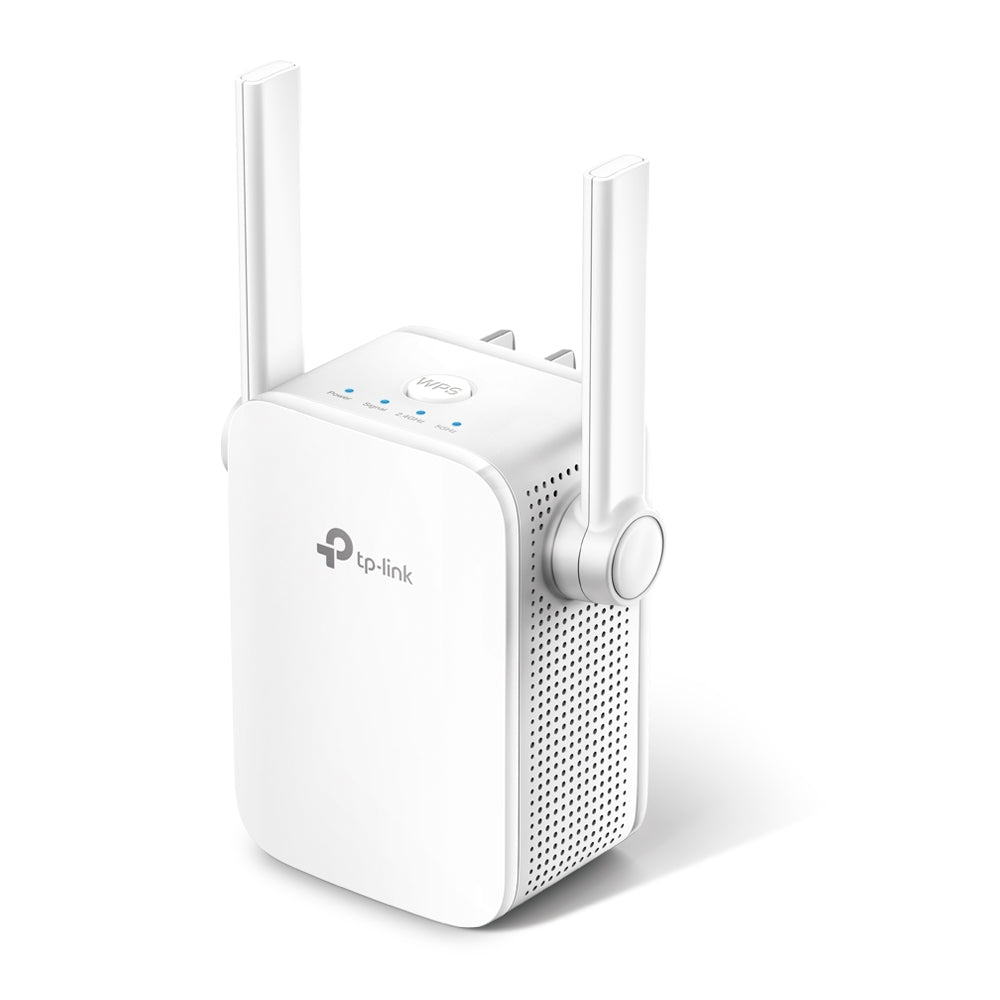

TP-Link AC750 Wi-Fi Range Extender
Easily Expand Your Wi-Fi Coverage
The RE205 Range Extender connects to your Wi-Fi router wirelessly, strengthening and expanding its signal into areas it can't reach on its own, while reducing signal interference to ensure reliable Wi-Fi coverage throughout your home or office.
High-Speed Dual-Band Wi-Fi for Better Connections
The RE205 lets you keep more devices connected at the same time with its 2.4 GHz 300 Mbps and 5 GHz 433 Mbps dual bands. Use the 2.4 GHz band to send email and browse the web, and the 5 GHz band for gaming and HD streaming.
Perfect Location at a Glimpse
An Intelligent Signal light helps you quickly find the best location to install the RE205.
Compact Wall-Mount Design
Miniature size and wall-mounted design make it easy to deploy and move flexibly
Built-In Access Point Mode

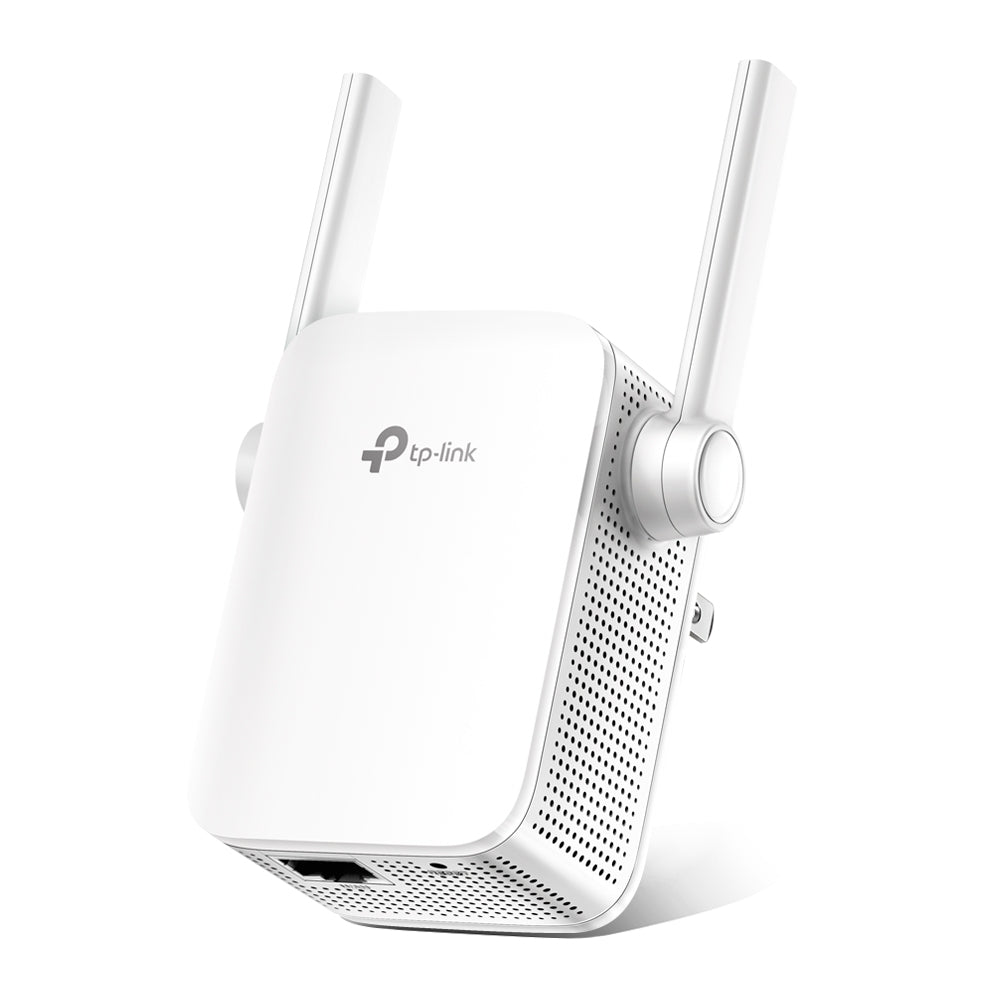

The RE205 is more than a wireless range extender. Simply plug the Ethernet cable into its Ethernet port to easily turn your wired internet connection into a dual band wireless access point.
Easily Management and Remote Control
The RE205 works with all Wi-Fi routers. You can use TP-Link's free Tether app to set up the range extender from any Android or iOS device in minutes. This feature-rich phone app allows you to enjoy not only hassle-free installation, but also access to advanced network management, all at your fingertips.
Specifications
Hardware Features:
- Standards and Protocols: IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b
- Plug Type: US
- Interface: 1 x 10/100Mbps Ethernet Port (RJ45)
- Button: WPS Button, Reset Button
- Input Power: 100-240V~50/60Hz
- Max. Power Consumption: 7.3W (max power consumption)
- Dimensions (W x D x H): 3.1 x 3.0 x 3.0 in. (80 x 78 x 77 mm)
-
Antenna: 2 x external
Others:
- Certification: FCC, RoHS
-
Package Content:
- AC750 Wi-Fi Range Extender RE205
- Quick Installation Guide
- Box Dimensions (W x D x H): 6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95 mm)
-
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Wireless Features:
- Frequency: 2.4GHz & 5GHz (11ac)
-
Signal Rate:
- 5GHz: Up to 433Mbps
- 2.4GHz: Up to 300Mbps
-
Reception Sensitivity:
-
5GHz:
- 11a 6Mbps: -94dBm@10% PER
- 11a 54Mbps: -77dBm@10% PER
- 11ac HT20: -69dBm@10% PER
- 11ac HT40: -66dBm@10% PER
- 11ac HT80: -63dBm@10% PER
-
2.4GHz:
- 11g 54Mbps: -79dBm@10% PER
- 11n HT20: -77dBm@10% PER
- 11n HT40: -74dBm@10% PER
-
5GHz:
Wireless Modes:
- Range Extender/Access Point
Environment:
- Operating Temperature: 0°C
40°C (32°F104°F) - Storage Temperature: -40°C
70°C (-40°F158°F) - Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Transmission Power:
- <19.5dBm (2.4GHz)
- <19.5dBm (5GHz)
Wireless Functions:
- Wireless Statistic
- Concurrent Mode boosts both 2.4G/5G Wi-Fi bands
- Access Control
- LED Control
- Domain Login Function
Wireless Security:
- 64/128-bit WEP
- WPA-PSK / WPA2-PSK
