TP-Link 5GHz AC 867Mbps 23dBi Outdoor CPE (CPE710)
BZ$202.50
GST included, shipping calculated at checkout
TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE The CPE710 is a 5GHz AC outdoor CPE designed for long-distance wireless networking. It features a 23dBi high-gain directional 2×2 MIMO antenna, up to 867Mbps wireless data rate, IP65 weatherproof protection, centralized Pharos Control management, and Passive PoE support for flexible outdoor...
Return Policy
TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE

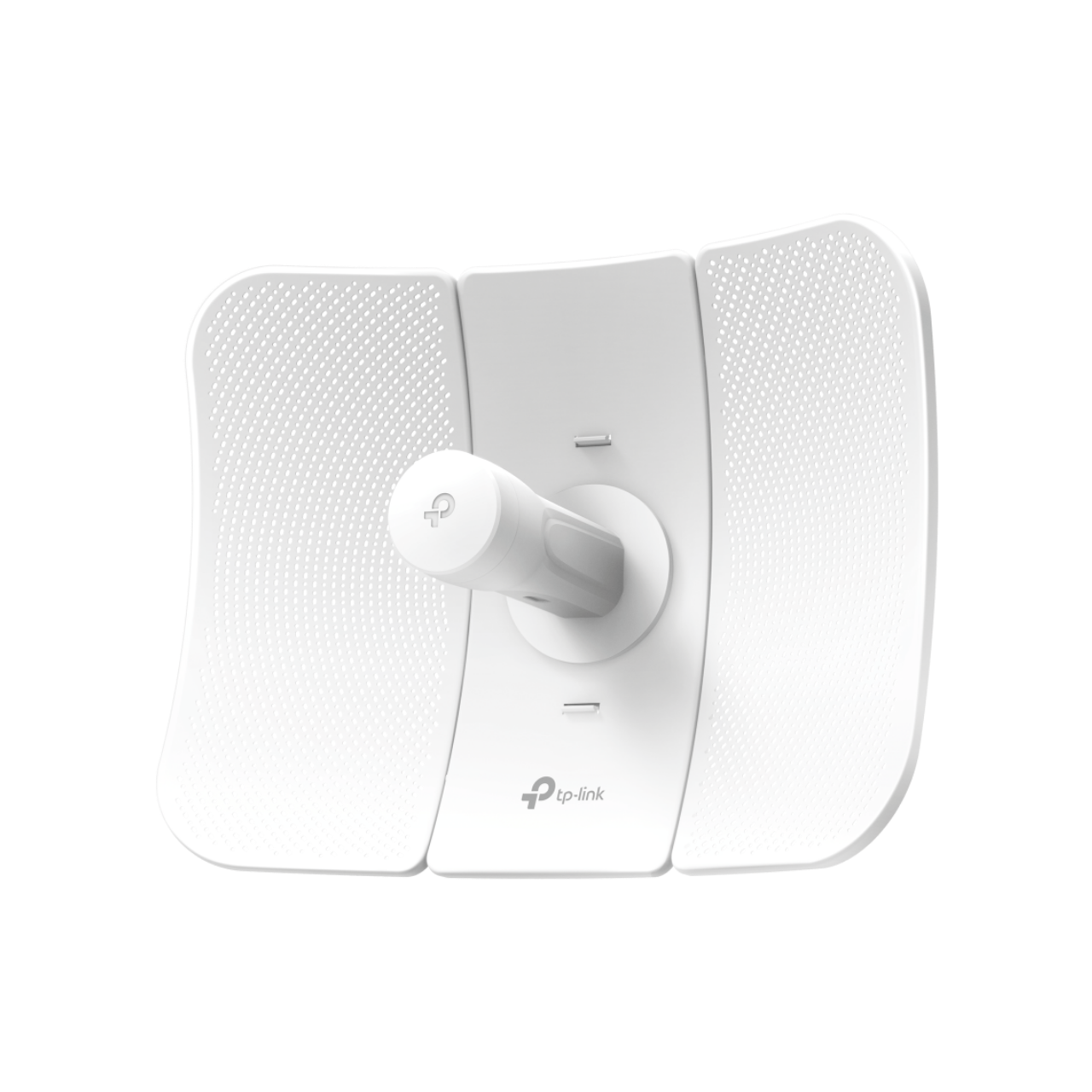

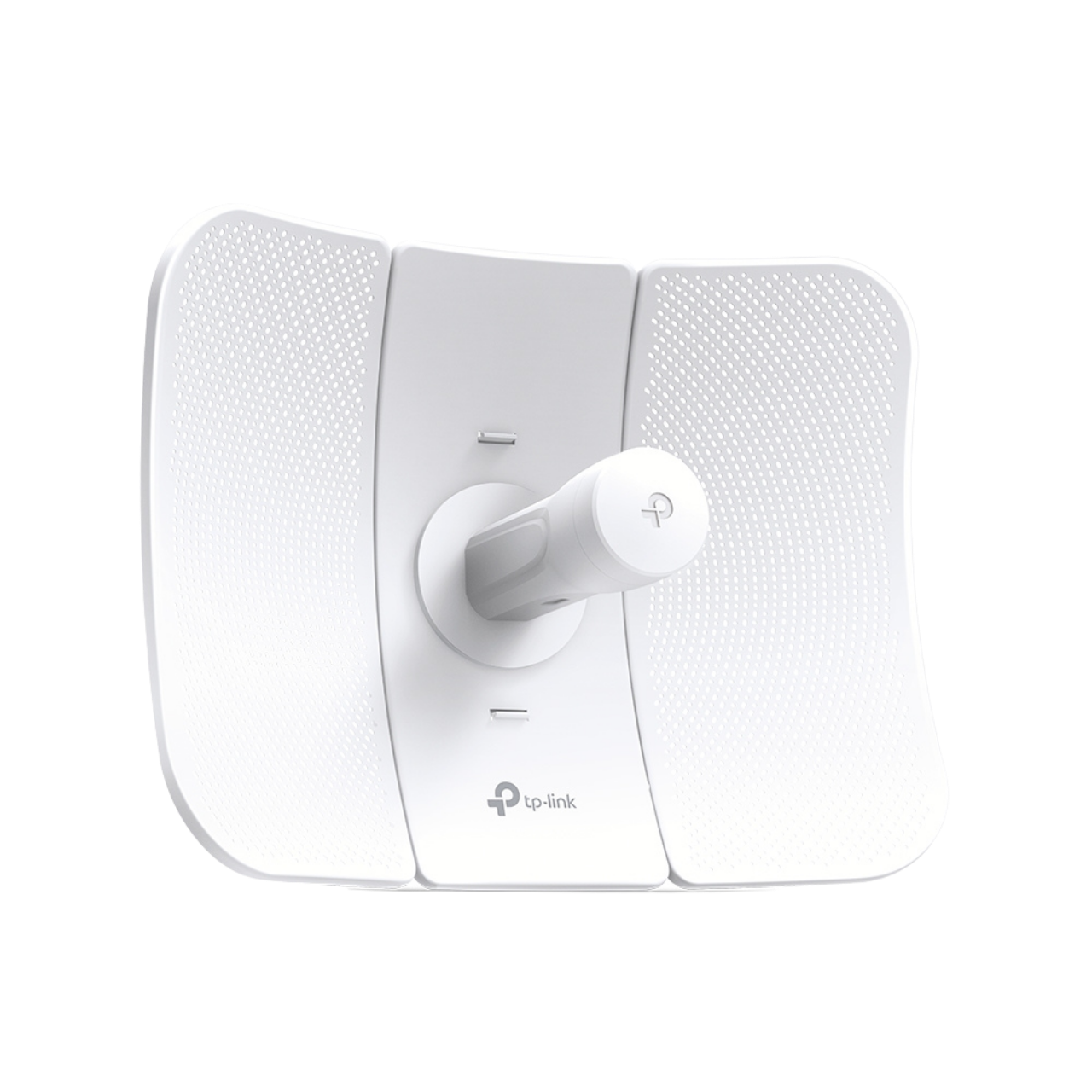

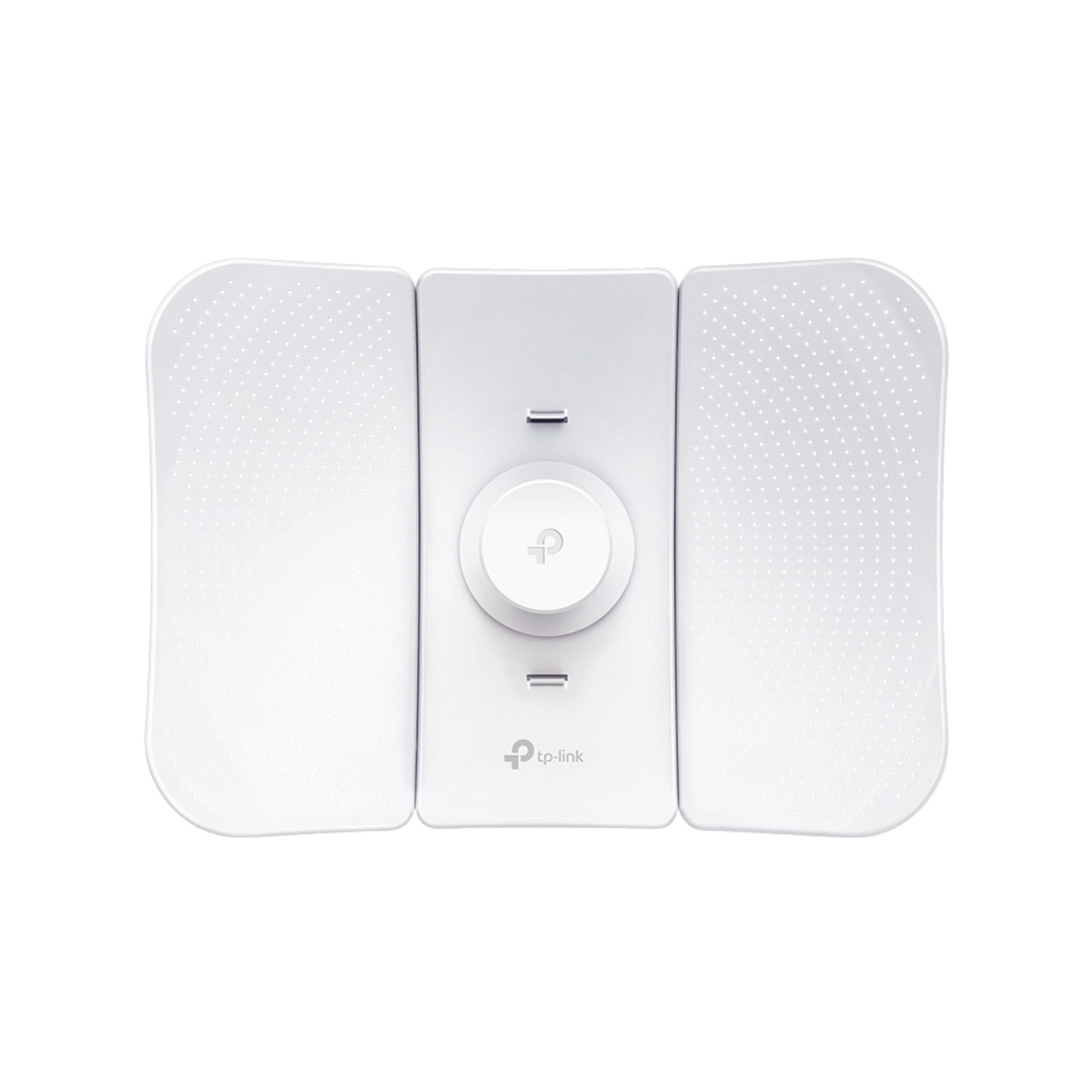

The CPE710 is a 5GHz AC outdoor CPE designed for long-distance wireless networking. It features a 23dBi high-gain directional 2×2 MIMO antenna, up to 867Mbps wireless data rate, IP65 weatherproof protection, centralized Pharos Control management, and Passive PoE support for flexible outdoor deployment.
867Mbps 5GHz AC Wireless
23dBi Directional Antenna
IP65 Weatherproof Design
Product Model CPE710
Product Type 5GHz AC 867Mbps 23dBi Outdoor CPE
Wireless Standards IEEE 802.11a/n/ac
Wireless Speeds Up to 867 Mbps at 80 MHz, up to 400 Mbps at 40 MHz, up to 173.4 Mbps at 20 MHz
Frequency 5.15–5.85 GHz
Antenna 23 dBi High-Gain Directional 2×2 MIMO Antenna
Antenna Beamwidth 9° Azimuth / 7° Elevation
Processor Qualcomm 750MHz CPU, MIPS 74Kc
Memory 128 MB DDR2 RAM, 16 MB Flash
Interface 1× 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE), 1× Reset Button
Power Supply Passive Power over Ethernet via LAN, 16–27V DC
Max Power Consumption 7.3 Watts Max
Protection 15kV ESD Protection, 6kV Lightning Protection
Enclosure Outdoor PC stabilized plastic, IP65 water and dust proof design
Management Pharos Control, HTTP/HTTPS Web-Based Management, SNMP Agent, SSH Server
Operation Modes AP / Client / AP Client Router (WISP Client) / AP Router Mode
Dimensions 14.4 × 11.0 × 8.1 in. / 366 × 280 × 207 mm
Package Contents Outdoor Wireless CPE, 24V 0.5A Passive PoE Adapter, Pole Mounting Kits, AC Power Cord, Installation Guide
Long-Distance Wireless
23dBi high-gain directional antenna provides excellent beam directivity, improved latency, and noise immunity.
Outdoor Protection
IP65 weatherproof enclosure with 15kV ESD and 6kV lightning protection supports all-weather outdoor use.
Flexible Installation

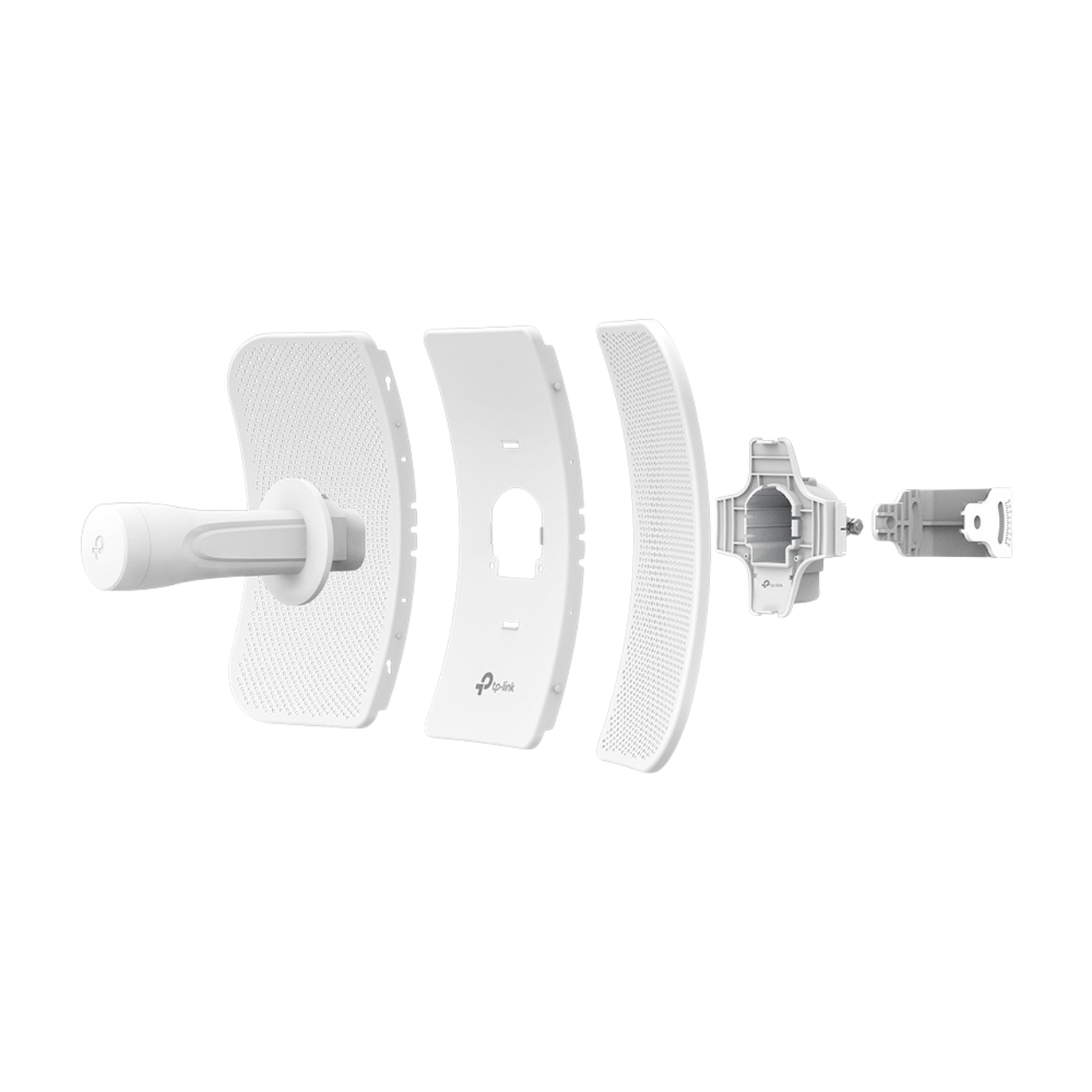

Snap-lock parts, pole mount kits, three-axis alignment, and Passive PoE support simplify outdoor deployment.
