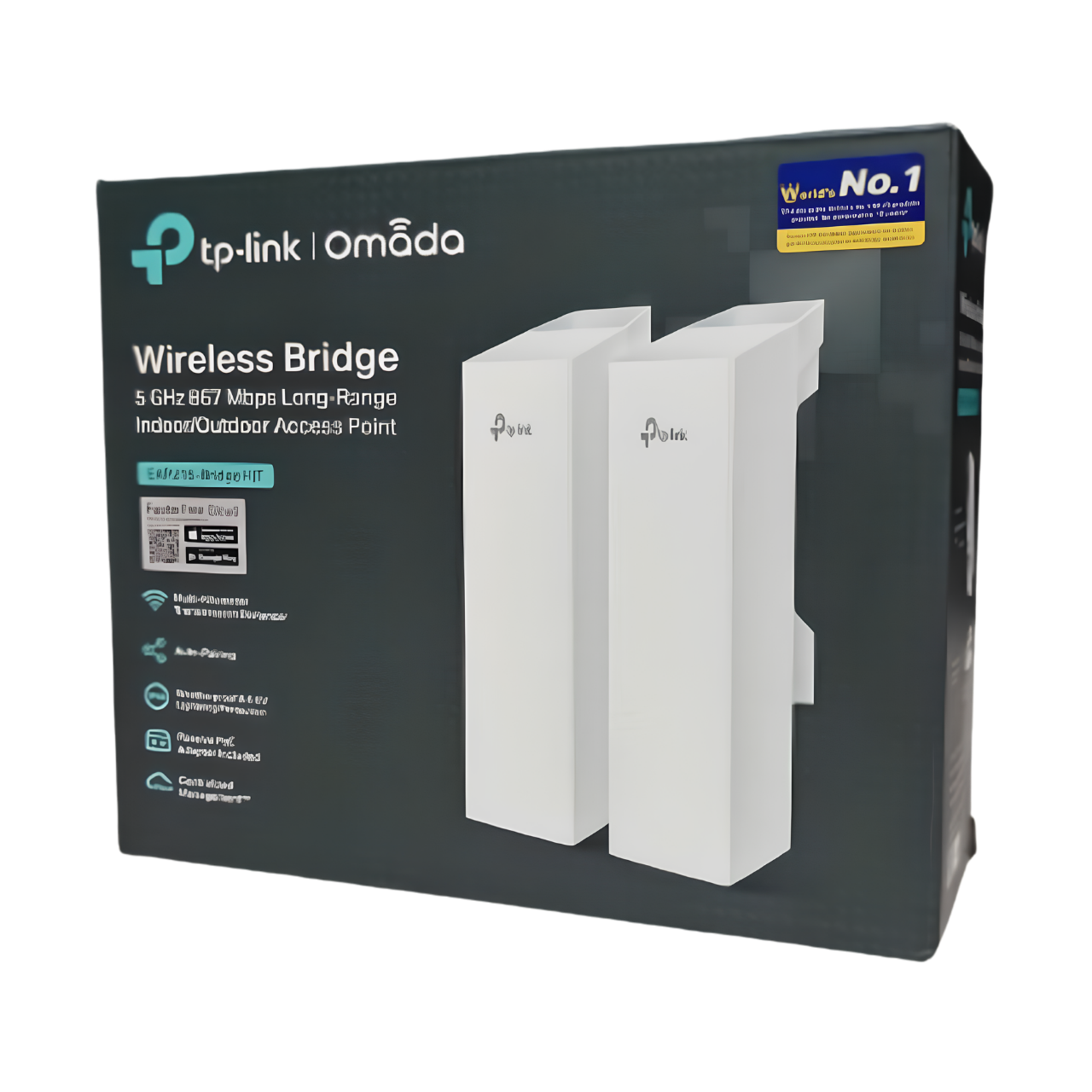

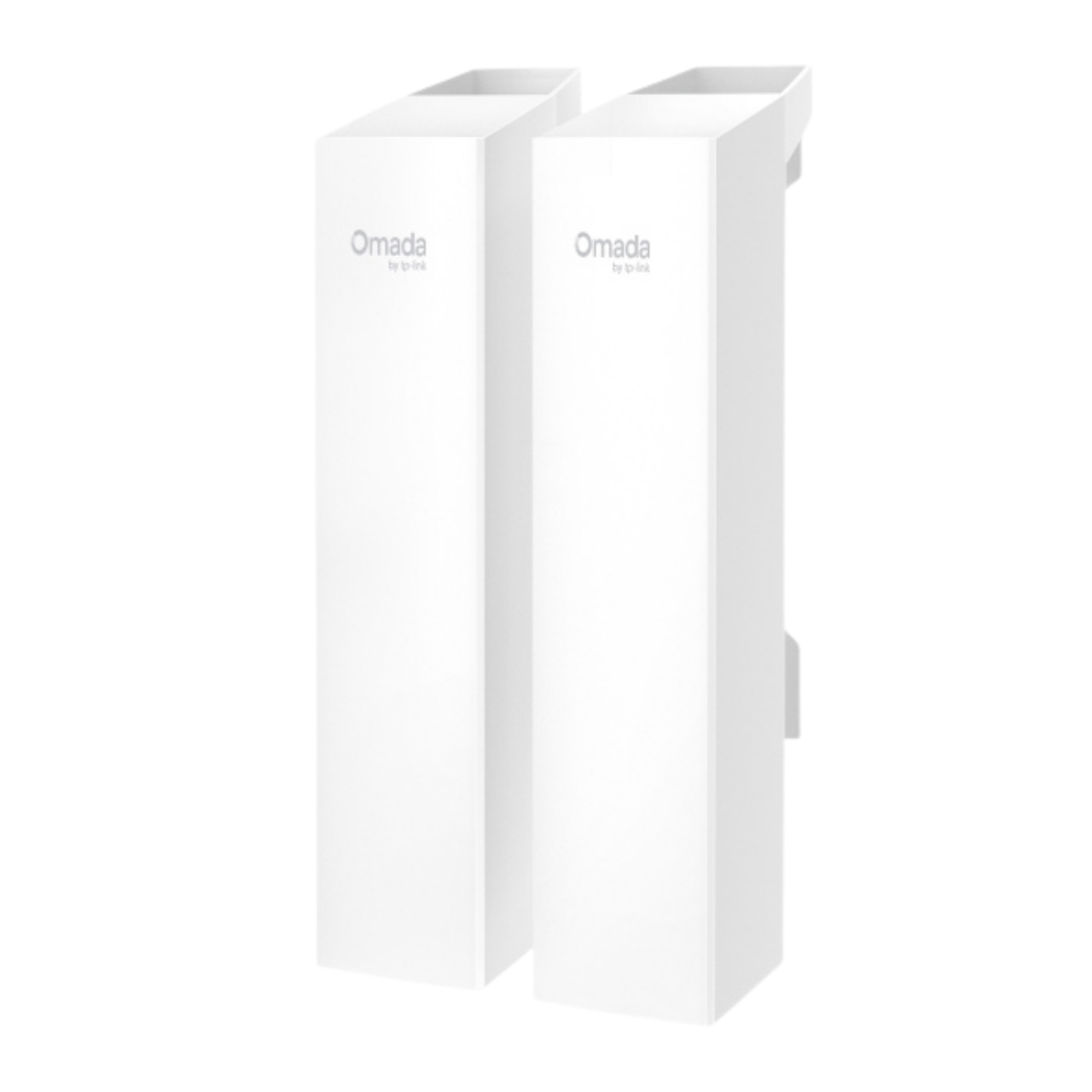

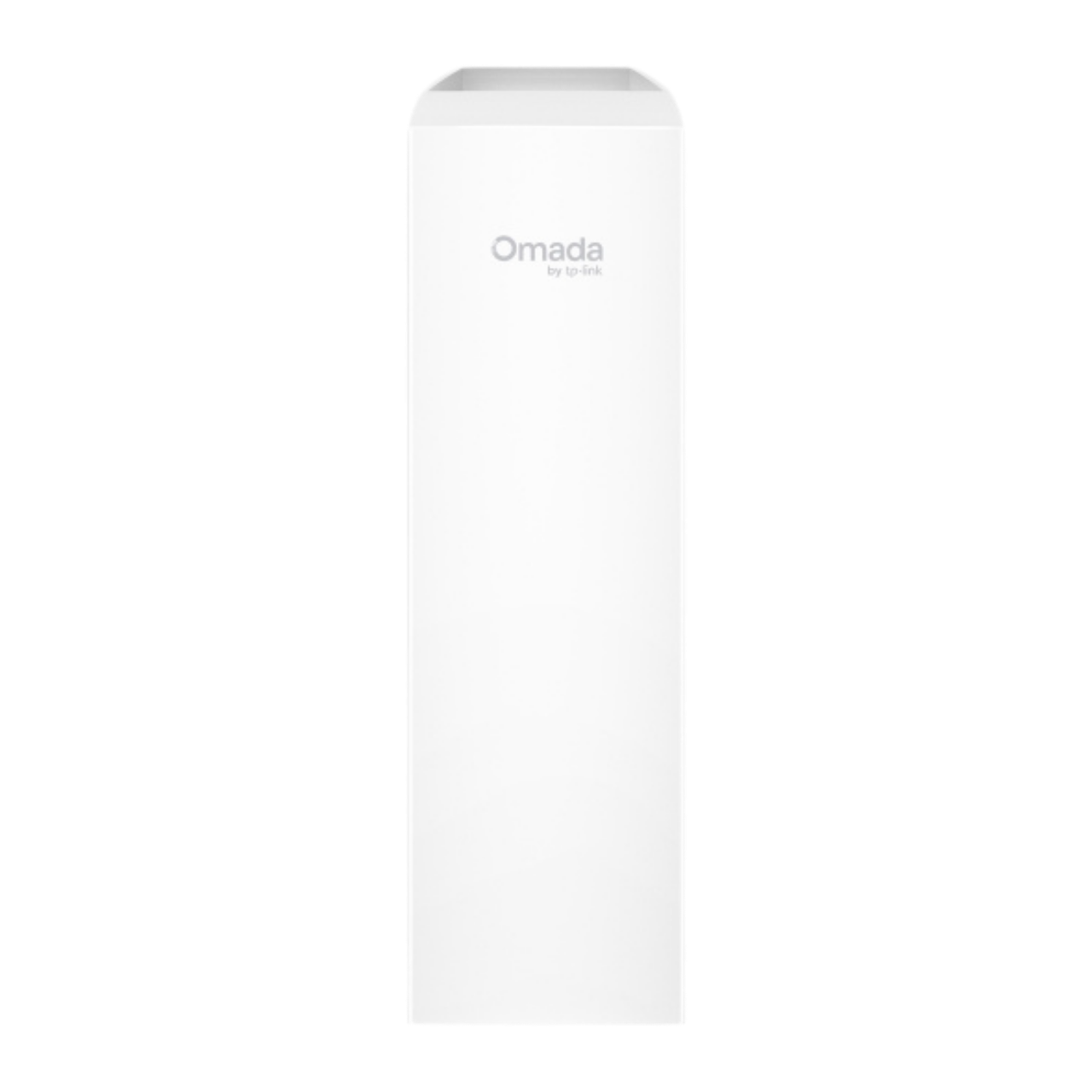

TP-Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge (EAP215)
BZ$425.00
GST included, shipping calculated at checkout
Omada EAP215-Bridge KIT 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge The EAP215-Bridge KIT is a long-range indoor/outdoor wireless bridge designed for PtP and PtMP connectivity. It supports up to 3.1 mi / 5 km transmission distance, 5GHz 867Mbps wireless performance, Omada SmartBridging, app-guided alignment, multi-bridge auto-pairing, three Gigabit Ethernet ports, versatile...
Return Policy
Omada EAP215-Bridge KIT 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge
The EAP215-Bridge KIT is a long-range indoor/outdoor wireless bridge designed for PtP and PtMP connectivity. It supports up to 3.1 mi / 5 km transmission distance, 5GHz 867Mbps wireless performance, Omada SmartBridging, app-guided alignment, multi-bridge auto-pairing, three Gigabit Ethernet ports, versatile power options, and centralized management through Web UI, app, or Omada SDN.
867Mbps 5GHz Wireless
3.1 mi / 5 km Transmission Distance
3× Gigabit Ethernet Ports
Product Model EAP215-Bridge KIT V3
Product Type Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge
Wireless Standards IEEE 802.11 a/n/ac
Frequency 5GHz
Signal Rate 5GHz: Up to 867 Mbps
Transmission Distance 5,000 m / 3.1 mi
Antenna Internal 2×2 Dual-Polarized Directional MIMO Antennas, 5GHz: 14.0 dBi
Antenna Coverage Horizontal: 43°, Vertical: 18°

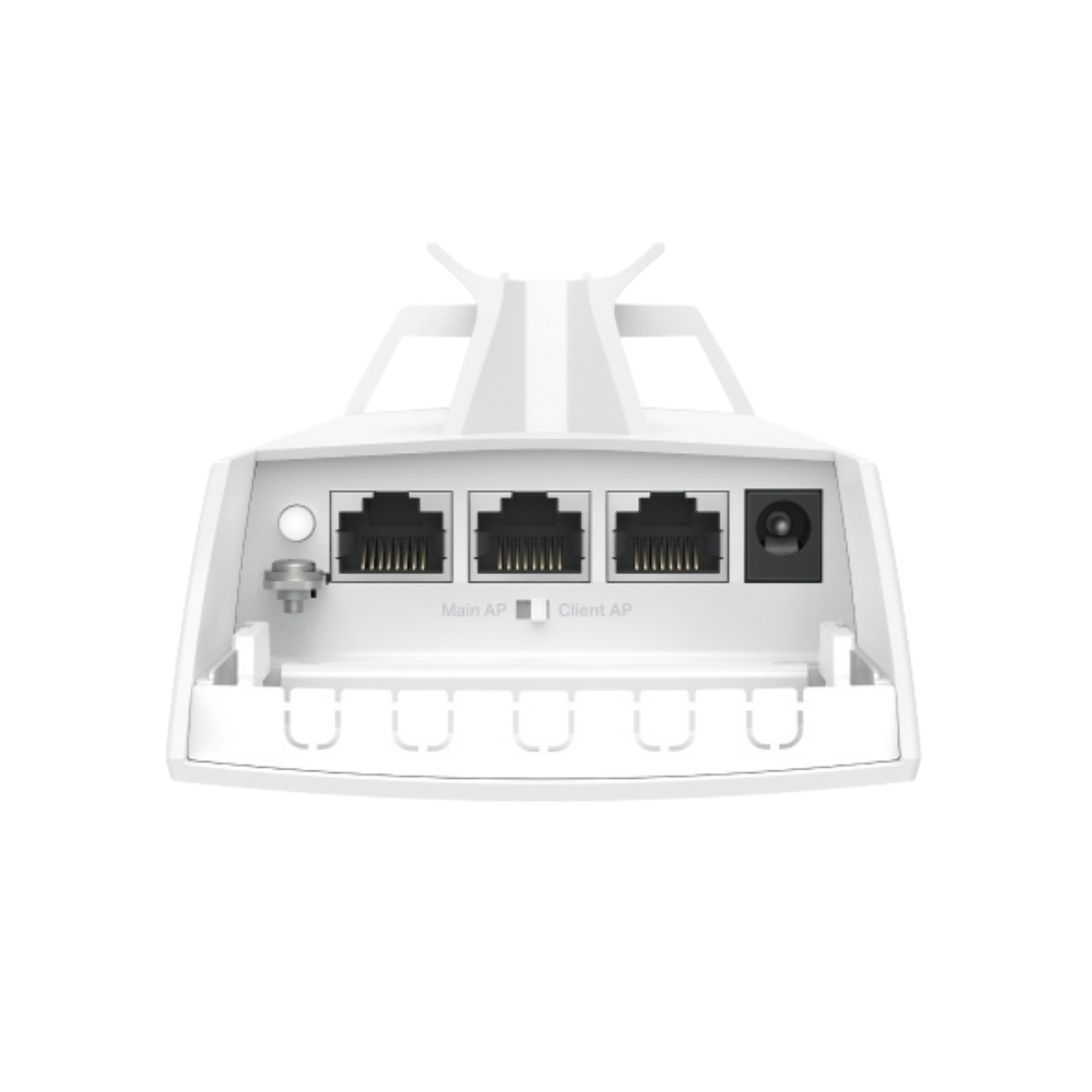

Interface 3× Gigabit Ethernet Ports
Buttons & Switches Reset Button, DIP Switch Role Switch
Power Supply 12V DC, 802.3af PoE, 24V Passive PoE
Max Power Consumption 11.5W
Wireless Functions MU-MIMO, Multiple SSIDs: 8, Wireless Statistics, Wireless Schedule, Reboot Schedule, RADIUS Accounting, Static IP/Dynamic IP, Rate Limit, Guest Network, Enable/Disable Wireless Radio, Enable/Disable SSID Broadcast
Wireless Security VLAN, Rogue AP Detection, MAC Filter up to 4,000, Wireless Encryption
Centralized Management Omada Central, Omada Hardware Controller, Omada Software Controller
Management Features Omada App, Web-Based Management, Cloud Access, SNMP, SSH, Email Alerts, LED ON/OFF Control, Zero-Touch Provisioning
Weatherproof Enclosure IP65
Lightning Protection Air Discharge: ±8kV, Contact Discharge: ±4kV, Common Mode 10/700: ±6kV
Operating Temperature -40°C–70°C / -40°F–158°F

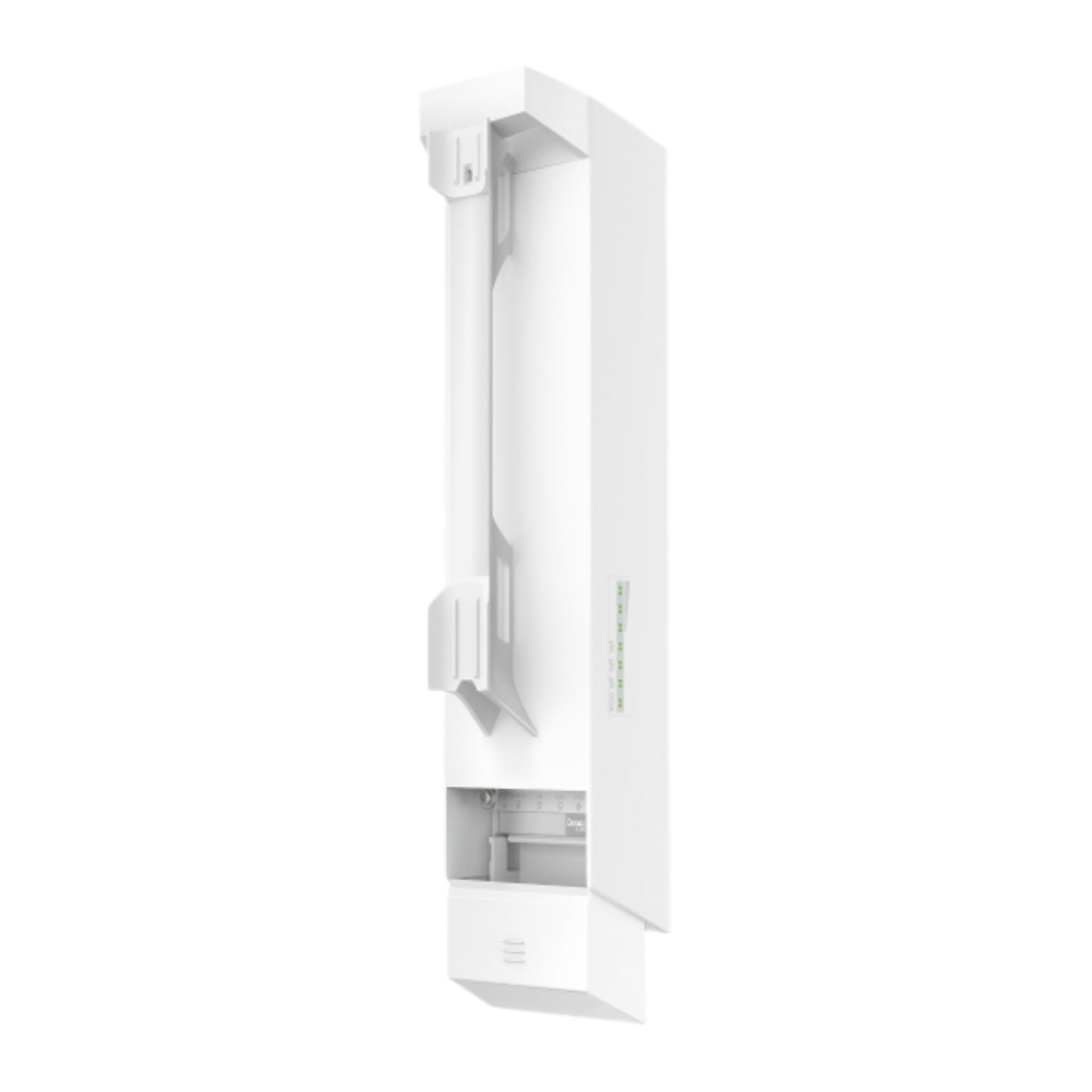

Mounting Pole and Wall Mounting, Pole Accessories Included
Dimensions 3.1 × 2.4 × 10.9 in. / 79 × 60 × 276 mm
Certification CE, FCC, RoHS
Package Content EAP215-Bridge KIT, Installation Guide, Mounting Kit
Long-Range Wireless Bridge
Supports up to 5 km / 3.1 mi Wi-Fi transmission for long-range PtP and PtMP bridge connections.
Omada SmartBridging
Preconfigured kit, auto-pairing, multi-bridge auto-pairing, and app-guided alignment simplify bridge setup.
Outdoor Ready Design
IP65 weatherproof enclosure, 6 kV lightning protection, and -40°C to 70°C operating range support tough outdoor use.
