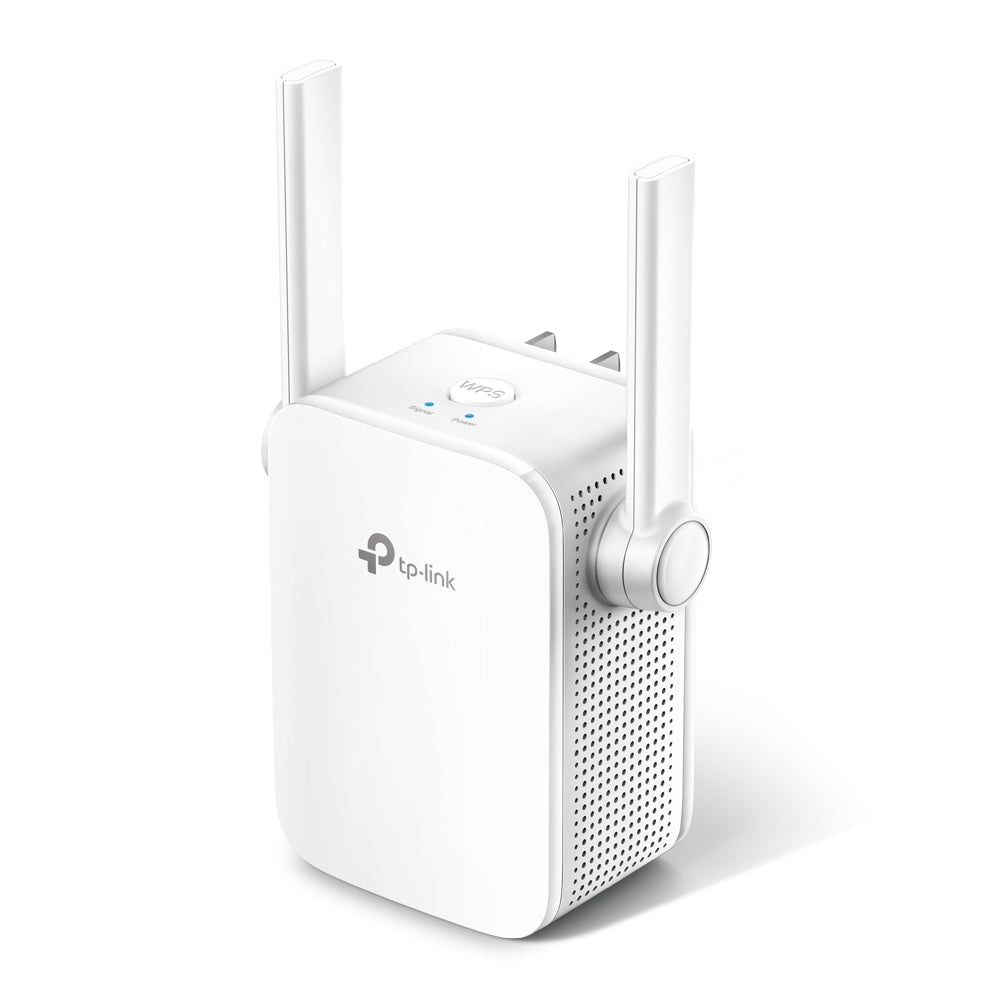

TP-Link 300Mbps Wi-Fi Range Extender (RE105)

Extended Wi-Fi Coverage

Featuring two powerful external antennas and 802.11n support, the RE105 plugs into a wall outlet to help increase your Wi-Fi coverage, transferring up to 300 Mb/s over the 2.4 GHz frequency when paired with a compatible router.

Efficient Wi-Fi

MU-MIMO technology allows the router to simultaneously send and receive data from multiple devices.

Access Point Mode

The TP-Link RE105 can be configured to work as a wireless access point when its 10/100 Mb/s Ethernet port is connected with a compatible network switch or router.

Compact Wall-Mount Design

Miniature size and wall-mounted design make it easy to deploy and move flexibly

Easy Configuration

Quickly set up and manage your network using the TP-Link Tether app. The app also allows you to monitor the state of the range extender. Alternatively, you can simply press the WPS buttons on the extender and a compatible router to pair them.

Network Security

Your network is secured with 64/128-bit WEP, WPA/WPA2, and WPA/WPA2-PSK encryptions.

Hardware Features:

• Plug Type: EU, UK, US
• Interface: 1 x 10/100M Ethernet Port (RJ45)
• Button: WPS Button, Reset Button
• Input Power: 100-240V~50/60Hz
• Max. Power Consumption: 3.6W
• Dimensions (W x D x H): 3.15 x 3.06 x 3.04 in. (80 x 77.8 x 77.3 mm)
• Antenna: 2 x external


Others:

• Certification: CE, RoHS
• Package Content:
  • 300Mbps Wi-Fi Range Extender RE105
  • Quick Installation Guide
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, Mac® OS, NetWare®, UNIX® or Linux.

Wireless Features:

• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency: 2.4~2.4835GHz
• Signal Rate:
  • 11n: Up to 300Mbps (dynamic)
  • 11g: Up to 54Mbps (dynamic)
  • 11b: Up to 11Mbps (dynamic)
• Reception Sensitivity:
  • 270M: <-68dBm@10% PER
  • 130M: <-68dBm@10% PER
  • 108M: <-68dBm@10% PER
  • 54M: <-68dBm@10% PER
  • 11M: <-68dBm@8% PER
  • 6M: <-68dBm@10% PER
  • 1M: <-68dBm@8% PER
• Wireless Modes: Range Extender/Access Point

Environment:

• Operating Temperature: 0°C40°C (32°F104°F)
• Storage Temperature: -40°C70°C (-40°F158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing


Transmission Power:

• < 20 dBm (EIRP)

Wireless Functions:

• Wireless MAC Address Filtering
• Domain Login Function
• Transmit Power Control


Wireless Security:

• 64/128/152-bit WEP
• WPA-PSK / WPA2-PSK
