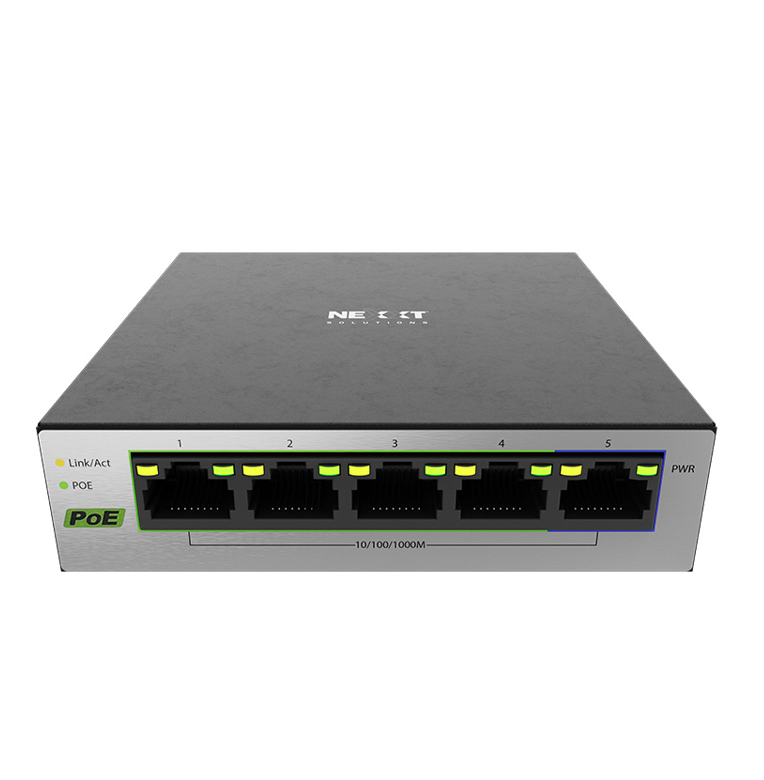

Nexxt VertexV501P 5-Port Professional PoE+ Gigabit Desktop Switch (NSW-V501P)
BZ$125.00
GST included, shipping calculated at checkout
Nexxt Professional 5-port PoE+ Gigabit desktop switch, 10/100/1000 65W Max The Vertex V501P is an unmanaged compact switch especially designed for small business environments that require advanced internet capabilities. Upgrade your local wired network with our 5-Port Gigabit Desktop PoE Switch, featuring automatic polarity switching function to reduce...
Return Policy
Nexxt Professional 5-port PoE+ Gigabit desktop switch, 10/100/1000 65W Max
The Vertex V501P is an unmanaged compact switch especially designed for small business environments that require advanced internet capabilities.
Upgrade your local wired network with our 5-Port Gigabit Desktop PoE Switch, featuring automatic polarity switching function to reduce congestion and redundant network communication.
Technical Specifications
Interface & Standards:
-
Ports:
- 5× 10/100/1000 Mbps RJ45 PoE+ Ports (Ports 1–8)
- 1× 10/100/1000 Mbps RJ45 Uplink Port (Port 9)
-
Standards Supported: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3at/af
Power & Consumption:
- AC Input: 100–240V AC, 50/60Hz
- DC Output: 55V DC / 1.3A
- Power Consumption: 71.5W
-
Power Adapter Cord Length: 3.93 ft (1.2 m)
Network Media & Data Rate:
- 10BASE-T: UTP Cat 3/4/5 or STP (max 100m)
- 100BASE-TX: UTP Cat 5/5e or STP (max 100m)
- 1000BASE-T: UTP Cat 5/5e/6 or STP (max 100m)
- Data Rate: 18 Gbps
-
Forwarding Rate: 13.392 Mpps
Environment:
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
- Operating Humidity: 10% to 90% (non-condensing)
-
Storage Humidity: 5% to 90% (non-condensing)
VLAN & LED Indicators:
- VLAN: Not Applicable
-
LED Indicators: 1× Green LED = Power, 4× Orange LEDs = 10/100/1000M LINK/ACT, 5× Green LEDs = PoE
Housing & PoE:
- Housing: Metal case
- PoE Support: Yes (IEEE 802.3at/af)
Dimensions & Weight:
- Size: 7 × 4.13 × 0.98 in (17.8 × 10.5 × 2.5 cm)
- Weight: 15.16 oz (430 g)
Increase your productivity
9-port PoE+ gigabit desktop switch
Easy plug-and-play setup
You won't need a technician to install your switch
Versatile and rugged
Sleek design, ideal desktop installation with integrated lightning protection.
Gigabit Ethernet
8 UTP/STP Gigabit Ethernet Ports PoE+10/100/1000 MBPS
Auto-Negotiation Ports
Detects Wireless Networks and selects transmission rate automatically
Energy-Efficient
Optimizes Power Consumption
Hassle-Free
Plug and Play Configuration
