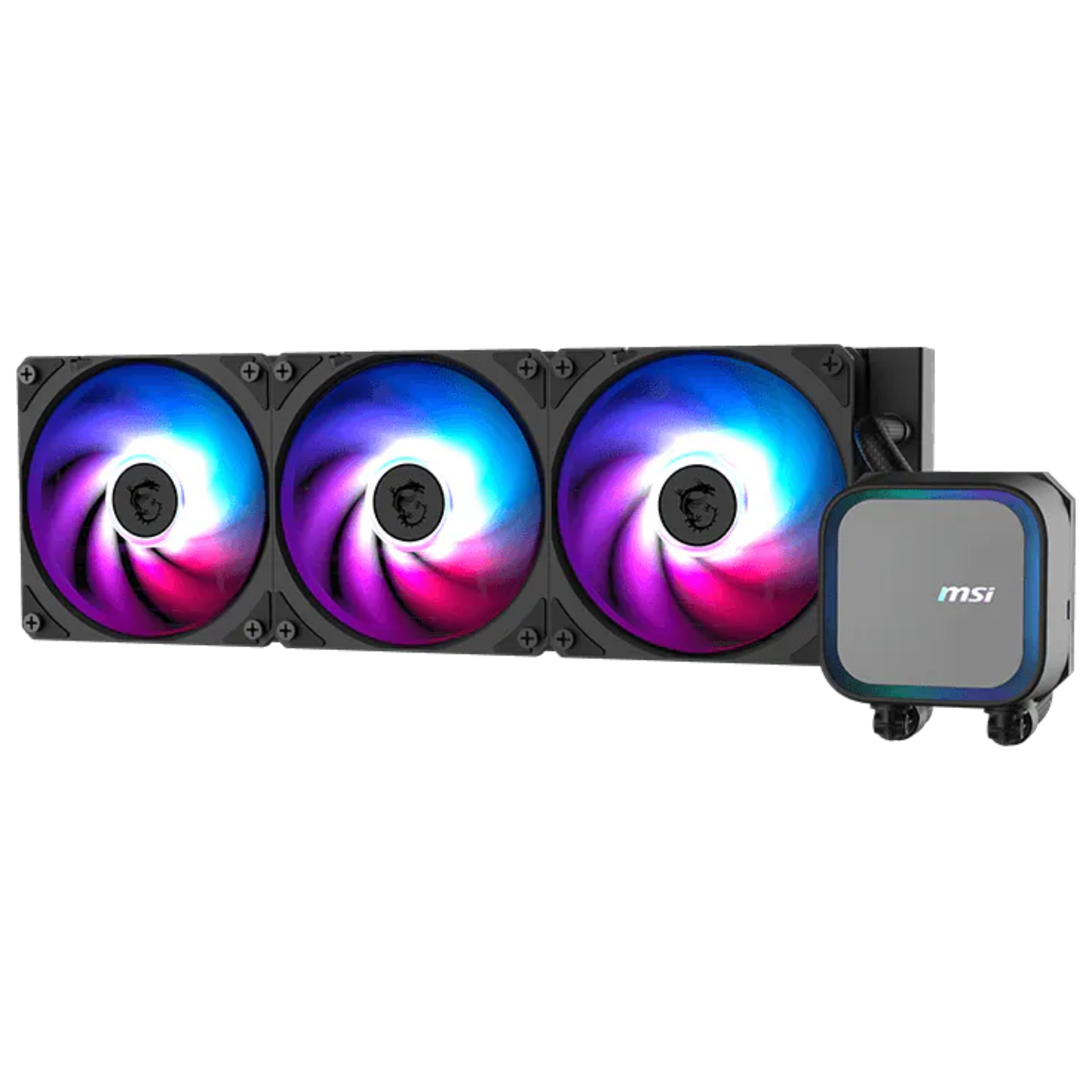

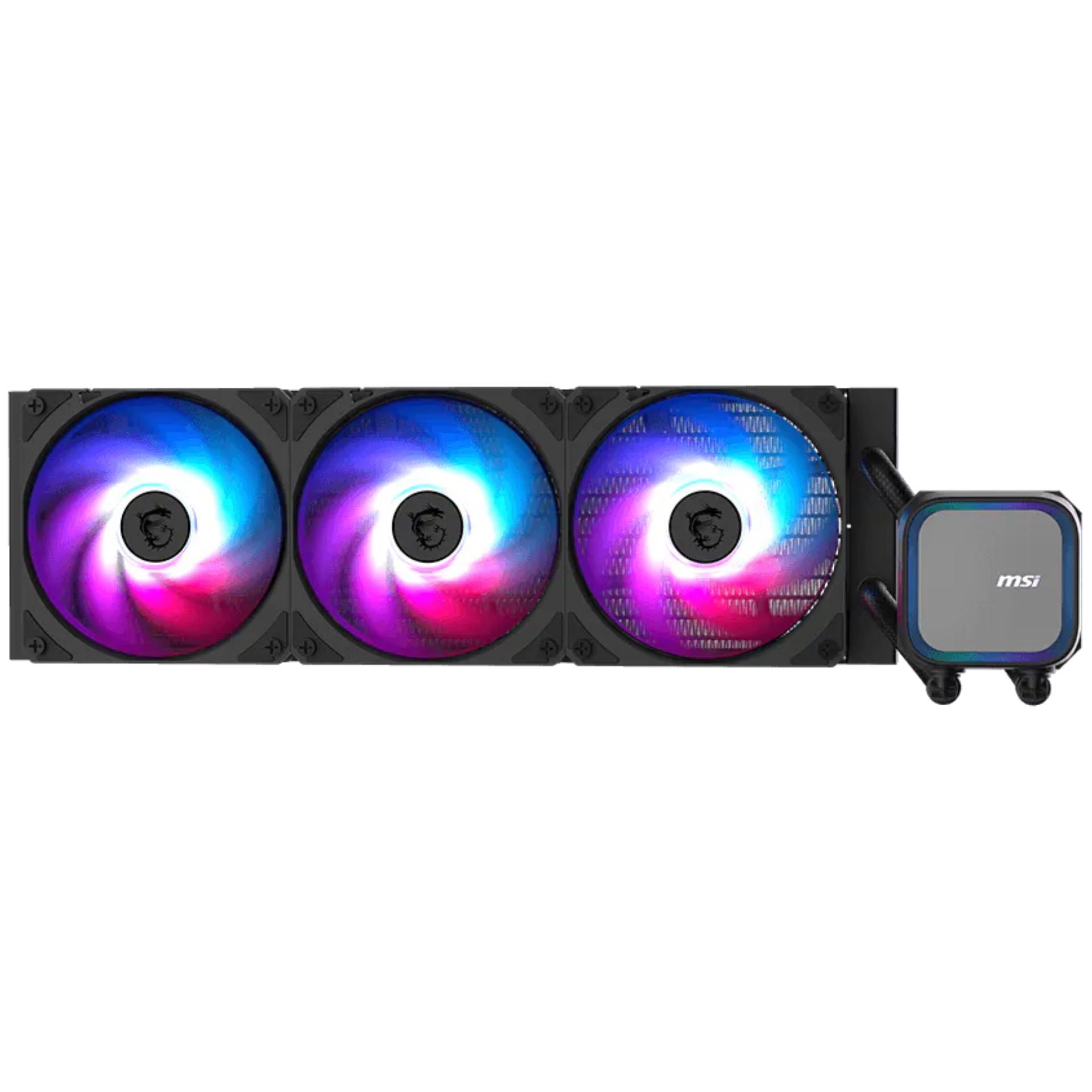

MSI MAG CORELIQUID A13 360 Water Cooler
The MSI ARSENAL GAMING (MAG) series is engineered to give gamers the edge they need to dominate on the virtual battlefield. Inspired by the rugged durability and unwavering reliability of military-grade equipment, the MAG series is built to provide an unwavering defense in every gaming scenario.
However, MAG isn't just about performance; it's a design language that conveys ruggedness and toughness, embodying the very essence of the MAG style. For gamers who are determined to dominate their digital battlegrounds, the MAG series is here to stand with you, establishing the ultimate defense.
Specifications
Overview
- Radiator Size: 360 mm
- Radiator Material: Aluminum
- Tubing Material: EPDM (anti‑evaporation)
- Cold Plate: Copper
- Intel Socket Support: LGA 1700 / 1851
- AMD Socket Support: AM4 / AM5
Build & Design
- Block Dimensions: 70.9 × 69.3 × 56.98 mm
- ARGB Lighting: Gen2 (pump + fans)
- Special Features:
- Pre‑installed fans for easier installation
- CYCLOBLADE 7 airflow‑focused fan blades
- PDM tubing for long‑term durability and reduced coolant loss
- Pre‑installed fans for easier installation
Cooling Performance
- Radiator Dimensions: 394 × 119.6 × 27.2 mm (15.51 × 4.69 × 1.06 in.)
- Number of Fans: 3
- Fan Dimensions: 120 × 120 × 25 mm (4.7 × 4.7 × 0.98 in.)
- Fan Airflow: 62.6 CFM
- Fan Bearing: Rifle Bearing (40,000 hr life @ 40°C)
- Fan Power Consumption: 1.8W (Max 2.16W)
- Fan Rated Current: 0.15A (Max 0.18A)
- Fan Connector: 5V ARGB 3‑Pin
- Fan Lighting: ARGB Gen2
- PWM Support: Yes
Included Accessories
- Thermal Paste × 1
- Screws × 12
Pump Performance
- Pump Speed: 3800 RPM ±10%
- Pump Noise Level: 20 dBA (avg.)
- Pump Power Consumption: 2.88W
- Pump Rated Current: 0.24A
- Pump Connector: 3‑Pin + 5V ARGB (female)
- Pump Life Expectancy: 25,000 hours
Power
- Fan Power Consumption: 1.8W (max 2.16W)
- Fan Rated Current: 0.15A (max 0.18A)
- Max Power Consumption (Total): — (not specified)
Design Concept
MSI's newly launched MAG CORELIQUID A13 Series cooler draws its design inspiration from the harmonious balance between square and round elements. The design seamlessly combines soft rounded edges with sharp, clean lines, reflecting the perfect blend of performance and silence.
The CORELIQUID A13 series is equipped with a high-performance pump that operates at speeds up to 3800 RPM. Combined with high-quality ceramic bearings, it achieves a perfect balance between performance and quiet operation.
The new generation full copper base eliminates the traditional screw perforation design, significantly enhancing water-tightness and ensuring more reliable system operation. Equipped with a precise 0.1mm micro-channel design, it efficiently absorbs CPU heat and works in tandem with the high-performance pump to quickly dissipate heat, delivering exceptional cooling performance.
Before, the water-cooling brand from 240 required organizing at least four cables. Now, not only are the fans pre-installed, but the time needed to organize the cables has also been simplified to just one cable. This increases user-friendliness, reduces installation burden, and enhances assembly enjoyment.
MSI's CycloBlade 7 fan combines a hybrid blade design, delivering powerful airflow and high static pressure. This ensures extreme cooling performance during intense gaming while maintaining low noise levels for an immersive experience. Additionally, the ARGB GEN2 lighting effects make your rig stand out on the battlefield, making it the ultimate choice for esports players.
The MAG CORELIQUID A13 series utilizes nylon-braided EPDM water cooling tubes, offering high and low-temperature resistance, corrosion resistance, excellent flexibility, and anti-aging properties. This design not only reduces the evaporation of the coolant but also makes it easy for players to install without worrying about bending or positioning the tubes.
This high-performance liquid cooler features 12 widened water channels, increasing water flow by 25%, even with a maintained thickness of 27mm, delivering more efficient cooling performance. The radiator's FPI (fins per inch) reaches an impressive 20, further expanding the cooling surface area. This design not only significantly enhances cooling efficiency but also ensures stable, powerful cooling under high loads and overclocking conditions.
