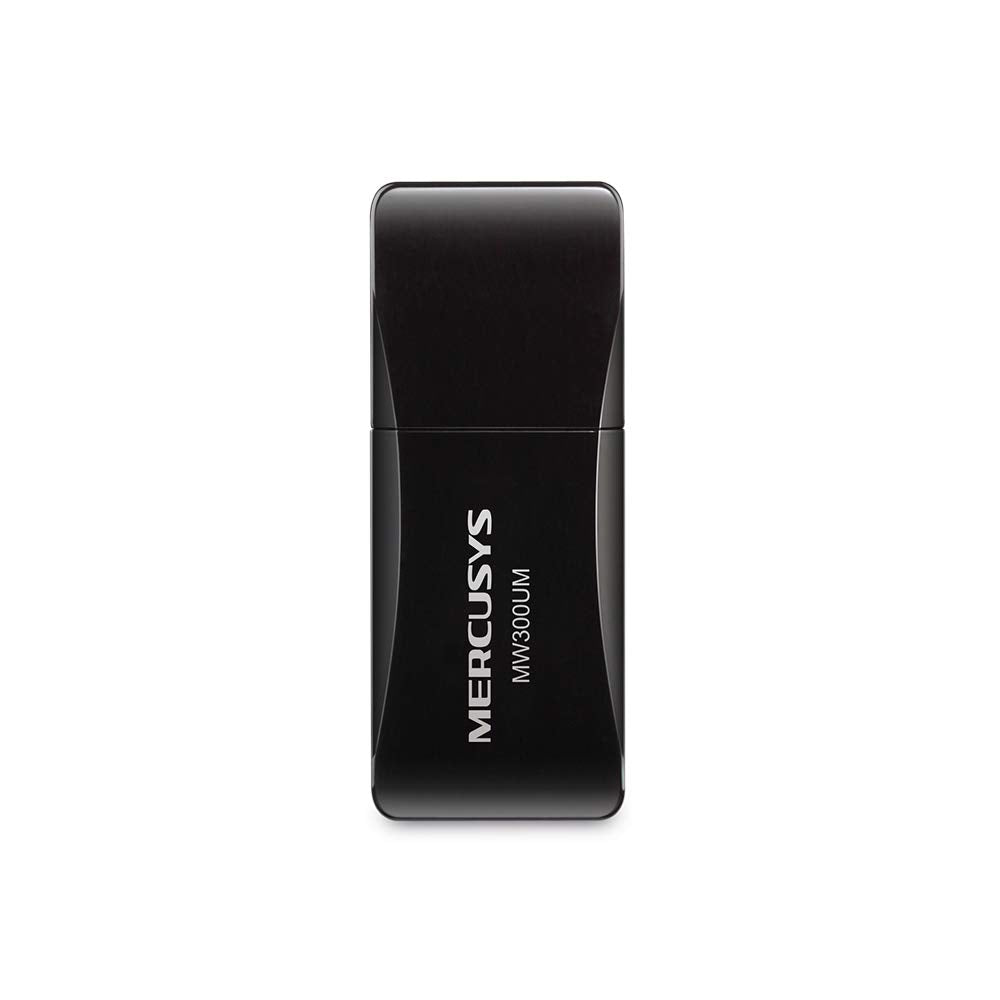

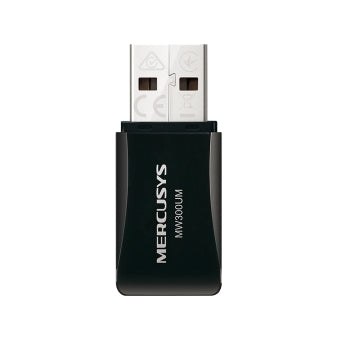

Mercusys N300 Wireless Mini USB Adapter (MW300UM)

Plug and Play

With the built-in inbox driver by Windows 11/10 operation systems, you just need to plug the MW300UM into the computer and then enjoy the fast wireless network in seconds.

Diverse Functions for Most Needs

With its soft AP function, it could turn your PC or laptop into a Wi-Fi hotspot if you are using an existing wired connection. That would satisfied your most surfing needs.

Portable Design

The MW300UM could be inserted into any USB port, which adapts to any applying scenarios. Besides, it takes the advantage of portable design, making it quite convenient to take on the road.

Wireless:

• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency Range: 2.400 – 2.4835 GHz
• WiFi Speeds:
  • 802.11n: Up to 300 Mbps (Dynamic)
  • 802.11g: Up to 54 Mbps (Dynamic)
  • 802.11b: Up to 11 Mbps (Dynamic)


Hardware:

• Interface: USB 2.0
• Antenna Type: Internal
• Dimensions: 40.4 × 17.2 × 8.6 mm (1.6 × 0.7 × 0.3 in)


Reception Sensitivity:

• • 270M: -62 dBm @ 10% PER
  • 130M: -65 dBm @ 10% PER
  • 108M: -68 dBm @ 10% PER
  • 54M: -68 dBm @ 10% PER
  • 11M: -85 dBm @ 8% PER
  • 6M: -88 dBm @ 10% PER
  • 1M: -90 dBm @ 8% PER
• Transmission Power: < 20 dBm
• Wireless Security: WPA/PSK, WPA2-PSK, WPA3-SAE

System Requirements:

• Compatible with Windows 11 / 10 / 8.1 / 8 / 7 / XP


Environment:

• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
• Operating Humidity: 10% ~ 90% (Non-condensing)
• Storage Humidity: 5% ~ 90% (Non-condensing)

Package Contents:

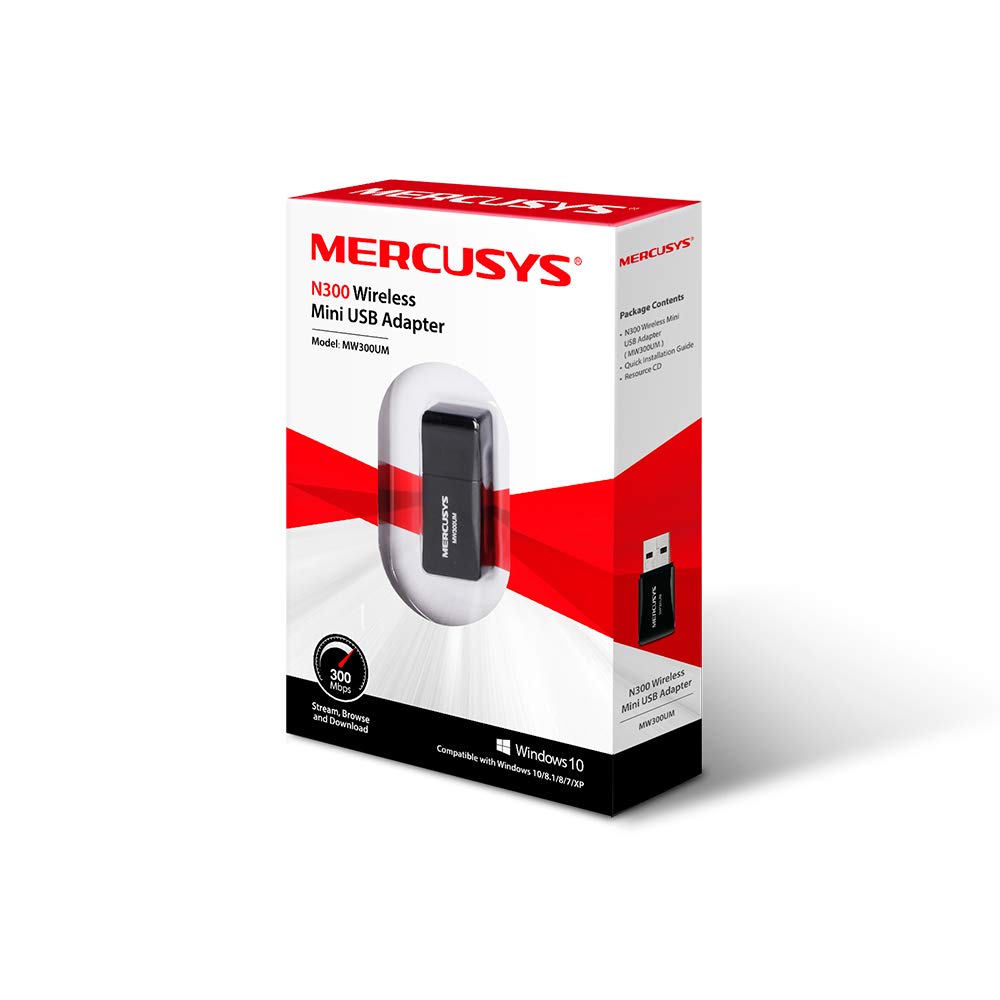

• N300 Wireless Mini USB Adapter (MW300UM)
• Quick Installation Guide
