Logic Controls LR1100U Thermal Printer (USB)
BZ$395.00
GST included, shipping calculated at checkout
Logic Controls LR1100 Thermal Printer A Cost Effective Thermal Printer – The LR1100 is a fast high quality POS printer using thermal technology for printing. It optimizes the checkout process and helps accelerate business at the Point of Sale. Ethernet is ideal for network printing applications. The wide range of...
Return Policy

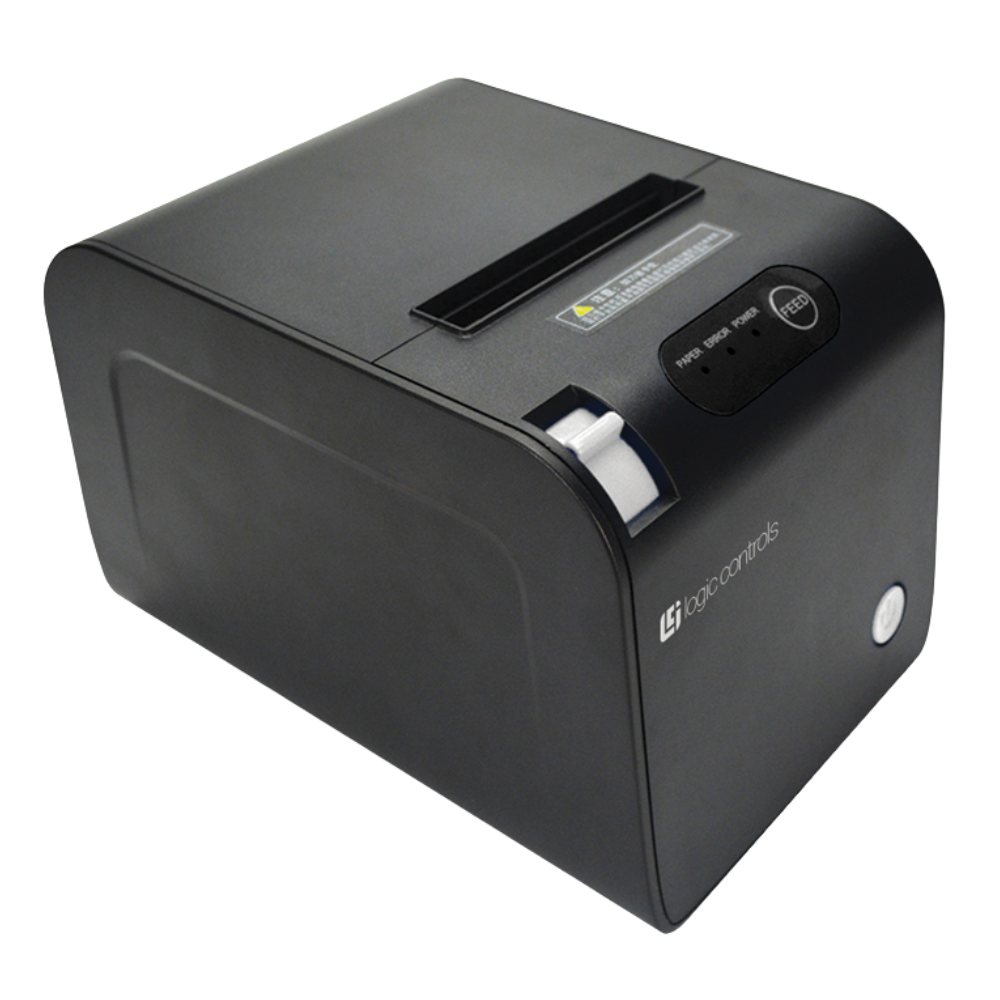

Logic Controls LR1100 Thermal Printer
A Cost Effective Thermal Printer – The LR1100 is a fast high quality POS printer using thermal technology for printing. It optimizes the checkout process and helps accelerate business at the Point of Sale. Ethernet is ideal for network printing applications. The wide range of software tools assist in quick and easy setup of the LR1100 printers in the application environment.
Specifications
Printing
- Printing Method: Direct thermal printing
- Resolution: 203 dpi (8 dots/mm)
- Paper Width: 79.5 ± 0.5 mm
- Printing Width: 72 mm
-
Character Font:
- ASCII Font A: 12×24
- ASCII Font B: 9×17
- Printer Density: 576 dots/line
-
Printing Speed: 250 mm/s
Life Span
- Printer Head Service Lifetime: 15,000,000 lines (100 km)
- Auto-Cutter: 1,000,000 cuts
-
MCBF: 60,000,000 lines
Communication Interfaces
- USB
Electrical
- Power Adapter Input: AC 100–240V, 50/60Hz
-
Power Adapter Output: DC 24V, 2.5A

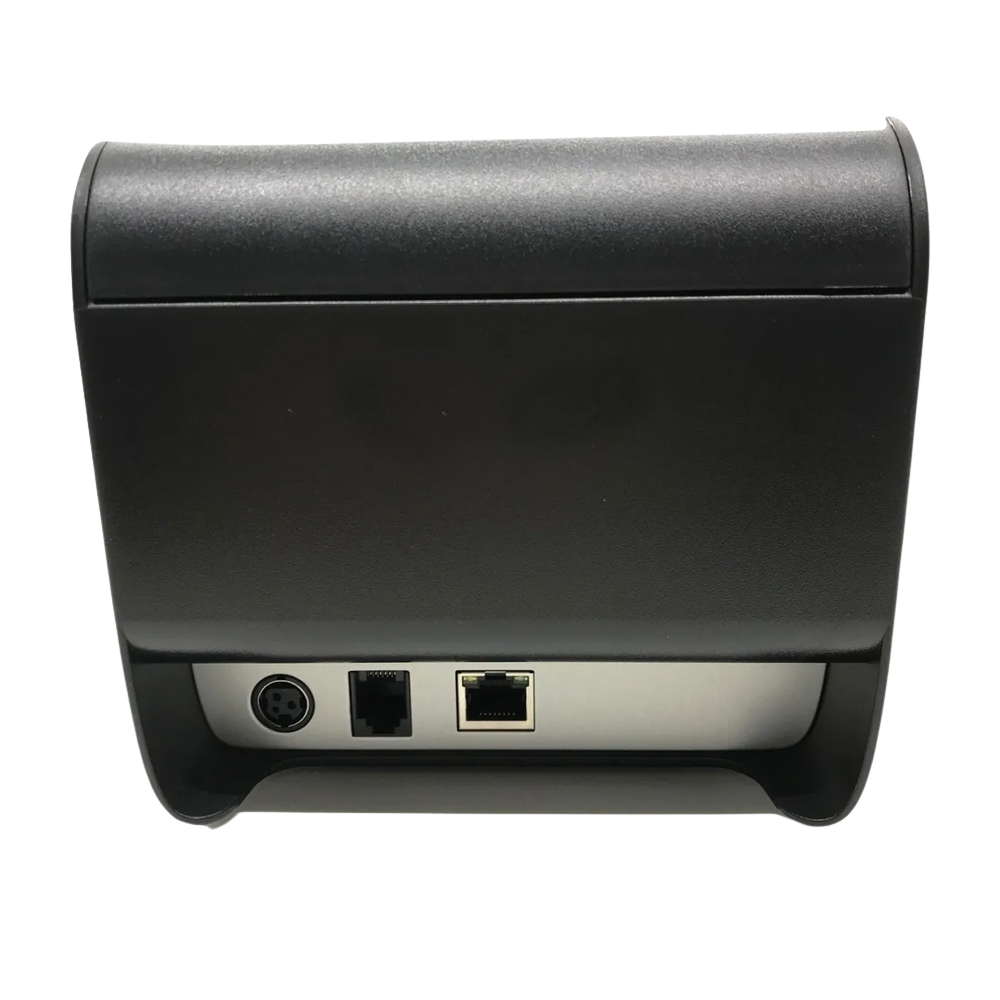

Connectors
- Ethernet: RJ45
- Cash Drawer: RJ11
-
Power: 3-pin with latch
Weight:
- 2.6 lbs (1.2 kg)
Dimensions:
- Width: 5.5 in (140 mm)
- Height: 7.8 in (198 mm)
-
Depth: 5.1 in (130 mm)
>15 Million Lines
Up the 158'F (70'C)
Up to 9.8"/second
POS Integration
USB & Serial Connection
Water Resistant
Versatile Printing for a Variety of Uses.
LR1100 comes equipped with ESC/POS command set emulation and easy-to-use software tools for quick and easy setup. Plus it’s built to last, with tested durability for 15 million printed lines or more.
