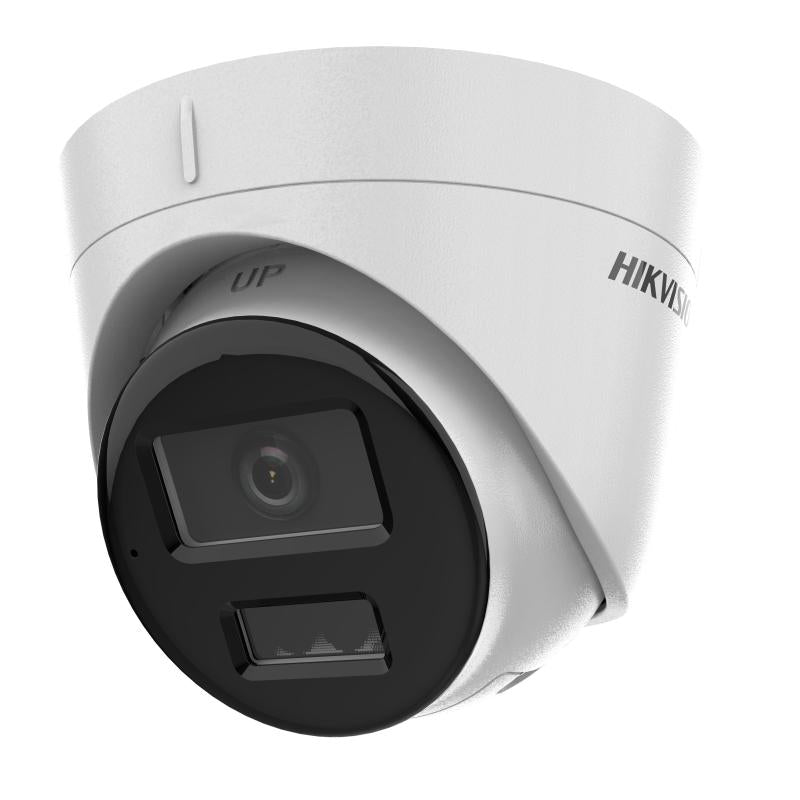

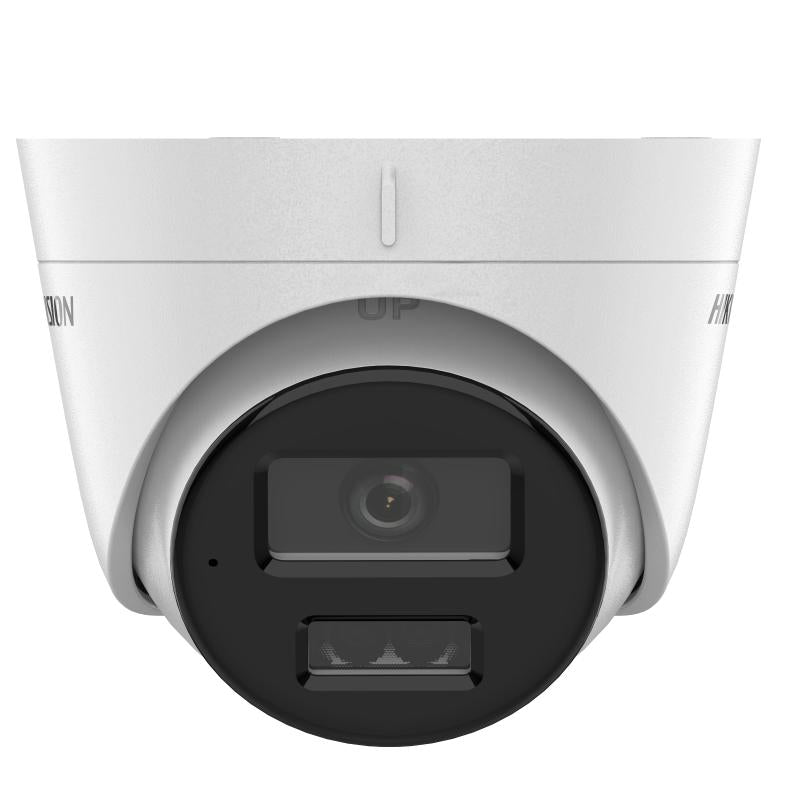

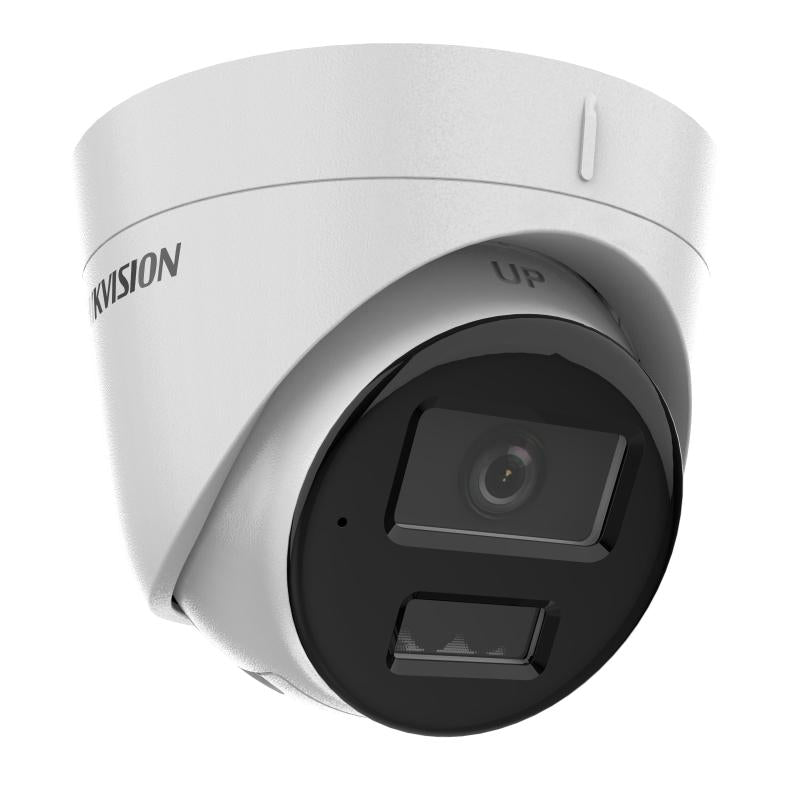

Hikvision DS-2CD1323G2-LIU(2.8mm) 2 MP Smart Hybrid Light Fixed Turret Network Camera
BZ$115.00
GST included, shipping calculated at checkout
Hikvision 2 MP Smart Hybrid Light Fixed Turret Network Camera DS-2CD1323G2-LIU(2.8mm) See Far, Go Further Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness. Specifications Camera: Image Sensor: 1/2.9″ Progressive...
Return Policy
Hikvision 2 MP Smart Hybrid Light Fixed Turret Network Camera
DS-2CD1323G2-LIU(2.8mm)
See Far, Go Further
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Specifications
Camera:
- Image Sensor: 1/2.9″ Progressive Scan CMOS
- Maximum Resolution: 1920 × 1080
-
Minimum Illumination:
- Color: 0.005 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- Shutter Speed: 1/3 s to 1/100,000 s
- Day/Night: IR cut filter
-
3-Axis Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 75°
- Rotate: 0° to 360°
Lens:
- Focal Lengths: 2.8 mm / 4 mm
- Aperture: F1.6
- Lens Mount: M12
-
Field of View (FOV):
- 2.8 mm: H: 103°, V: 56°, D: 121°
- 4 mm: H: 83°, V: 44°, D: 99°
-
Focus: Fixed
DORI:
- 2.8 mm: D: 45 m, O: 18 m, R: 9 m, I: 4 m
-
4 mm: D: 56 m, O: 22 m, R: 11 m, I: 5 m
Image:
-
Main Stream Frame Rates:
- 50Hz: 25 fps (1920 × 1080, 1280 × 720)
- 60Hz: 30 fps (same resolutions)
-
Sub-Stream Frame Rates:
- 50Hz: 25 fps (640 × 480, 640 × 360)
- 60Hz: 30 fps (same resolutions)
- Enhancements: BLC, HLC, 3D DNR
- Image Settings: Adjustable via client/web (rotate mode, saturation, brightness, contrast, sharpness, gain, white balance)
- ROI: 1 fixed region for main stream
- Day/Night Modes: Day / Night / Auto / Schedule
- Wide Dynamic Range: Digital WDR
-
SNR: ≥ 52 dB
Illuminator:
- Supplement Light Type: IR, White Light
- Range: Up to 30 m
-
Wavelength: 850 nm
Approval:
- EMC: FCC, CE-EMC, RCM, IC
- Safety: UL, CB, CE-LVD, BIS
- Environment: RoHS, WEEE, REACH
-
Protection: IP67
General:
- Material: Metal & Plastic
- Dimensions: Ø110 mm × 89.2 mm (Ø4.3″ × 3.5″)
- Package Dimensions: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
-
Weight: Camera: 340 g (0.7 lb.), With package: 560 g (1.2 lb.)
Interface:
- Video Output: IP (RJ45 Ethernet port)
- On-board Storage: Built-in microSD slot (up to 512 GB)
- Built-in Microphone: Yes
-
Reset Button: Yes
Event:
- Smart Detection: Line crossing, intrusion (human/vehicle), face detection
- Basic Detection: Motion detection (human/vehicle), video tampering, network issues, illegal login
- Motion Detection: 4 programmable motion areas
-
Linkage: Upload to FTP/memory card, notify surveillance center, trigger record/capture, Email
Power:
- Input: 12 VDC ± 25%, Max. 5 W
- PoE: 802.3af, 36 VDC to 57 VDC, Max. 6.5 W
-
Recommendation: Use one power adapter per camera
Dimensions:
