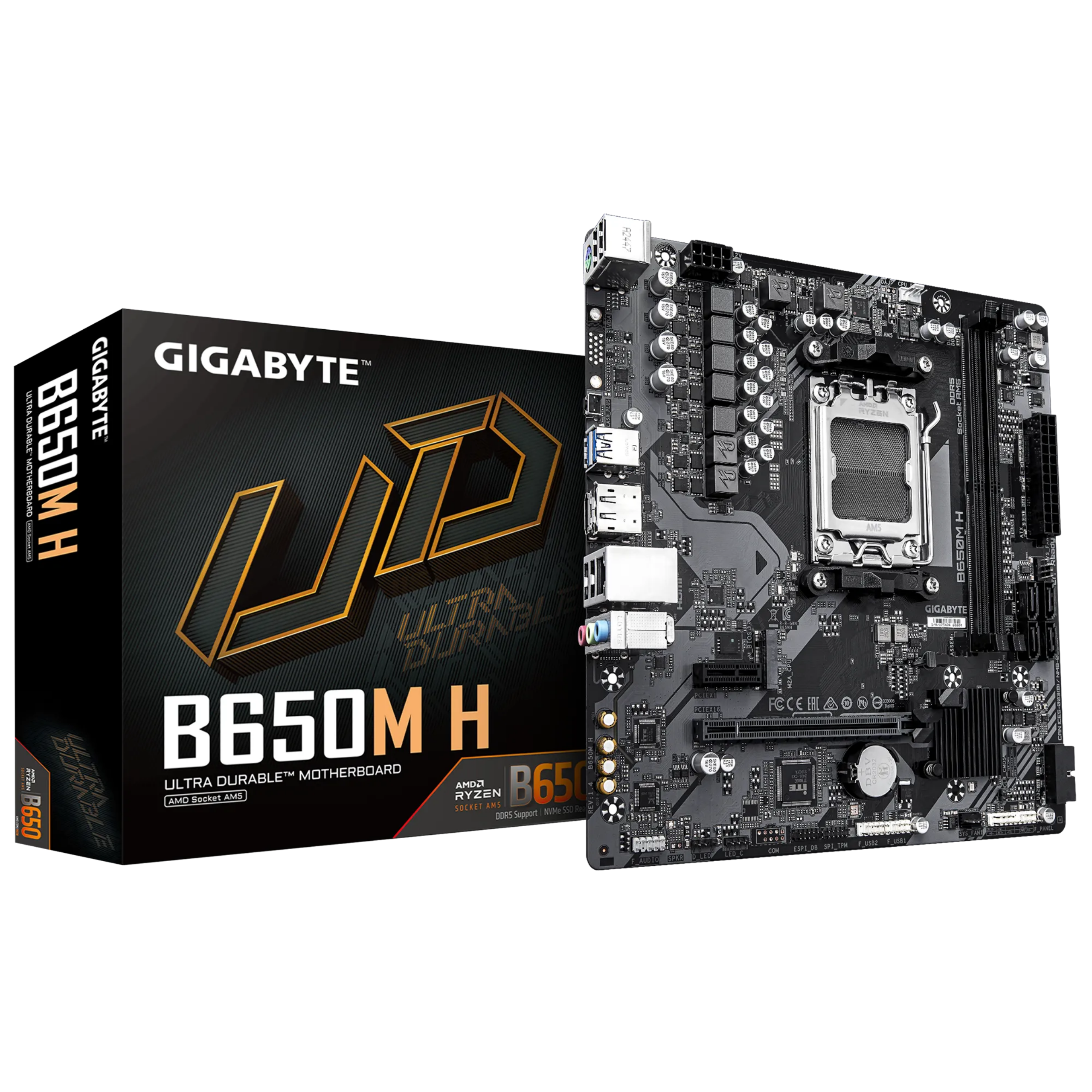

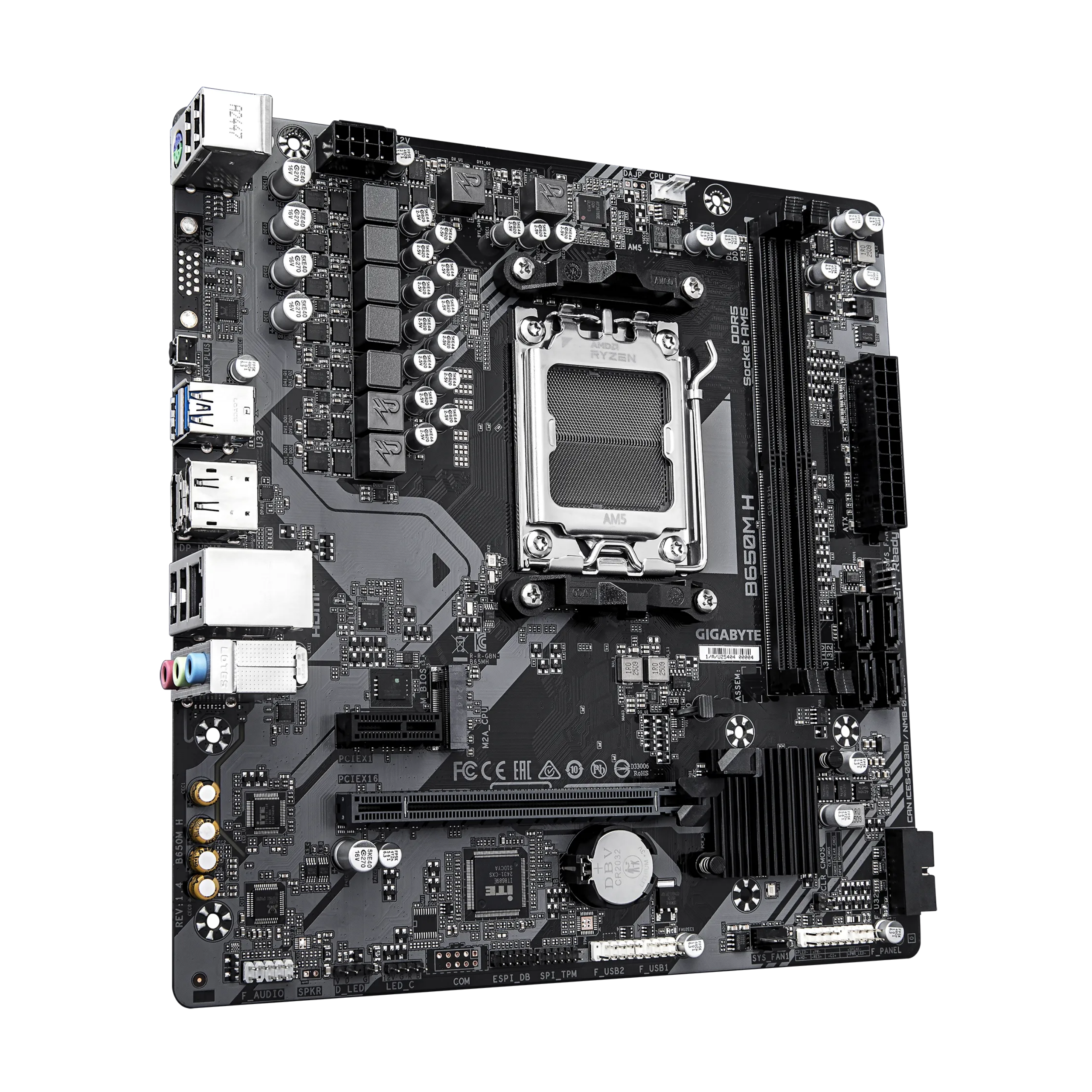

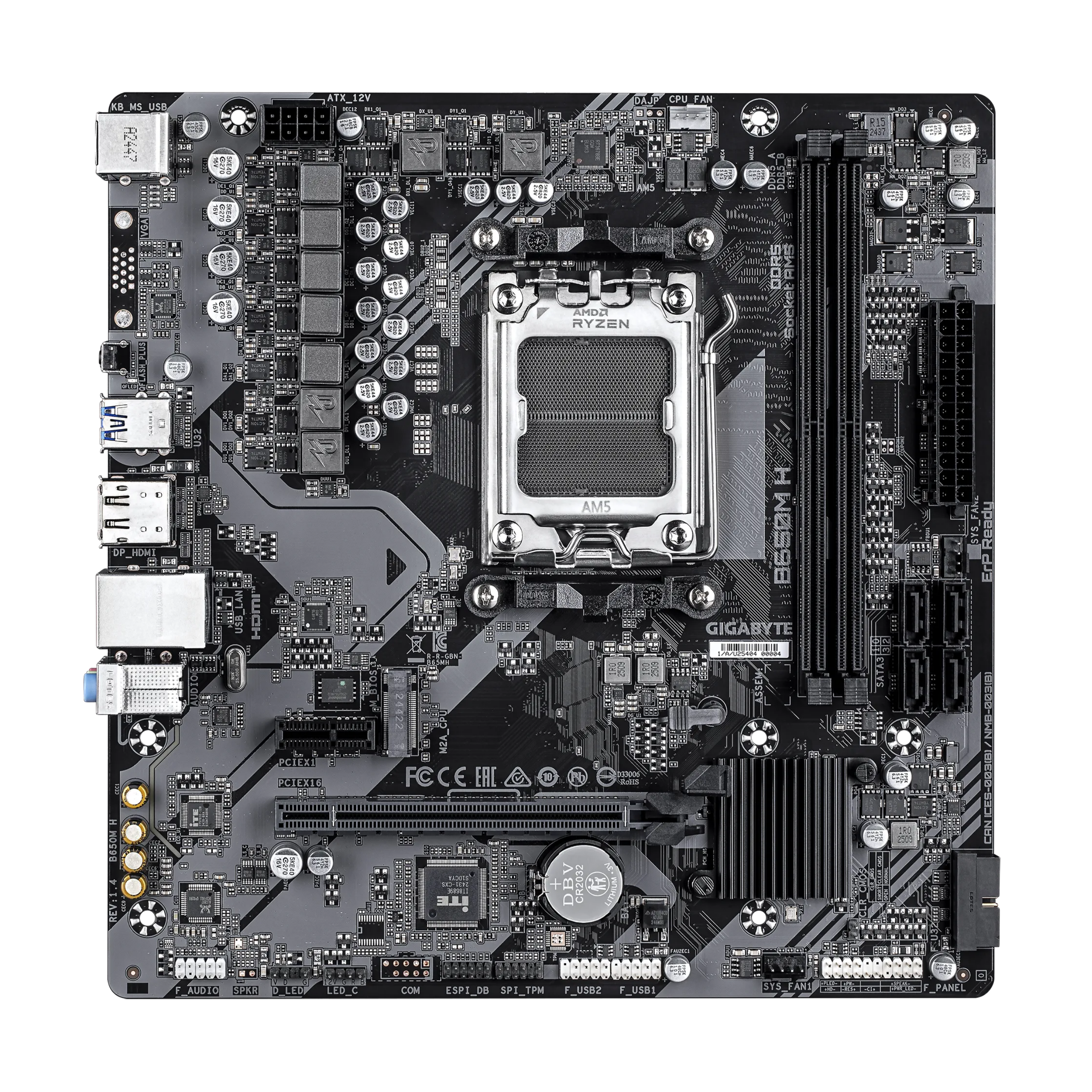

Gigabyte B650M-H Micro ATX Motherboard
AMD Socket AM5:Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors
Durable Performance. GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
Specifications
Overview
- CPU Support: AMD Ryzen 7000 / 8000 / 9000 Series
- Socket: AM5
- Chipset: AMD B650
- Form Factor: Micro ATX
Memory
- Memory Type: DDR5
- Max Memory: 128 GB
- Memory Speed Support: Up to DDR5‑7200 (OC)
- Memory Features: Dual‑Channel, AMD EXPO & XMP support
Graphics Outputs (CPU‑Dependent)
- DisplayPort 1.4 (3840×2160 @ 144 Hz)
- HDMI 2.1 (4096×2160 @ 60 Hz)
Networking
- LAN: Realtek 1GbE
Audio
- Realtek HD Audio (up to 7.1‑channel)
Expansion Slots
- 1 × PCIe x16 (up to PCIe 4.0, depending on CPU)
- 1 × PCIe x1 (PCIe 3.0)
Storage
- 1 × M.2 PCIe 4.0 (2280/2580)
- 4 × SATA 6Gb/s
- RAID Support: RAID 0/1/10 (NVMe & SATA)
Internal Headers & Connectors
- 24‑pin ATX Power
- 8‑pin CPU Power
- CPU Fan Header
- 2 × System Fan Headers
- RGB + ARGB Headers
- TPM Header
Operating System Support
- Windows 11 64‑bit
- Windows 10 64‑bit
USB Ports
- Rear I/O:
- 2 × USB 3.2 Gen 1
- 4 × USB 2.0
- PS/2 Combo Port
- 2 × USB 3.2 Gen 1
- Internal Headers:
- USB 3.2 Gen 1
- USB 2.0 headers
- USB 3.2 Gen 1
Rear I/O
- 4 × USB 2.0
- 2 × USB 3.2 Gen 1
- HDMI
- DisplayPort
- RJ‑45 LAN
- 3 × Audio Jacks
- Q‑Flash Plus Button
Software Features
- GIGABYTE Control Center (GCC)
- Q‑Flash & Q‑Flash Plus BIOS update support
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
PCIe 4.0 Hardware Design
GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
