Dell Pro Smart Dock - SD25
Return Policy
Dell Pro Smart Dock - SD25
Get the power and agility to work your way with the latest smart dock featuring up to 130W power delivery and remote management capabilities.
A smarter workspace
Gain the versatility to create your ideal workspace and boost your AI PC productivity with support for up to 4 displays, up to 130W power delivery, and multiple ports to connect all your peripherals.
Specifications
Overview:
- Connectivity: Wired
- Displays Supported: Up to 4
- Device Support: Notebook
- Ethernet: RJ45 (2.5GbE)
- Management Features:
- MAC pass-through, PXE Boot, Wake-On-LAN
- Power button sync, WLAN-to-LAN switch
- DMA protection
- Remote and host-based firmware updates
- Port disablement
- MAC pass-through, PXE Boot, Wake-On-LAN
Video Resolution Support::
- DP 1.4 with DSC:
- Up to 6K / 5K / WQHD
- Up to 6K / 5K / WQHD
- DP 1.4 without DSC:
- Up to 4K / QHD / FHD / HD
Interfaces & Ports:
- Video:
- 2 × DisplayPort 1.4
- 1 × HDMI 2.1
- 1 × USB-C (DP 1.4)
- 2 × DisplayPort 1.4
- USB (Data):
- 4 × USB-A 3.2 Gen 2 (10Gbps)
- 1 × USB-C 3.2 Gen 2 (10Gbps)
- 4 × USB-A 3.2 Gen 2 (10Gbps)
- USB (Power):
- USB-A (4.5W each)
- USB-C (7.5W and 15W)
- All USB ports supply power with or without a PC
- USB-A (4.5W each)
Power Delivery:
- 130W (Dell systems)
- 96W (non-Dell systems)
Software Compatibility:
- Windows 10, Windows 11
- Ubuntu, Red Hat Enterprise
- Linux, ChromeOS
Power:
- Maximum Power Supply: 180W
Dimensions & Weight:
- 8.07" H, 3.54" W, 1.39" D
- Weight: 1.24 lb
Package Contents:
- Docking station
- 180W power adapter and power cord
- Quick Start Guide and documentation
Designed for sustainability
The Dell Pro Smart Dock is built with at least 65% post-consumer recycled materials and packaged with 100% recycled or renewable packaging.
Most Manageable
Remotely manage your smart docks without end-user presence from the Dell Device Management Console - the industry's first holistic peripheral management solution that configures, deploys, and updates smart docks over Wi-Fi.
Work Securely
Keep users working confidently with enterprise-grade WPA-3 192-bit encryption for secure Wi-Fi communication. Safeguard your sensitive data with tamper-resistant, hardware-based encryption built into your Dell Pro Smart Dock.
Effortless Maintenance
Reduce IT efforts by scheduling updates during off-hours, while ensuring fleetwide firmware compliance and eliminating end user interruptions.
Ports and slots

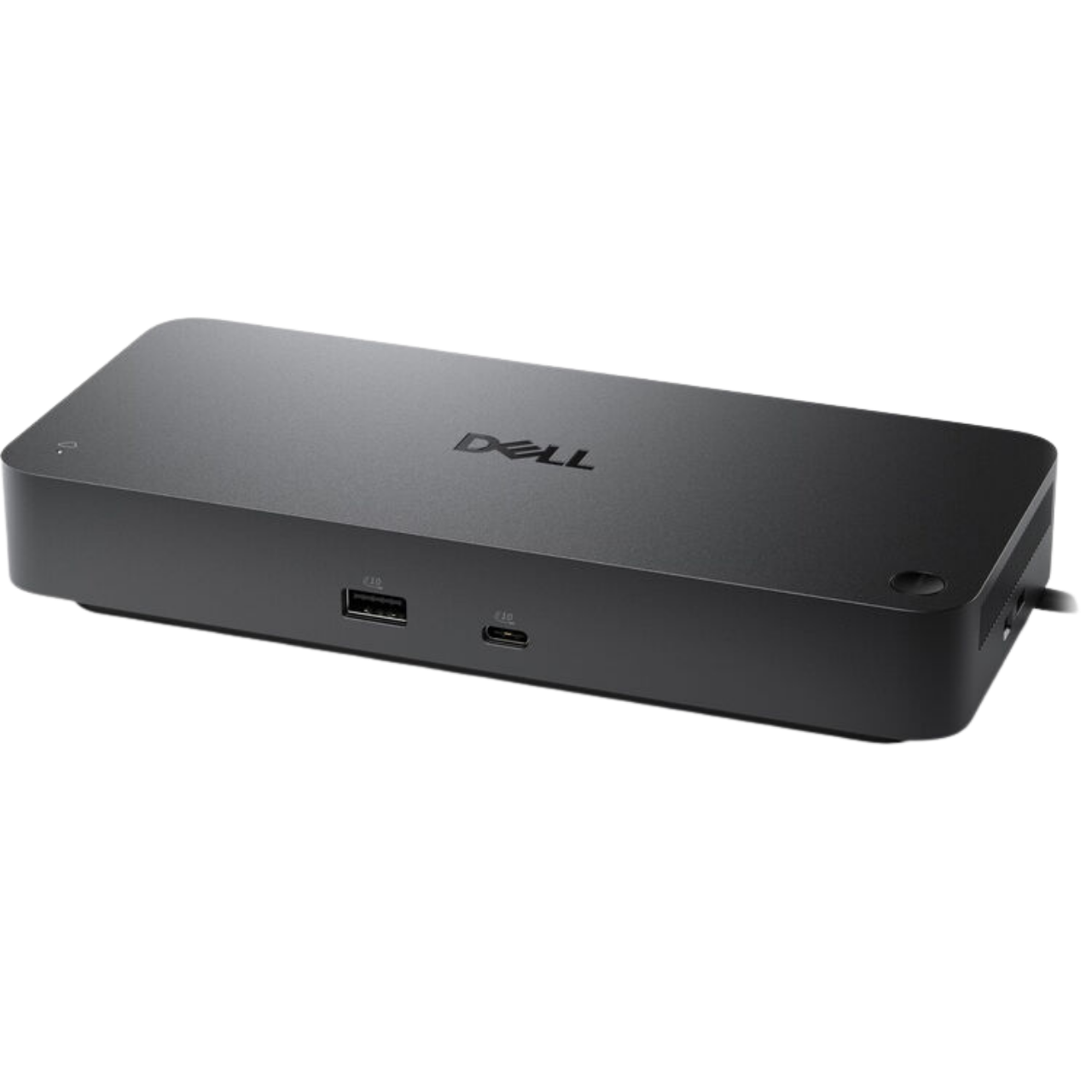

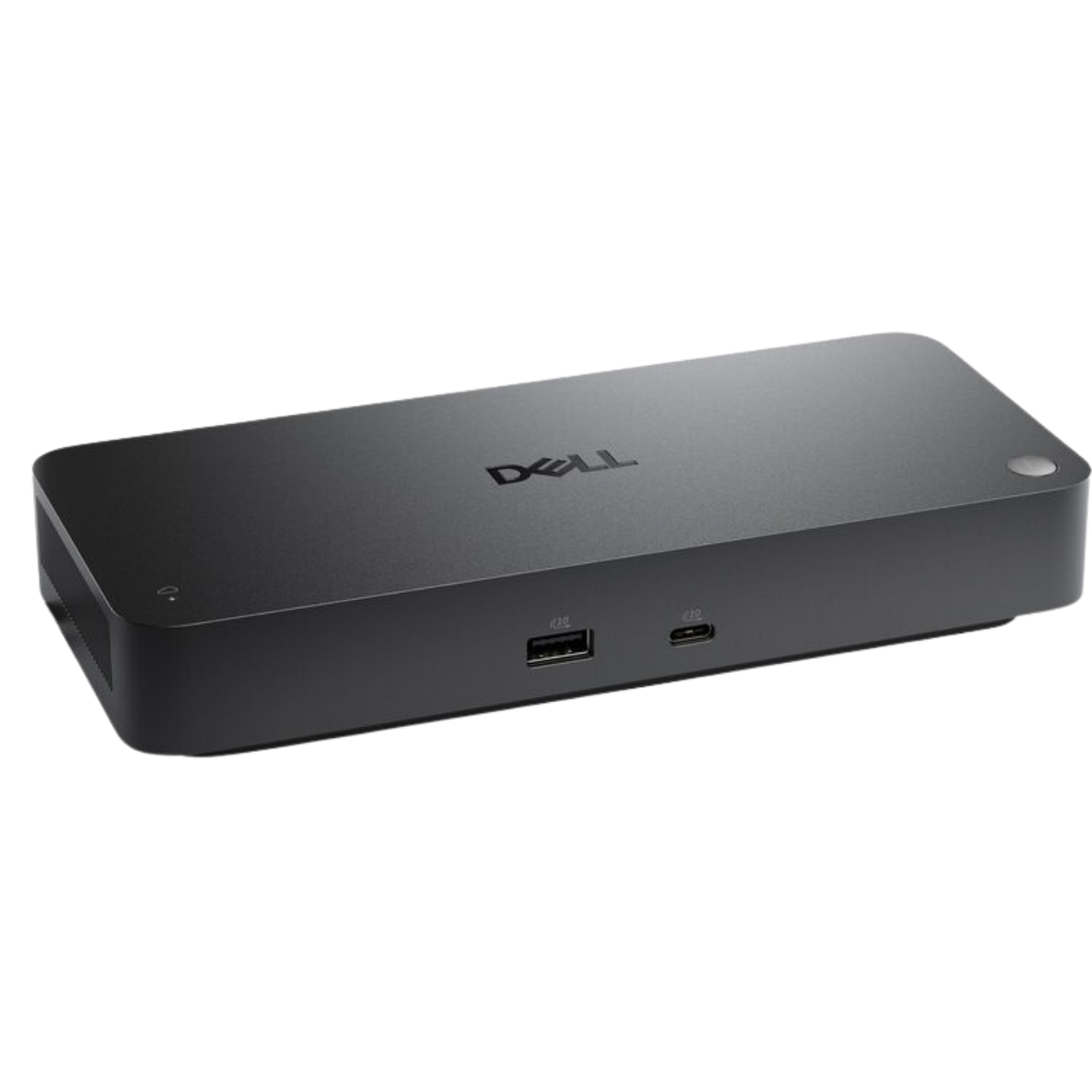

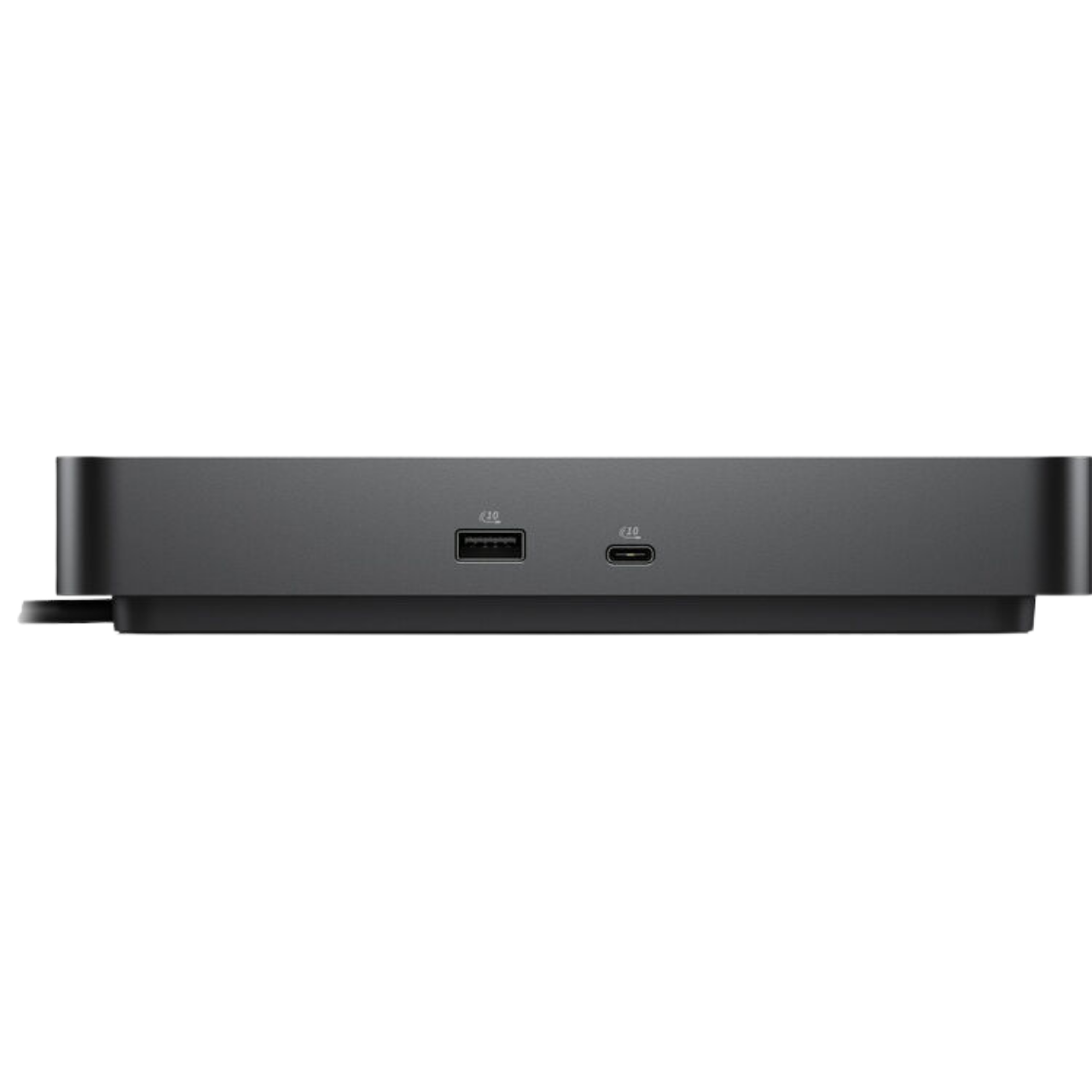

Front side:
- 1. USB-A 3.2 Gen 2 with
PowerShare
- 2. USB-C 3.2 Gen 2

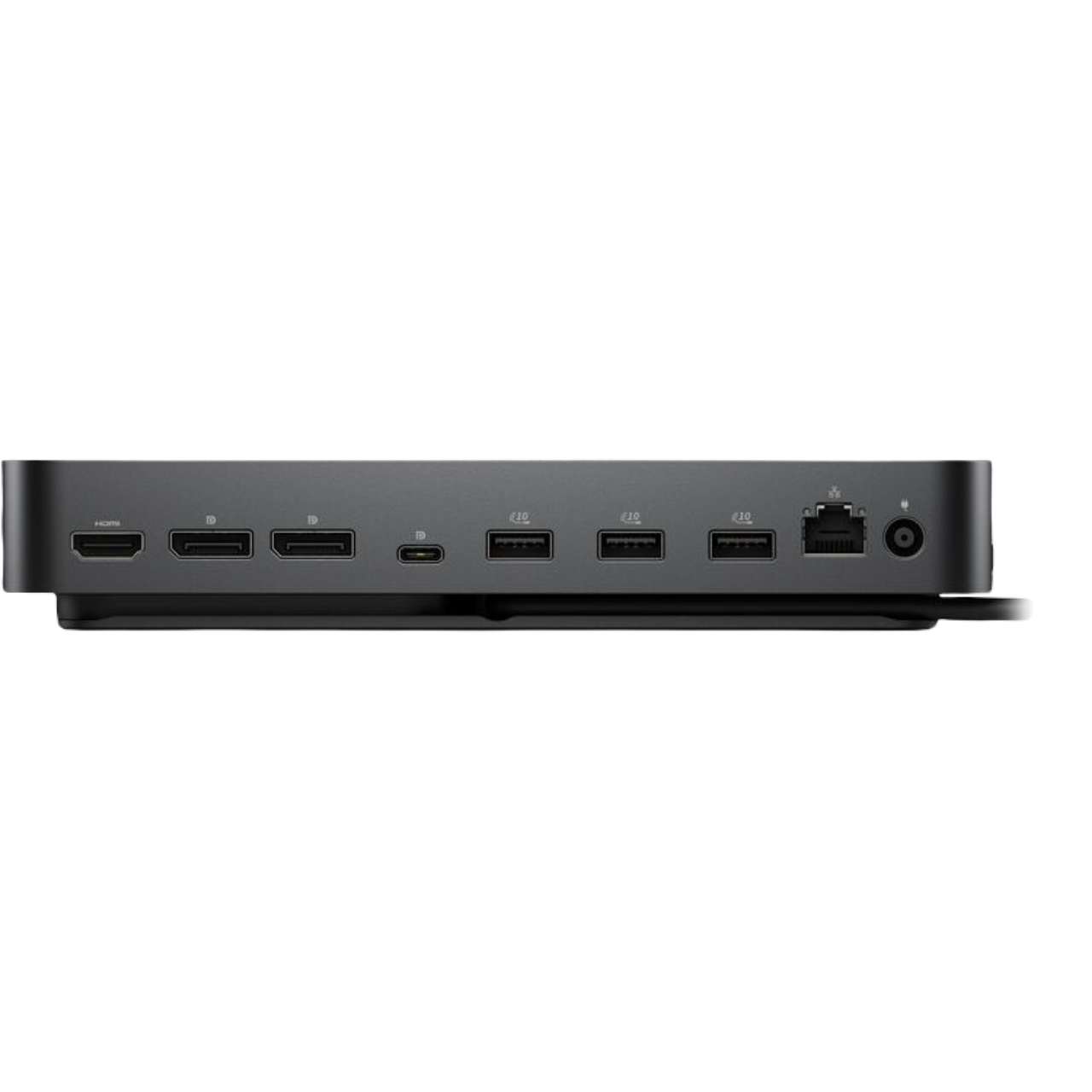

Rear side:
- 3. HDMI 2.1
- 4. DisplayPort 1.4
- 5. DisplayPort 1.4
- 6. USB-C 3.2 Gen 2 Multifunction DisplayPort 1.4
- 7. USB-A 3.2 Gen 2 with PowerShare
- 8. USB-A 3.2 Gen 2 with PowerShare
- 9. USB-A 3.2 Gen 2 with PowerShare
- 10. 2.5 Gigabit Ethernet (RJ45)
- 11. Power In
Connect your way
Configure your workspace to your liking with an ambidextrous USB-C cable that can be routed left or right.
