Overview:

• Processor: 14th Gen Intel Core i7‐14500T vPro (24 MB cache, 14 cores, 20 threads, 1.70 GHz to 4.80 GHz Turbo, 35W)
• Operating System: Windows 11 Pro
• Graphics: Integrated Graphics

Memory & Storage:

• RAM: 16GB: 1 x 16GB, DDR5, up to 5600 MT/s, non-ECC
• Storage: 512 GB M.2 PCIe Gen 4 NVMe SSD (Class 25)

Connectivity:

• Wireless: Intel Wi-Fi 6E AX211, 2x2, 802.11ax, MU-MIMO, Bluetooth 5.3

Security & Software:

• Security Features: Dell Trusted Device, Dell SafeData, McAfee Business Protection
• Software: Dell Optimizer, SupportAssist, Dell Digital Delivery, Microsoft Office options, Adobe Creative Cloud, CyberLink Suite


Build & Design:

• Dimensions:
  • Height: 303.50 mm (11.95 in.)
  • Width: 95.00 mm (3.74 in.)
  • Depth: 293.00 mm (11.54 in.)

• Weight:
  • Minimum: 3.98 kg (8.77 lb)
  • Maximum: 6.58 kg (14.51 lb)


Power & Battery:

• Power Supply:
  • 260W Bronze internal PSU

Keyboard:

• Dell Pro Keyboard and Mouse - KM5221W - US English - Black

Regulatory:

• Product Safety, EMC and Environmental Datasheets
• Dell Regulatory Compliance Home Page
• Dell and the Environment


Port & Slots:

• Front:
  • 1 USB 2.0 (480 Mbps) port

  • 1 USB 2.0 (480 Mbps) port with PowerShare

  • 1 USB 3.2 Gen 2 (10 Gbps) port

  • 1 USB 3.2 Gen 2x2 (20 Gbps) Type-C port

  • 1 global headset jack

• Rear:
  • 2 USB 2.0 (480 Mbps) ports with SmartPower On

  • 3 USB 3.2 Gen 1 (5 Gbps) ports

  • 1 USB 3.2 Gen 2 (10 Gbps) port

  • 3 DisplayPort 1.4a (HBR3) ports

  • 1 RJ45 (1GbE) Ethernet port
• Slots:
  • 1 half-height Gen4 PCIe x16 slot

  • 1 half-height Gen3 PCIe x4 slot

  • 1 half-height Gen3 PCIe x1 slot

  • 1 M.2 2230 slot for Wi-Fi and Bluetooth combo card

  • 1 M.2 2230/2280 slot for solid state drive

  • 2 M.2 2230/2280 slots for solid state drives

  • 1 SATA 3.0 slot for 3.5-inch hard drive

  • 1 SATA 3.0 slot for slim optical drive

Advanced Thermals

Re-engineered, it features an enhanced thermal design to optimize airflow.

Tidy and Organized

Set it upright on a desk, or horizontally to support a monitor and save valuable desk space.

High-speed Productivity

Tackle heavy workloads efficiently with up to 128GB of DDR5 memory across 4 slots, 3 M.2 SSDs, and an additional M.2 SSD via Zoom expansion card.

Expand your view

Expand your screen setup with integrated graphics, allowing you to use up to 4 displays at once.

Built to Perform

Dell Pro desktops are built for reliability and durability, with less than 1% requiring service in their first year.

Single BIOS strategy

Streamline PC deployment and simplify fleet management with one unified BIOS across Dell Pro Micro, Slim and Tower form factors.

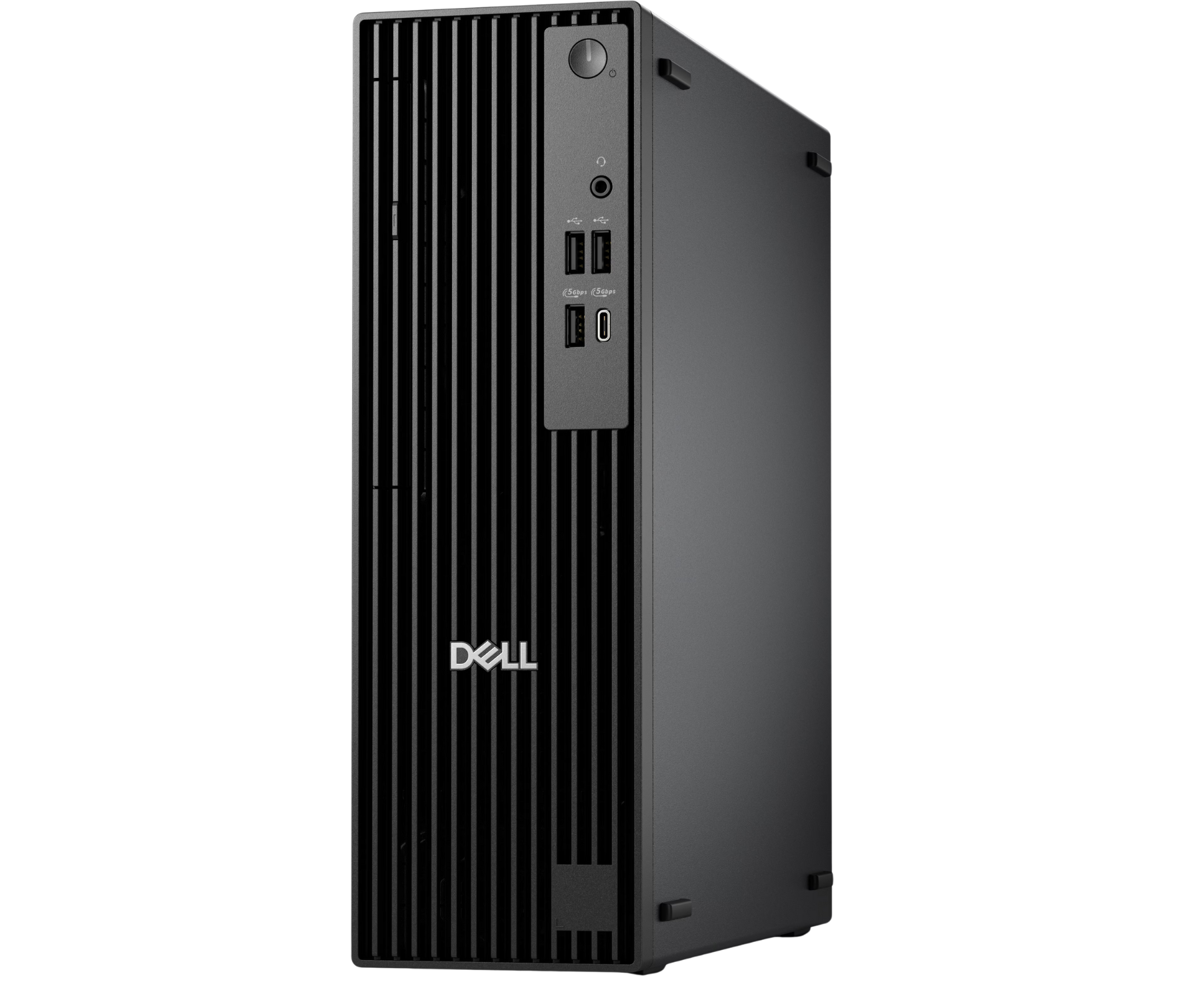

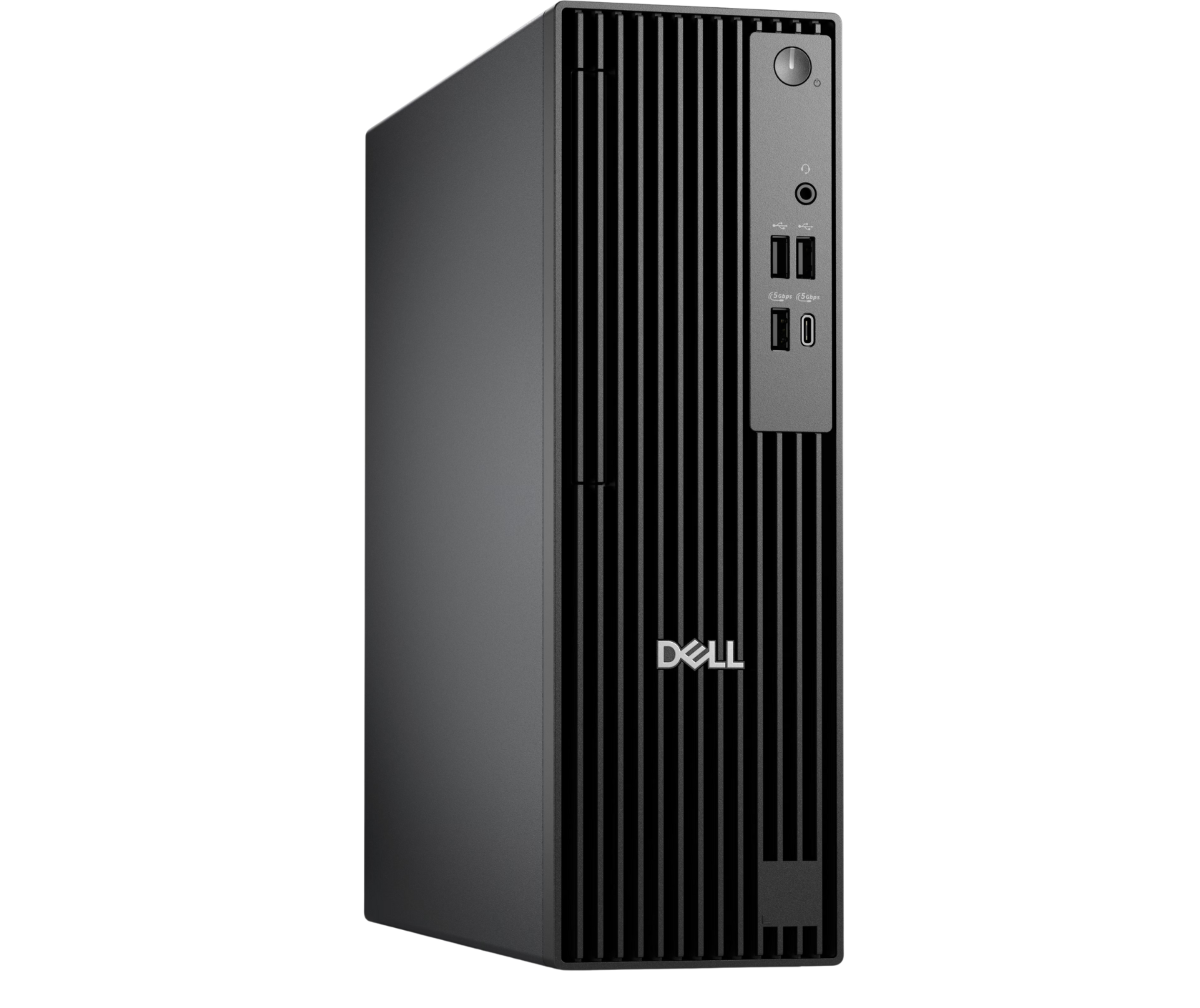

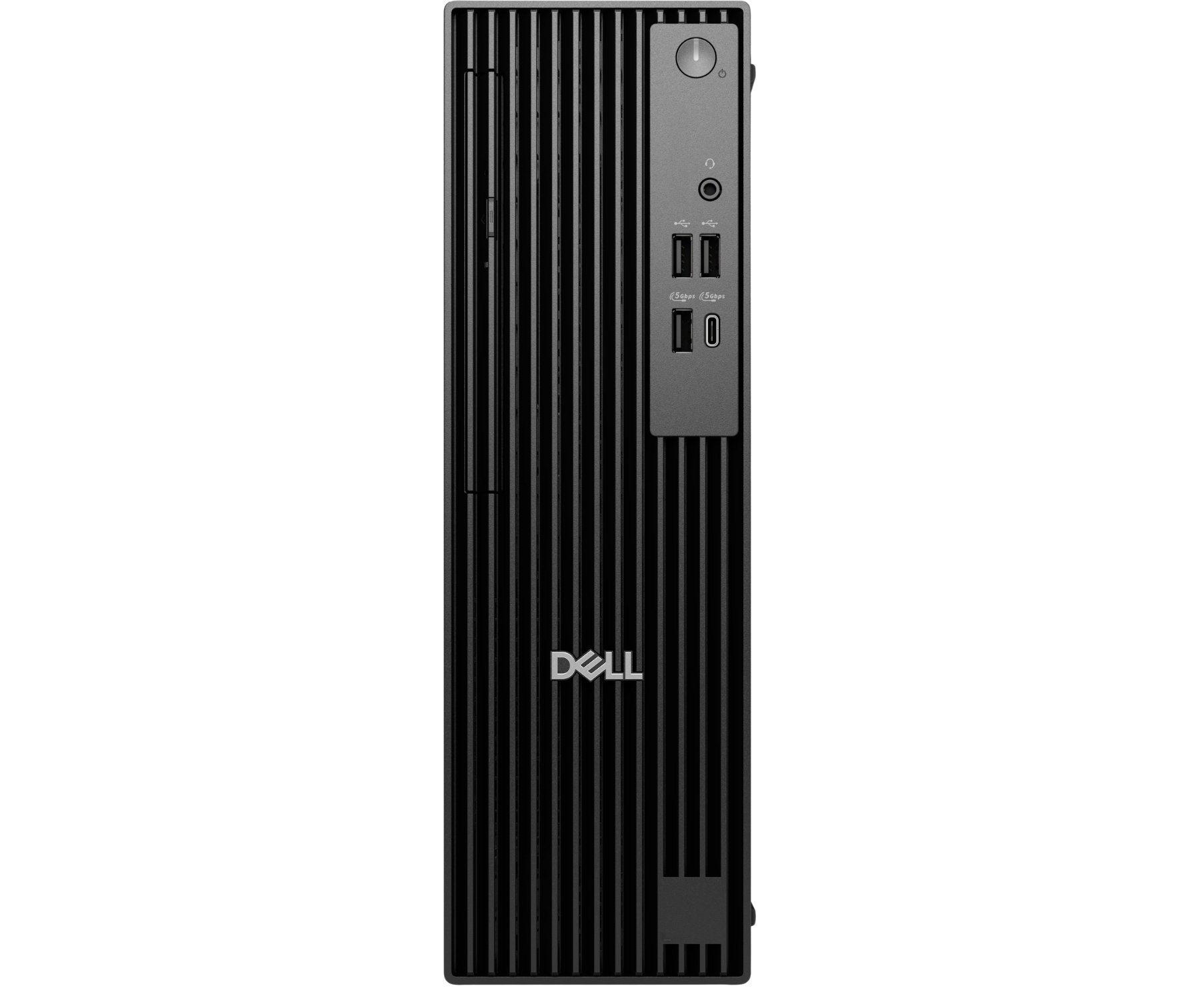

Front view

1. Power Button with diagnostic LED
2. Global Headset Jack
3. Optical Disc Drive (optional)
4. USB 2.0 (480 Mbps) Type-A Port
5. USB 2.0 (480 Mbps) Type-A Port with PowerShare
6. USB 3.2 Gen 2 (10 Gbps) Type-A Port
7. USB 3.2 Gen 2x2 (20 Gbps) Type-C Port

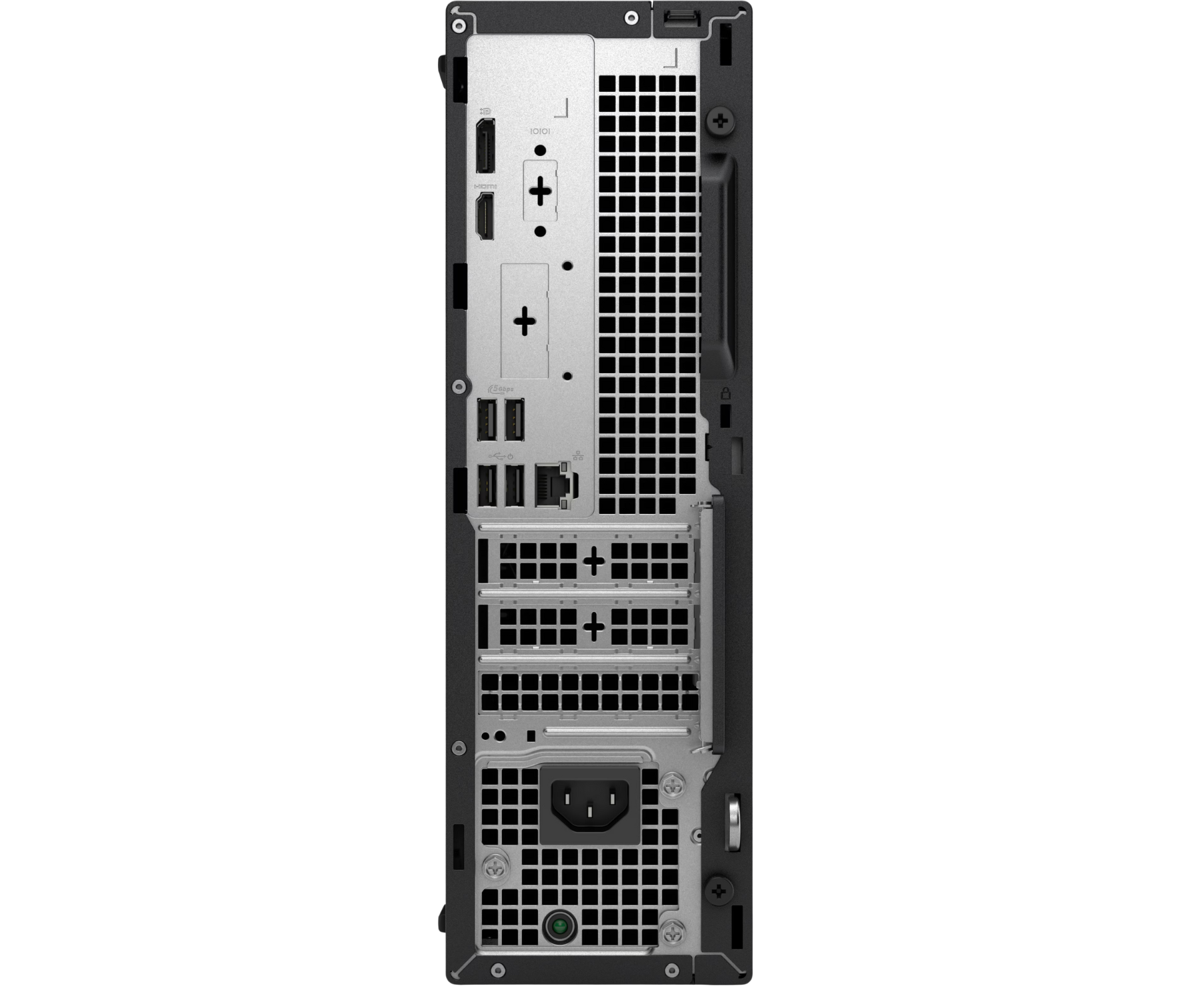

Rear view

8. DisplayPort 1.4a, up to 5120 x 3200 @60Hz
9. HDMI 2.1, up to 4096 x 2160 @60Hz
10. Serial Port (optional)
11. Optional port
12. USB 3.2 Gen 1 (5 Gbps) Type-A Port
13. USB 3.2 Gen 1 (5 Gbps) Type-A Port
14. Kensington Security Cable Slot
15. USB 2.0 (480 Mbps) Type-A Port with SmartPower On
16. USB 2.0 (480 Mbps) Type-A Port with SmartPower On
17. RJ-45 Ethernet Port (1 Gbps)
18. 3x Expansion Slots
19. Power-cord Connector Port
20. Padlock Ring
21. Power-supply Diagnostic Light

Dimensions & Weight
