Dell Pro Dock - WD25
Boost your productivity with the latest pro dock that offers up to 100W power delivery and a wide variety of connecting options.
Fuel your productivity
Gain the versatility to create your ideal workspace with a dock featuring 6 USB ports, support for 4 displays and driving up to 100W of power delivery to the latest Dell AI PCs for optimal productivity.
Specifications
Overview:
- Connectivity: Wired
- Displays Supported: 4
- Device Supported: Notebook
- Ethernet: RJ45 (2.5GbE)
- Management Features:
- MAC address pass‑through
- PXE Boot
- Dock Power Button Sync
- Wake‑On‑LAN
- WLAN‑to‑LAN switch
- Kernel DMA protection
- Host PC firmware update
- Firmware update on disconnect
- Port disablement
- MAC address pass‑through
Video Resolution Support::
- DP 1.4 with DSC:
- Up to 6K / 5K / WQHD
- Up to 6K / 5K / WQHD
- DP 1.4 without DSC:
- Up to 4K / QHD / FHD / HD
Interfaces & Ports:
- Video Interfaces:
- 2 × DisplayPort 1.4
- 1 × HDMI 2.1
- 1 × USB‑C 3.2 Gen 2 (DP 1.4)
- 2 × DisplayPort 1.4
- USB (Data):
- 4 × USB‑A 3.2 Gen 2 (10Gbps)
- 1 × USB‑C 3.2 Gen 2 (10Gbps)
- 4 × USB‑A 3.2 Gen 2 (10Gbps)
- USB (Power):
- 4 × USB‑A (4.5W each)
- 1 × USB‑C (15W)
- 1 × USB‑C (7.5W)
- 4 × USB‑A (4.5W each)
- All USB ports deliver power with or without a PC
Power Delivery:
- 100W (Dell systems)
- 96W (non-Dell systems)
Software Compatibility:
- Windows 10, Windows 11
- Ubuntu, Red Hat Enterprise
- Linux, ChromeOS
Power:
- Maximum Power Supply: 130W
Dimensions & Weight:
- 8.07" H, 3.54" W, 1.39" D
- Weight: 1.24 lb
Package Contents:
- Docking station
- Power adapter and power cord
- Quick Start Guide and documentation
- Kensington Security Slot: Yes
Designed for sustainability
The Dell Pro Dock is built with at least 65% post-consumer recycled materials and packaged with 100% recycled or renewable packaging.
Improved Manageability
Manage your dock from the Dell Device Management Console by utilizing Dell Display and Peripheral Manager installed on your PC.
Simplify Firmware Updates
Reduce IT complexity by deploying a single firmware file across workspaces. Minimize end-user disruption with silent firmware updates that are executed upon dock disconnection.
Work with Confidence
Enhance your docking experience with universally compatible features including MAC Address Pass-Through and Power Button Sync, for a better docking experience across brands.
Ports and slots

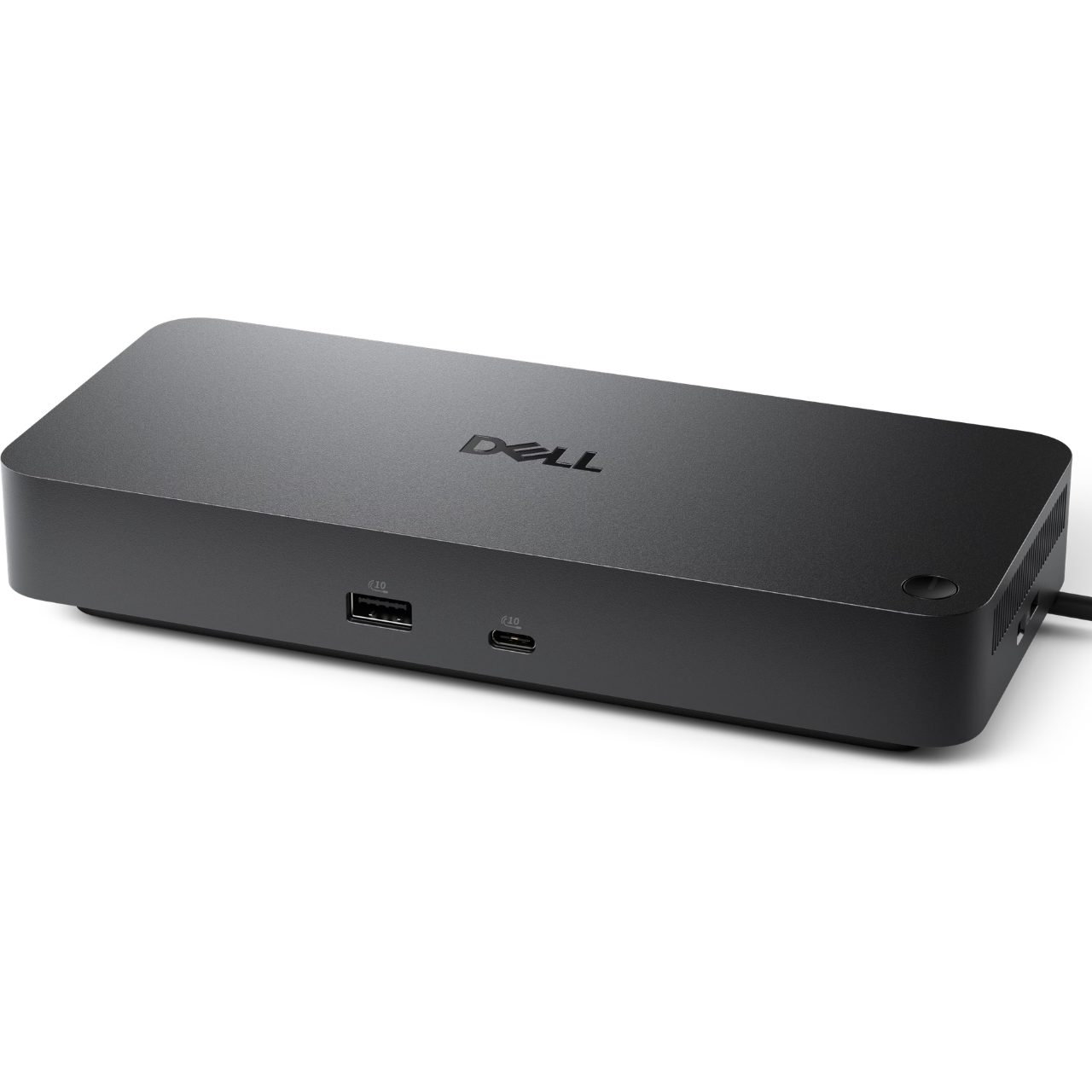

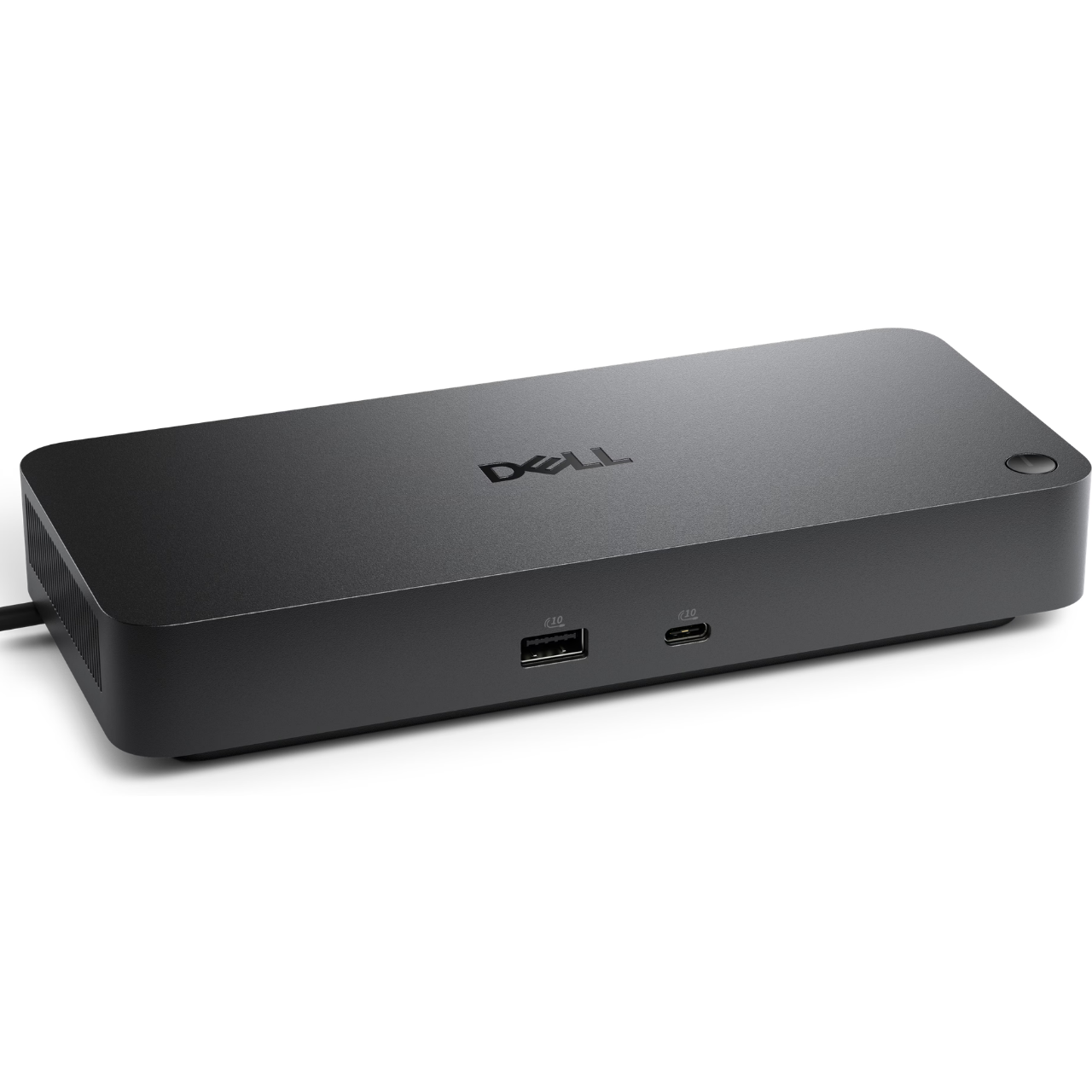

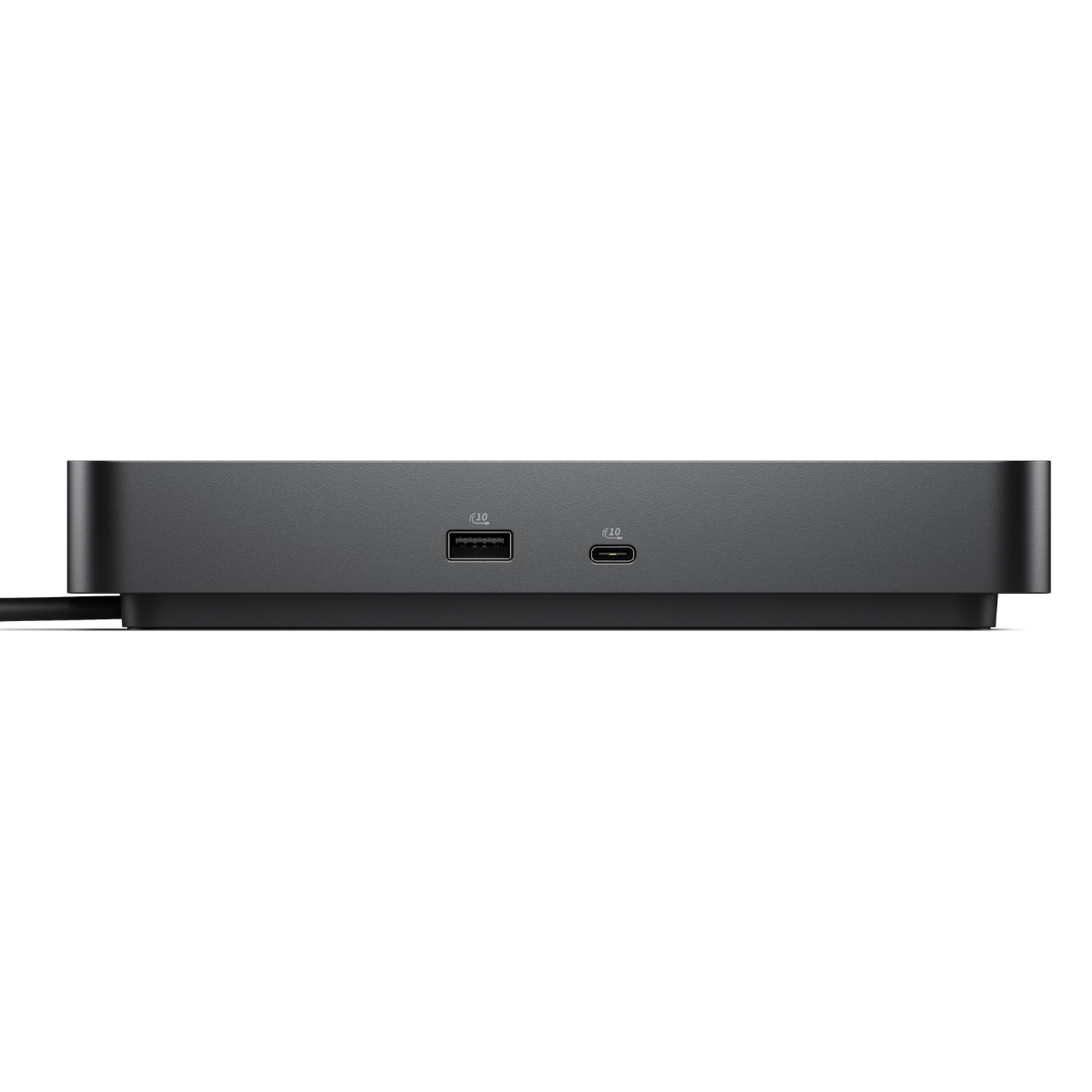

Front side:
- 1. USB-A 3.2 Gen 2 with
PowerShare
- 2. USB-C 3.2 Gen 2

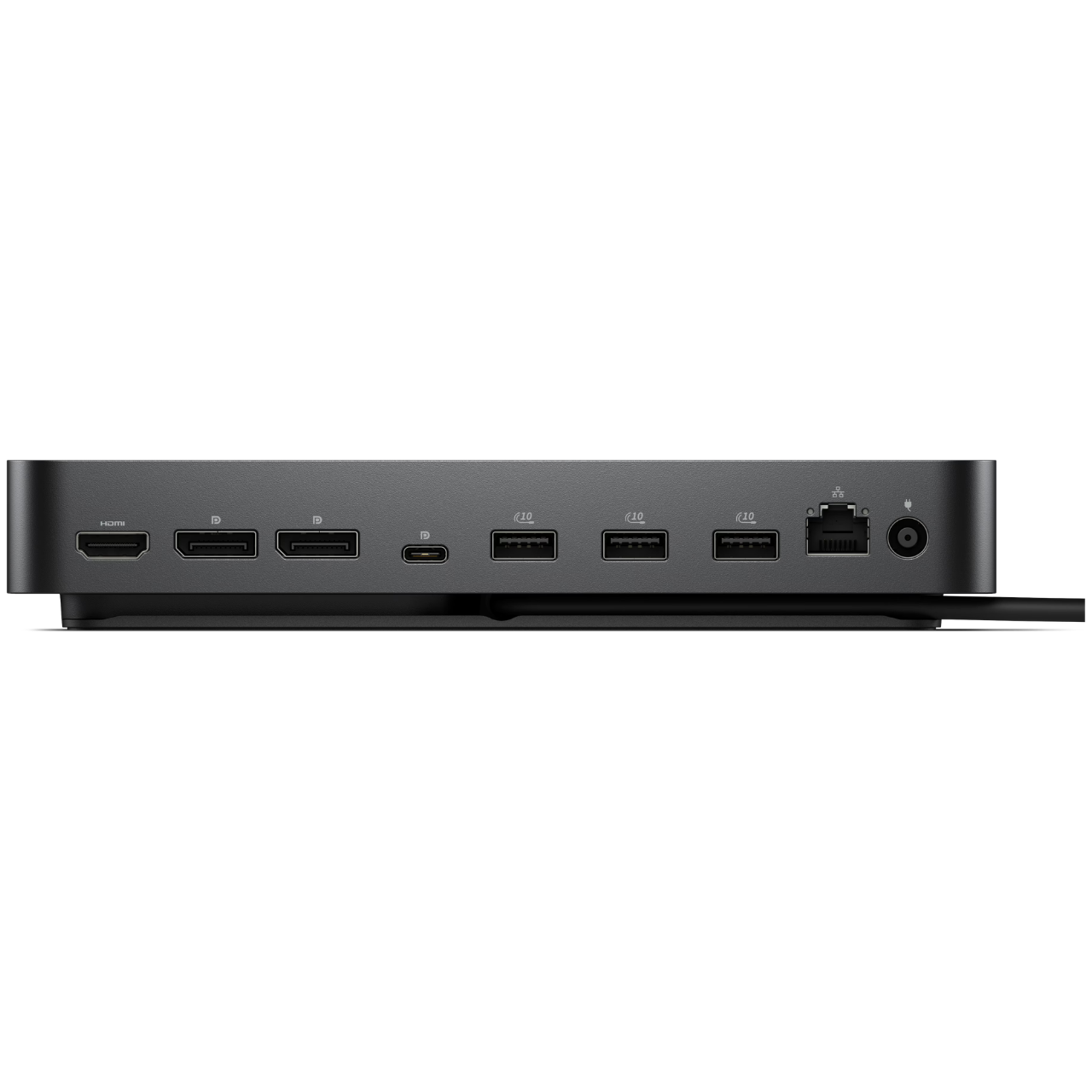

Rear side:
- 3. HDMI 2.1
- 4. DisplayPort 1.4
- 5. DisplayPort 1.4
- 6. USB-C 3.2 Gen 2 Multifunction DisplayPort 1.4
- 7. USB-A 3.2 Gen 2 with PowerShare
- 8. USB-A 3.2 Gen 2 with PowerShare
- 9. USB-A 3.2 Gen 2 with PowerShare
- 10. 2.5 Gigabit Ethernet (RJ45)
- 11. Power In
Connect your way
Configure your workspace to your liking with an ambidextrous USB-C cable that can be routed left or right.
