Overview:

• Processor: 14th Gen Intel Core i5‐14500T vPro (24 MB cache, 14 cores, 20 threads, 1.70 GHz to 4.80 GHz Turbo, 35W)
• Operating System: Windows 11 Pro
• Graphics: Intel® UHD Graphics

Memory & Storage:

• RAM: 8 GB DDR5, 5600 MT/s, SoDIMM, single-channel (configurable up to 64 GB)
• Storage: 512 GB M.2 PCIe Gen 4 NVMe SSD (Class 25)

Connectivity:

• Wireless: Intel Wi-Fi 6E AX211, 2x2, 802.11ax, MU-MIMO, Bluetooth 5.3

Security & Software:

• Security Features: Dell Trusted Device, Dell SafeData, McAfee Business Protection
• Software: Dell Optimizer, SupportAssist, Dell Digital Delivery, Microsoft Office options, Adobe Creative Cloud, CyberLink Suite


Build & Design:

• Dimensions:
  • Height: 182.00 mm (7.17 in.)
  • Width: 36.00 mm (1.42 in.)
  • Depth: 178.00 mm (7.01 in.)
• Weight:
  • Minimum: 1.094 kg (2.41 lb)
  • Maximum: 1.34 kg (2.95 lb)

Power & Battery:

• Power Adapter: 65W or 90W AC Adapter (7.4 mm barrel)

Keyboard:

• English Keyboard & Mouse

Regulatory:

• Product Safety, EMC and Environmental Datasheets
• Dell Regulatory Compliance Home Page
• Dell and the Environment


Port & Slots:

• Front:
  • 2 USB 2.0 (480 Mbps) Ports

  • 1 USB 3.2 Gen 1x1 (5 Gbps) Type-C Port

  • 1 USB 3.2 Gen 1 (5 Gbps) Type-A Port

  • 1 Universal Audio Jack

• Rear:
  • 2 USB 2.0 (480 Mbps) Ports with SmartPower On

  • 2 USB 3.2 Gen 1 (5 Gbps) Ports

  • 1 DisplayPort 1.4a Port

  • 1 HDMI 1.4b Port

  • 1 RJ-45 Ethernet Port 10/100/1000 Mbps
• Slots:
  • 1 Half-height Gen3 PCIe x16 slot

  • 1 Half-height Gen3 PCIe x1 slot

  • 1 SATA 2.0 slot for slim optical drive

  • 1 SATA 3.0 slot for hard drive

  • 1 M.2 2230 slot for WiFi and Bluetooth combo card

  • 1 M.2 2230/2280 slot for solid-state drive

High-speed productivity

Up to 128GB of next gen DDR5 memory means more multitasking capabilities and smoother transitions between applications.

Supports 4 displays

iGFX support for up to 4 simultaneous displays with up to 4K resolution.

Discrete Graphics

Enjoy a smooth viewing experience, free of refresh interruptions.

Improved thermals and acoustics

New thermal options allow you to set the system in quiet mode.

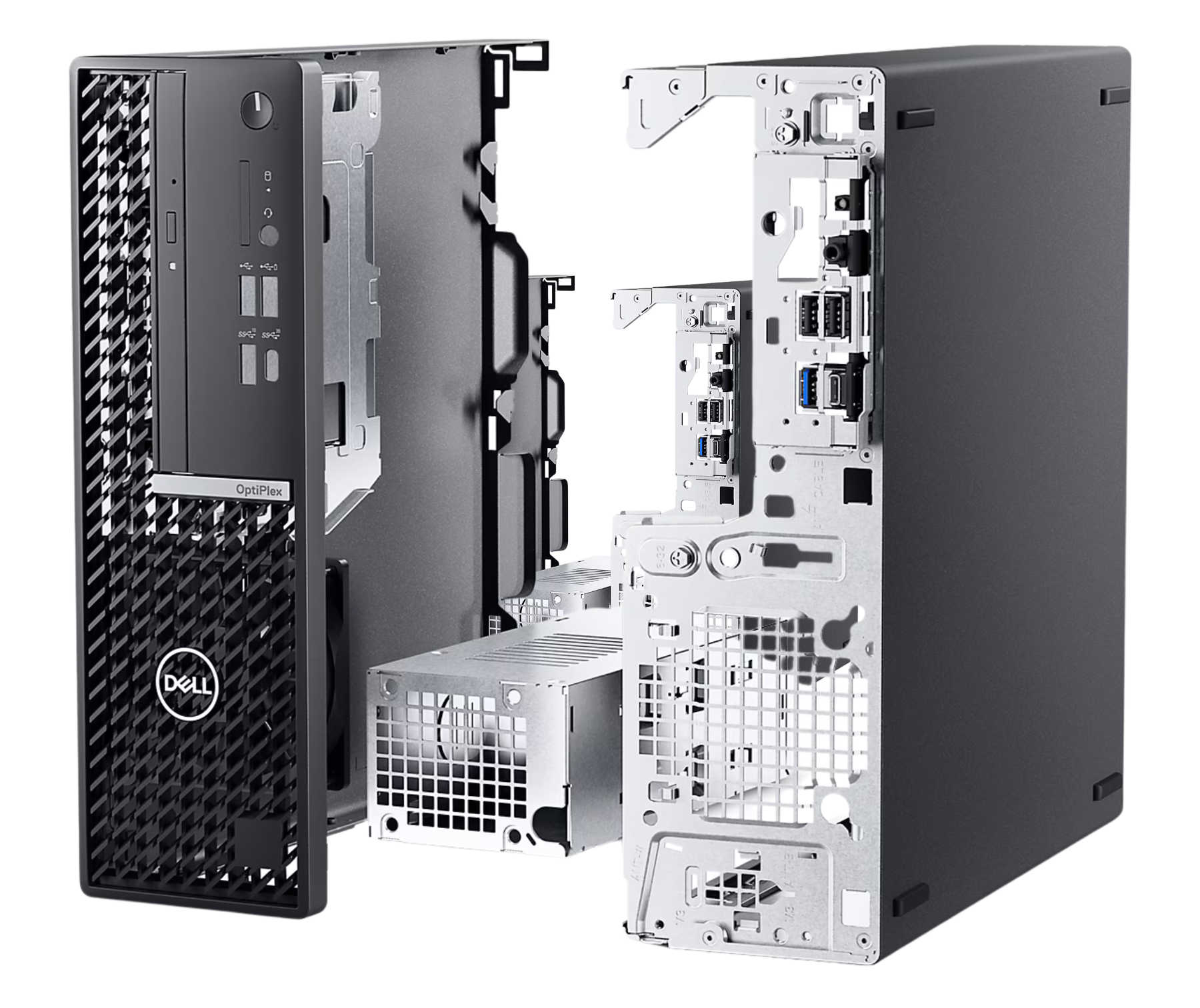

Compact design

Get maximum productivity with minimal footprint.

Convenient connection

Easily connect your OptiPlex with the native USB Type-C 3.2 Gen 2 (10GB) on the front panel.

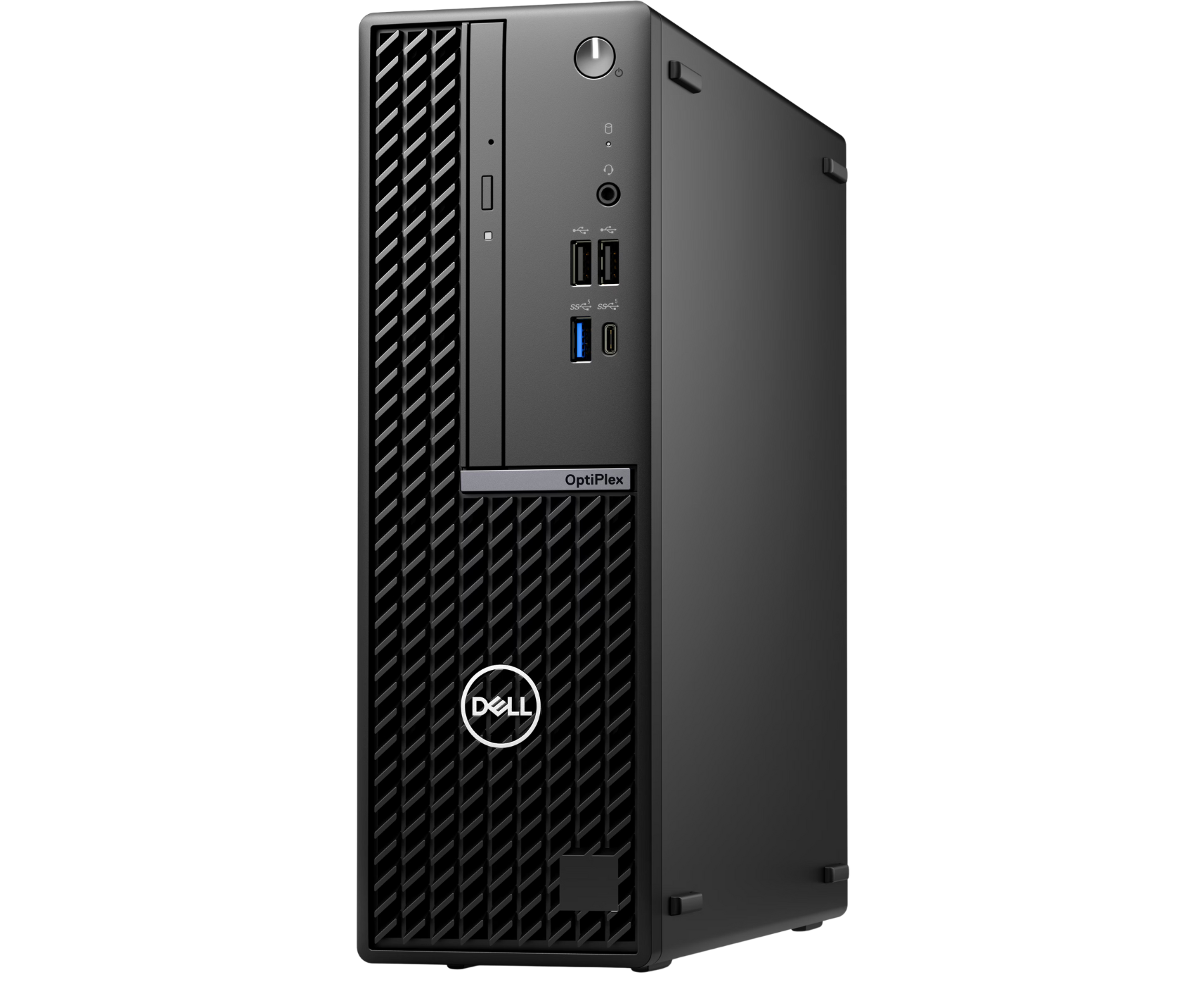

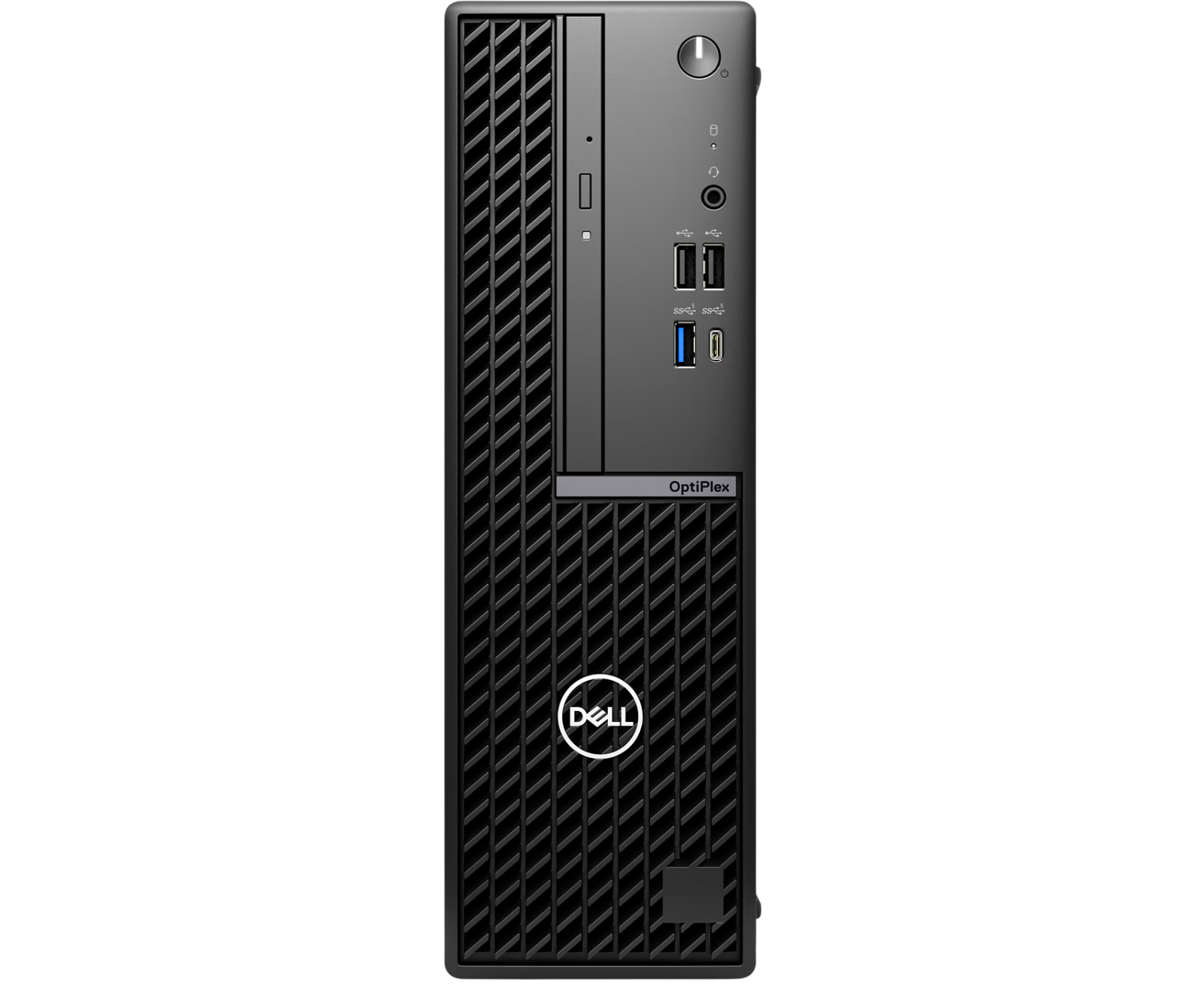

Front view

1. Power Button
2. Storage Activity Light
3. Universal Audio Jack
4. Optical Disc Drive (optional)
5. 2x USB 2.0 Port
6. USB 3.2 Gen 1 Type-A Port
7. USB 3.2 Gen 1x1 Type-C Port

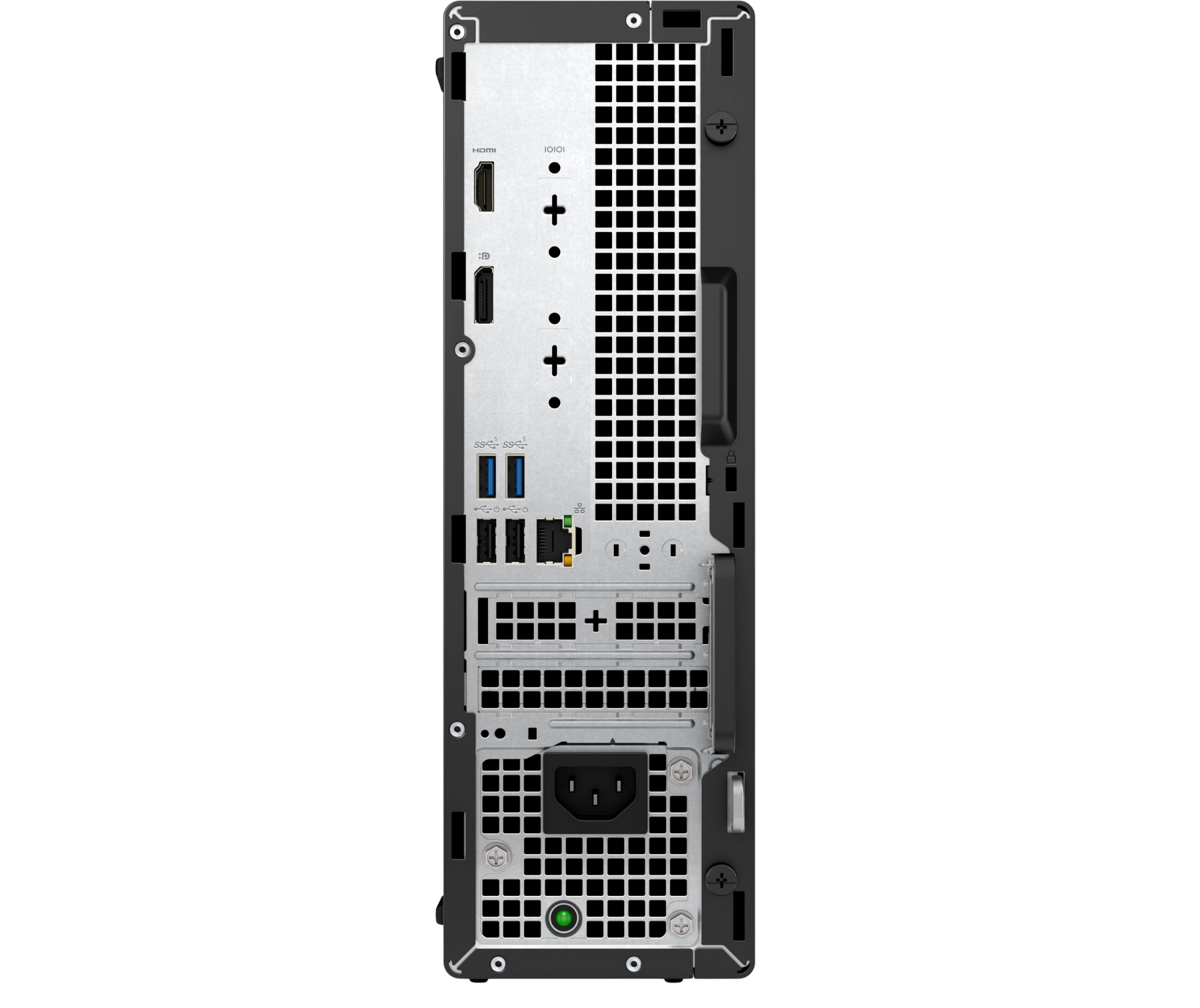

Rear view

8. HDMI 1.4b (up tp 1920 x 1200 @60Hz)
9. Serial Port (optional)
10. DisplayPort 1.4a (up to 4096 x 2304 @ 60Hz)
11. Video Port (optional)
12. 2x USB 3.2 Gen 1
13. 2x USB 2.0 with SmartPower On
14. 2x Expansion Slots
15. Power Cord Connector
16. Power Supply Diagnostic Light
17. Kensington Security Cable Slot
18. RJ-45 Ethernet
19. Padlock Ring

Dimensions & Weight
