Overview:

• Processor: 14th Gen Intel Core i5‐14500T vPro (24 MB cache, 14 cores, 20 threads, 1.70 GHz to 4.80 GHz Turbo, 35W)
• Operating System: Windows 11 Pro
• Graphics: Intel® UHD Graphics

Memory & Storage:

• RAM: 8 GB DDR5, 5600 MT/s, SoDIMM, single-channel (configurable up to 64 GB)
• Storage: 512 GB M.2 PCIe Gen 4 NVMe SSD (Class 25)

Connectivity:

• Wireless: Intel Wi-Fi 6E AX211, 2x2, 802.11ax, MU-MIMO, Bluetooth 5.3

Security & Software:

• Security Features: Dell Trusted Device, Dell SafeData, McAfee Business Protection
• Software: Dell Optimizer, SupportAssist, Dell Digital Delivery, Microsoft Office options, Adobe Creative Cloud, CyberLink Suite


Build & Design:

• Dimensions:
  • Height: 182.00 mm (7.17 in.)
  • Width: 36.00 mm (1.42 in.)
  • Depth: 178.00 mm (7.01 in.)
• Weight:
  • Minimum: 1.094 kg (2.41 lb)
  • Maximum: 1.34 kg (2.95 lb)

Power & Battery:

• Power Adapter: 65W or 90W AC Adapter (7.4 mm barrel)

Keyboard:

• English Keyboard & Mouse

Regulatory:

• Product Safety, EMC and Environmental Datasheets
• Dell Regulatory Compliance Home Page
• Dell and the Environment


Port & Slots:

• Front Ports:

  • 1 x USB 3.2 Gen 1 Type-A (PowerShare)
  • 1 x USB 3.2 Gen 2x2 Type-C
  • 1 x Universal Audio Jack

• Rear Ports:

  • 1 x RJ-45 Ethernet Port
  • 1 x HDMI 1.4b Port
  • 1 x DisplayPort 1.4a
  • 2 x USB 2.0 Type-A Ports (1 with SmartPower On)
  • 2 x USB 3.2 Gen 1 Type-A Ports
  • 1 x Power Adapter Port
  • Optional: VGA / PS2 / Serial / USB-C with DisplayPort Alt mode + Power Delivery

• Slots:

  • 1 x M.2 2230 slot for Wi-Fi/Bluetooth combo
  • 2 x M.2 2230/2280 slots for SSDs

High-speed productivity

Up to 64GB DDR5 memory means more multitasking capabilities and smoother transitions between applications.

Supports 4 displays

iGFX support for up to 4 simultaneous displays with up to 4K resolution.

All-in-One Experience

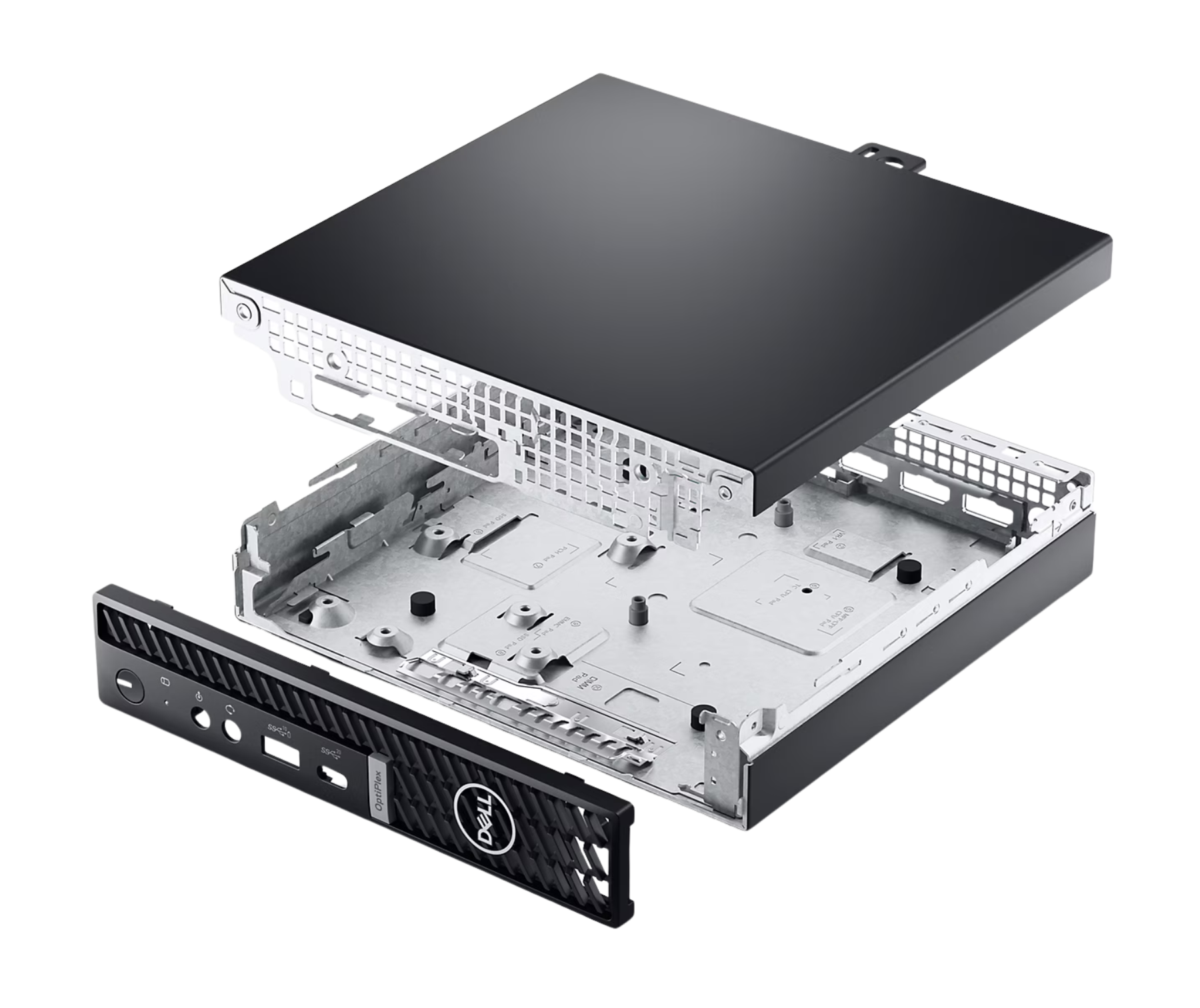

Enjoy a modular All-in-One setup with your Micro Form Factor with upgradeable monitor and mounting options.

Clean-desk solution

Enjoy minimal cables and easy management of device and monitor with our optional Single Cable Type-C Power Delivery (PD) solution.

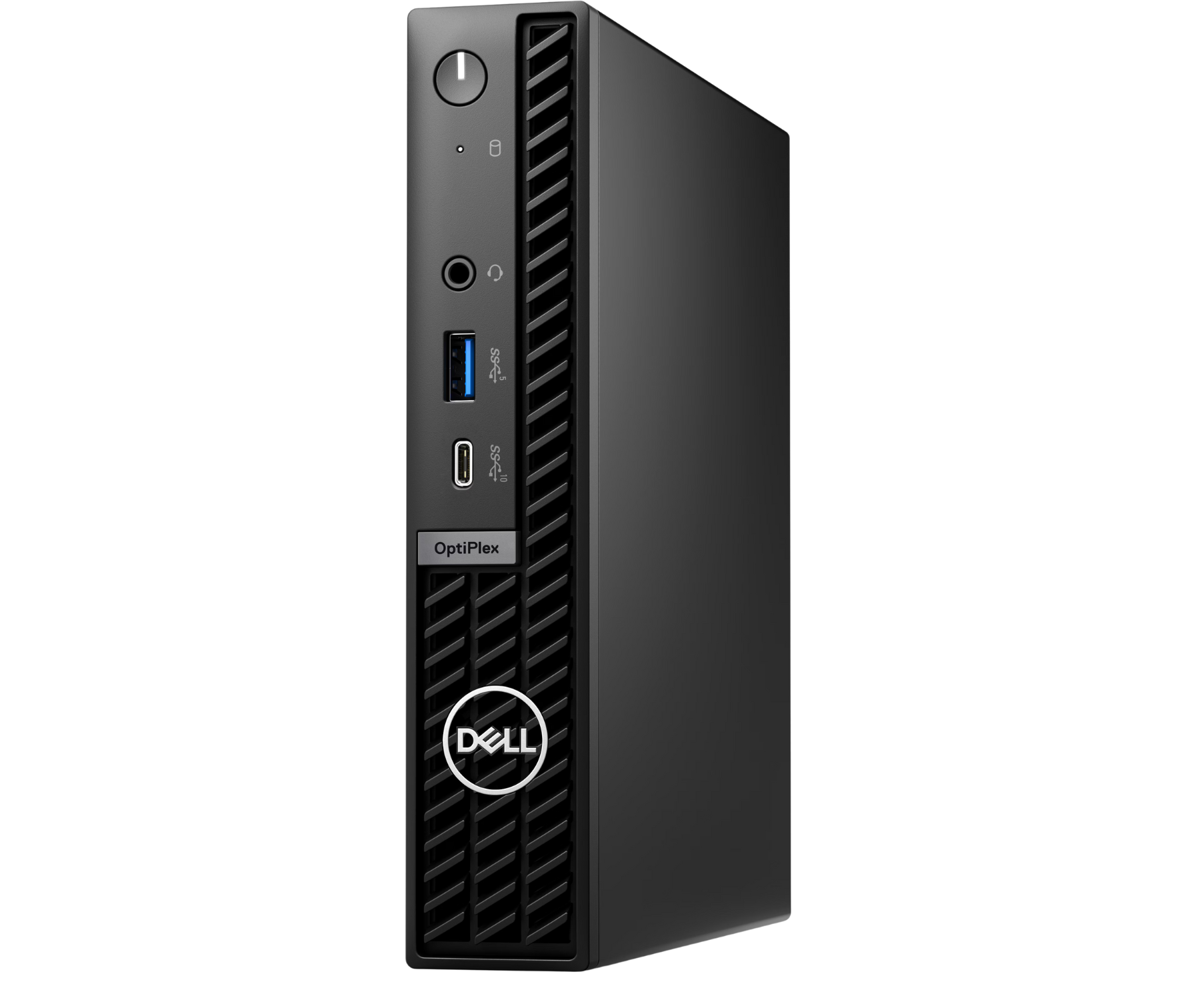

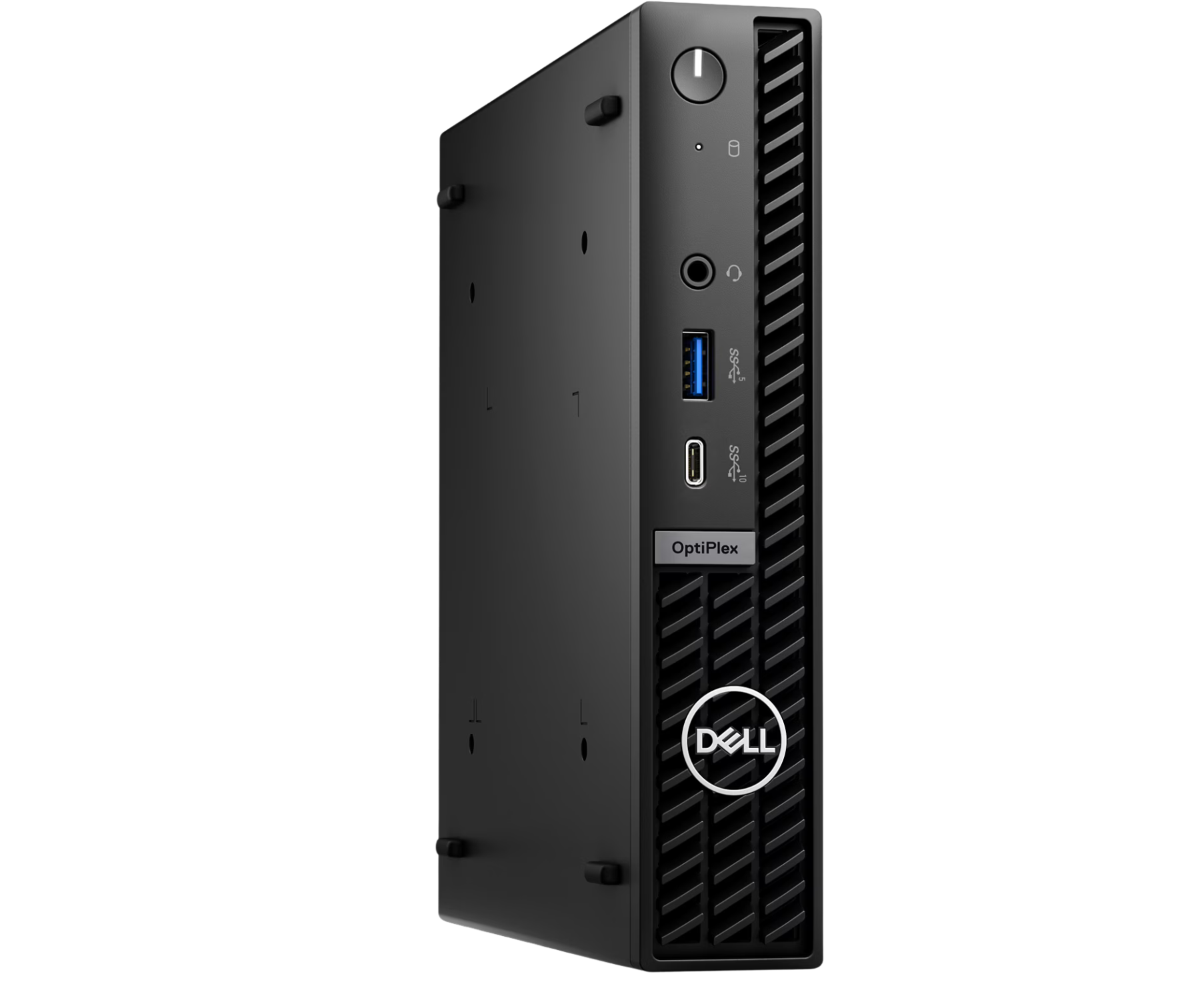

Compact design

Get maximum productivity with minimal footprint.

Convenient connection

Easily connect your OptiPlex with the native USB Type-C 3.2 Gen 2 (10GB) on the front panel.

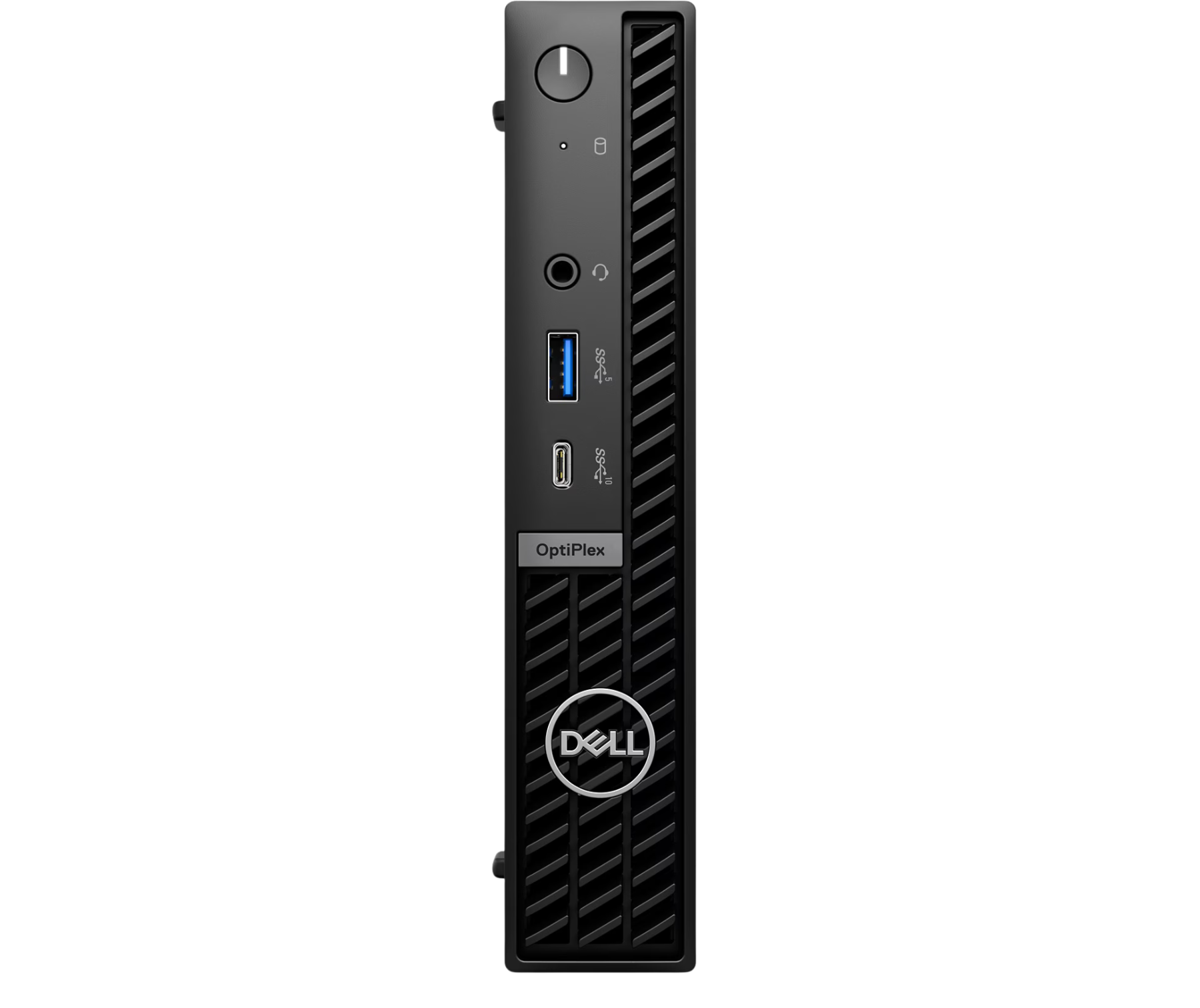

Front view

1. Power Button
2. Storage Activity Light
3. Universal Audio Port
4. USB 3.2 Type-A Gen 1
5. USB 3.2 Type-C Gen 2x2

Rear view

6. Optional Wireless Antenna
7. RJ-45 Ethernet Port
8. Optional Modules
9. USB 2.0 Type-A with SmartPower On
10. USB 2.0 Type-A
11. 2x USB 3.2 Type-A Gen 1
12. Kensington Security Cable Slot and Padlock Ring
13. HDMI 1.4b
14. DisplayPort 1.4a
15. Power Connector

Dimensions & Weight
