Ubiquiti UISP airMAX NanoStation Loco 5 (NSLoco5)
Ubiquiti Building to Building Bridge (UBB)
BZ$1,925.00
BZ$250.00
GST included, shipping calculated at checkout
airMAX NanoStation M5 Loco Low-cost and efficient broadband 5 GHz CPE. Technical Specification Category Details Dimensions 161 x 31 x 80 mm (6.3 x 1.2 x 3.2") Weight 180 g (6.4 oz) Enclosure Material Outdoor UV-stabilized plastic Mounting Pole-mount (Kit included) Networking Interface (1) 10/100 MbE RJ45 port Power Method...
Return Policy

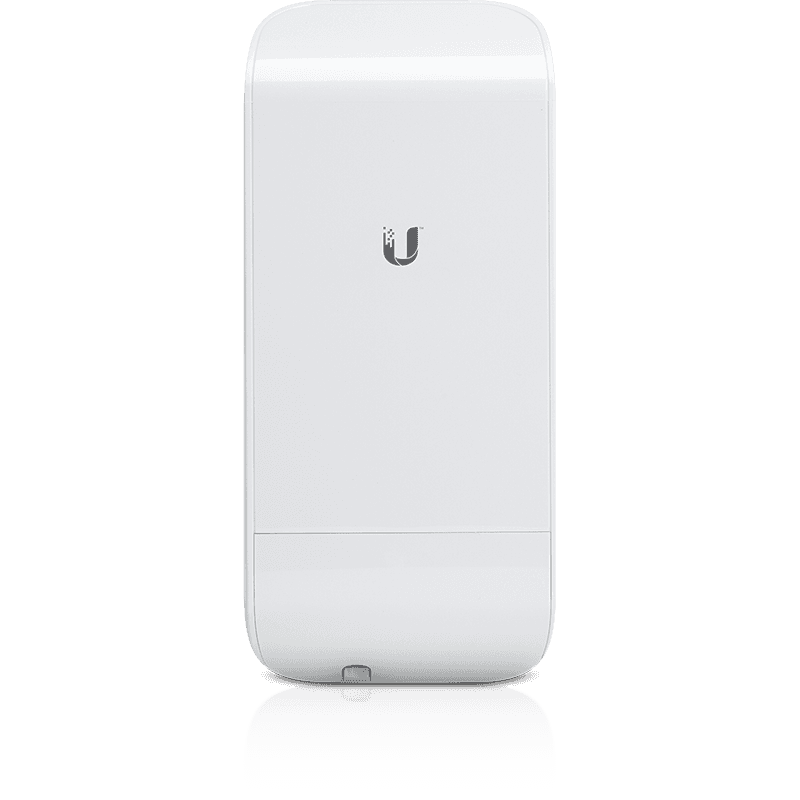

airMAX NanoStation M5 Loco
Low-cost and efficient broadband 5 GHz CPE.
Technical Specification
| Category | Details |
|---|---|
| Dimensions | 161 x 31 x 80 mm (6.3 x 1.2 x 3.2") |
| Weight | 180 g (6.4 oz) |
| Enclosure Material | Outdoor UV-stabilized plastic |
| Mounting | Pole-mount (Kit included) |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A PoE adapter (Included) |
| Supported Voltage Range | 22–27V DC |
| Max. Power Consumption | 5.5W |
| Ambient Operating Temperature | -30 to 75° C (-22 to 167° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Shock & Vibration | ETSI300-019-1.4 |
| Certifications | FCC, IC, CE, RoHS |
| Frequency | 5 GHz |
| Operating Frequency (MHz) - Worldwide | 5170-5875 MHz |
| Operating Frequency (MHz) - USA | U-NII-1: 5725-5850 MHz USA DFS: 5250-5850 MHz |
| Gain | 13 dBi |
| Cross-pol Isolation | 20 dB Min. |
| Max. VSWR | 1.4:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual Linear |
