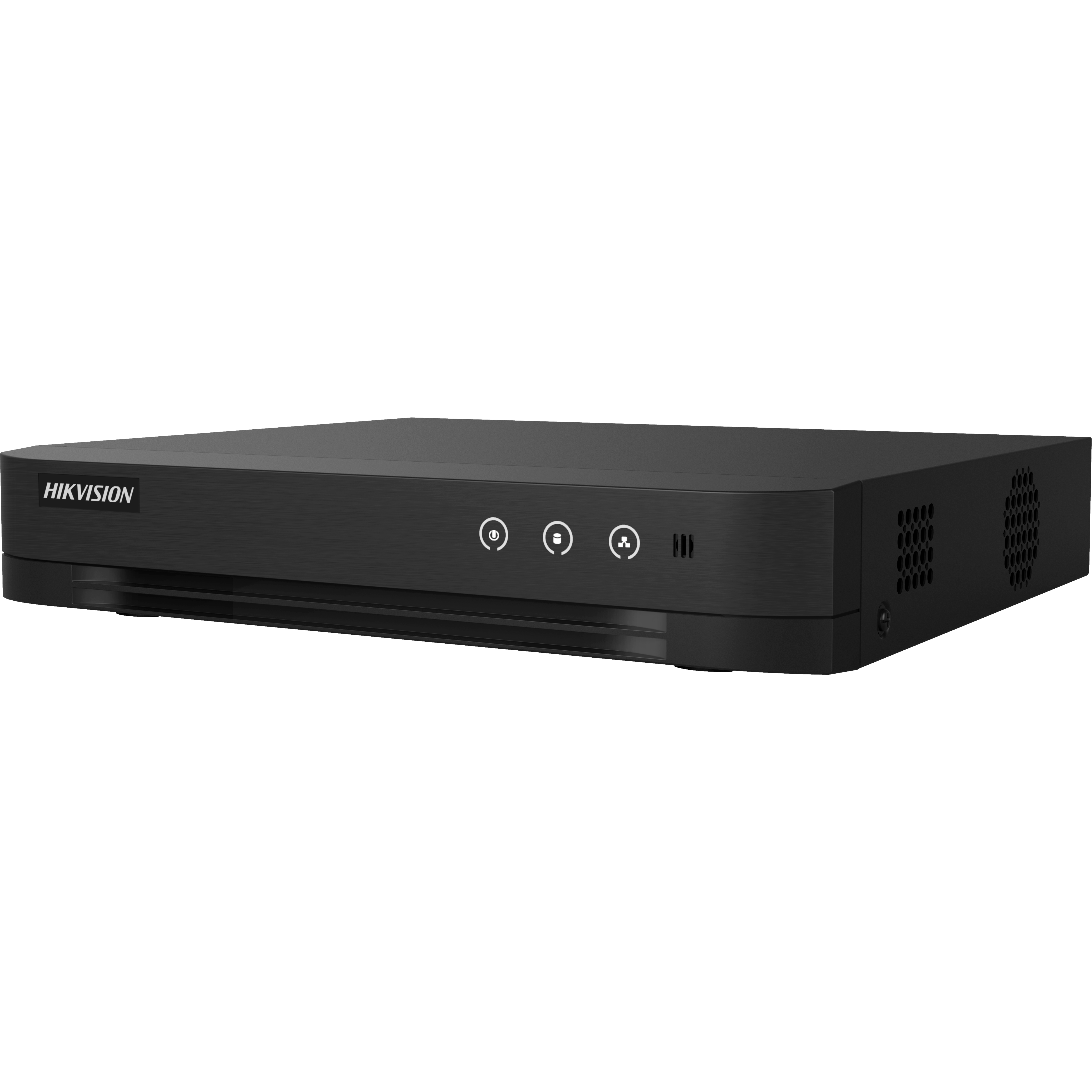

Hikvision 8-Channel 1080p Lite 1U H.265 DVR [No HDD] (DS-7208HGHI-K1)

H.265 Pro+/H.265 Pro/H.265 video compression

HDTVI/AHD/CVI/CVBS/IP video input

Audio via coaxial cable

Up to 10-ch IP camera input (up to 5 MP)

Up to 1080p Lite@15 fps encoding capability

Max. 1200 m for 720p HDTVI signal

Recording:

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution:
  • For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
  • For 720p stream access: 720p/WD1/4CIF/VGA/CIF
  • For SD stream access: WD1/4CIF/VGA/CIF
• Frame Rate:
  • Main stream:
    • For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
    • For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
    • For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
  • Sub-stream:
    • For 1080p and 720p stream access: CIF/QVGA@15 fps
    • For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
• Video Bitrate: 32 Kbps to 4 Mbps
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps

Video and Audio:

• IP Video Input:
  • 2-ch (up to 10-ch)
  • Up to 5 MP resolution
  • Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input:
  • 8-ch
  • BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI Input: 1080p25, 1080p30, 720p25, 720p30
• AHD Input: 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
• CVBS Input: Support
• HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode: HDMI/VGA simultaneous output
• Audio Input:
  • 1-ch RCA (2.0 Vp-p, 1 KΩ)
  • 8-ch via coaxial cable
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: Reuse the first audio input
• Synchronous playback: 8-ch


Motion Detection 2.0:

• Human/Vehicle Analysis:
  • Deep learning-based motion detection 2.0 is enabled by default for all analog channels.
  • Can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights.
  • Quick search by object or event type is supported.


Network:

• Total Bandwidth: 72 Mbps
• Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
• Remote Connection: 64
• Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface


Auxiliary Interface:

• SATA: 1 SATA interface
• Capacity: Up to 4 TB capacity for each disk
• USB Interface: Rear panel: 2 × USB 2.0
• Alarm In/Out: N/A


Interfaces/Ports:

• HDMI: Yes (Version 2.0)
• Headphone: Yes
• DisplayPort: Yes (Version 1.4)
• Number of DisplayPorts: 1
