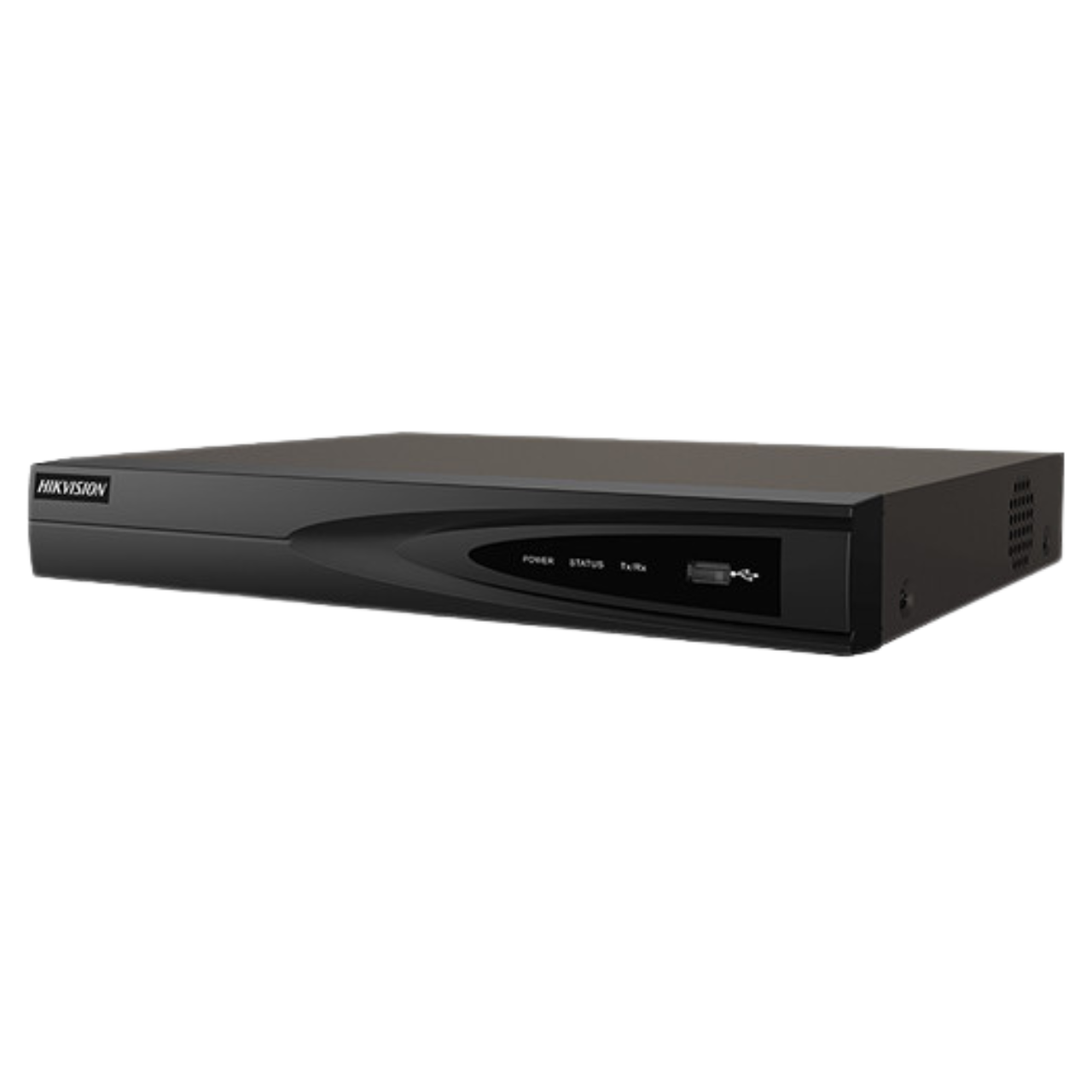

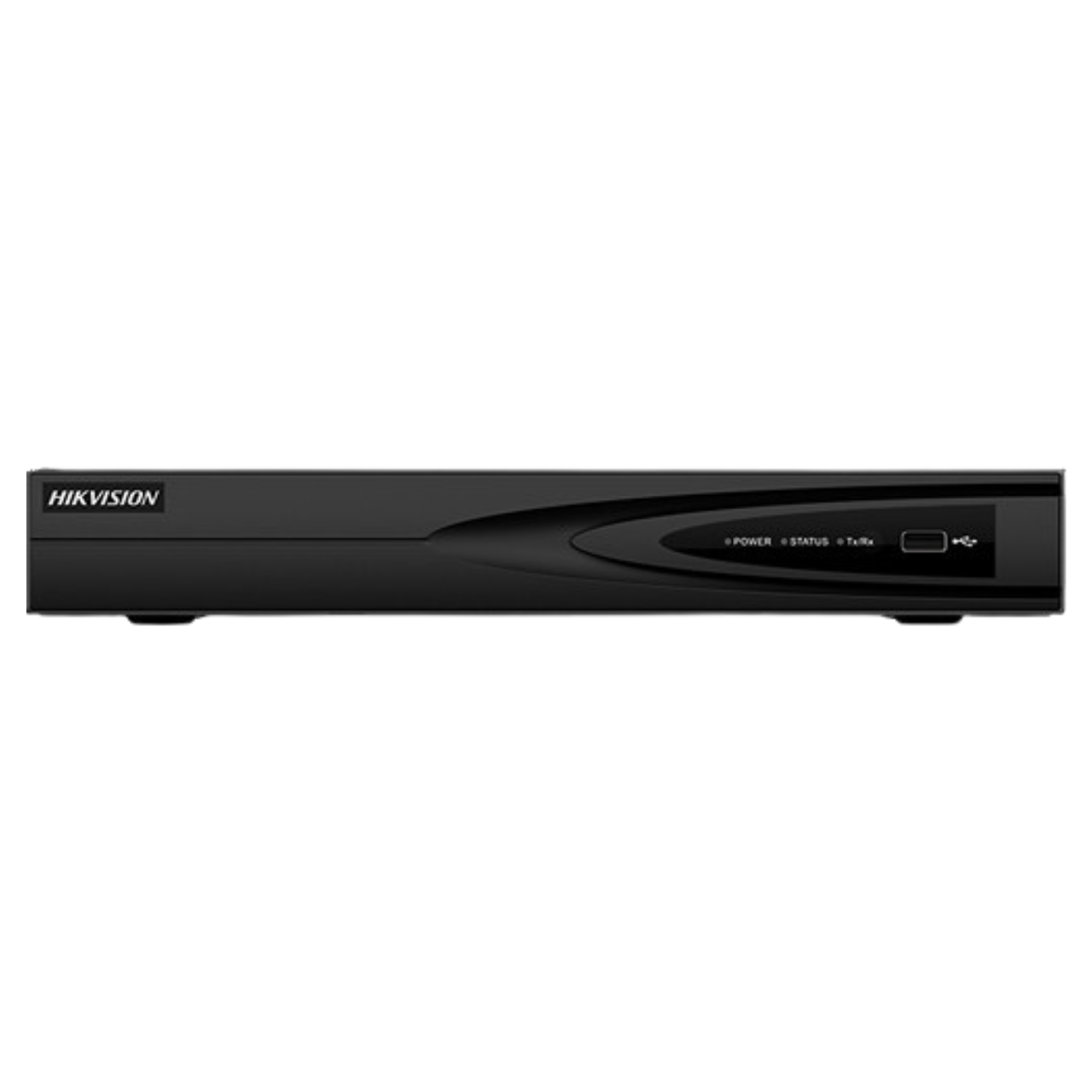

Hikvision 4-Channel 12MP UHD PoE NVR [No HDD] (DS-7604NI-K1/4P)

Up to 4-ch IP camera inputs

H.265+/H.265/H.264+/H.264 video formats

Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity

Up to 40 Mbps incoming bandwidth

Recording:

• Video Compression: H.265+/H.265/H.264+/H.264
• Recording Resolution: 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
• Decoding Capability:
  • 1-ch @ 8 MP (30 fps)
  • 3-ch @ 4 MP (30 fps)
  • 6-ch @ 1080p (30 fps)
• Synchronous Playback: 4-ch
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw, G.711alaw, G.722, G.726


Auxiliary Interface:

• SATA: 1 interface, up to 8 TB
• USB: 2 × USB 2.0
• Alarm In/Out: Not available (4/1 optional)


Video and Audio:

• P Video Input: 4-ch
• HDMI Output: 1-ch, up to 4K (4096 × 2160 @ 30 Hz)
• VGA Output: 1-ch, up to 1920 × 1080 @ 60 Hz
• Video Output Mode: HDMI/VGA simultaneous
• Audio Output: 1-ch RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch RCA (2.0 Vp-p, 1 KΩ)


General:

• Power Supply: 48 VDC, 1.35 A
• Power Consumption: ≤ 10 W (without HDD and PoE off)
• Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Operating Humidity: 10% to 90%
• Dimensions (W × D × H): 12.6 × 9.4 × 1.9 in (320 × 240 × 48 mm)
• Weight: ≤ 2.6 lb (1.18 kg, without HDD)


Motion Detection 2.0:

• Human/Vehicle classification
• 1-ch analysis
• Reduces false alarms
• Quick search by object or event


Network:

• Incoming Bandwidth: 40 Mbps
• Outgoing Bandwidth: 80 Mbps
• Remote Connections: Up to 32
• Network Protocols: TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 1 × RJ-45 10/100 Mbps Ethernet
