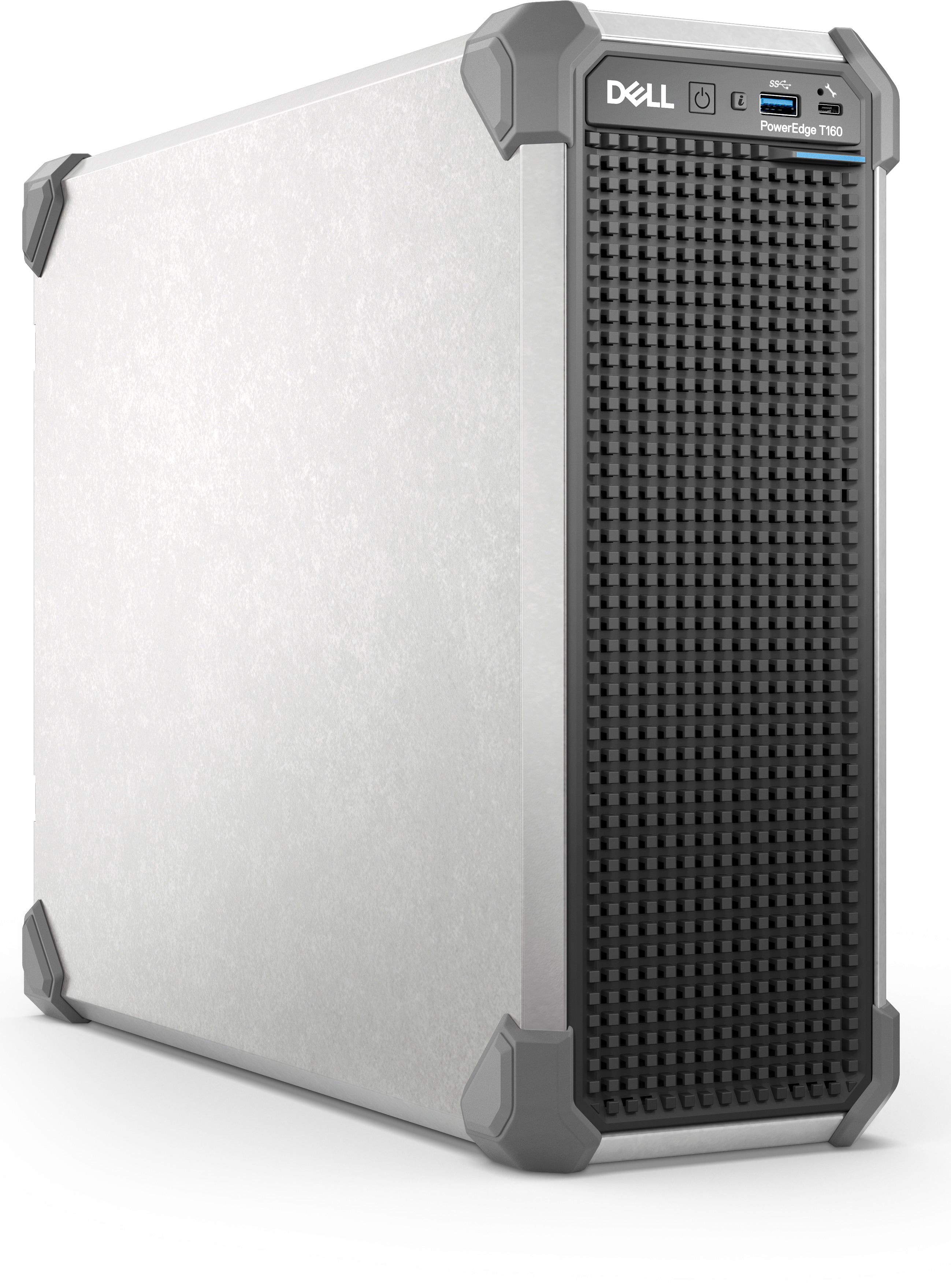

PowerEdge T160
Deliver powerful compute with a single processor server
The Dell PowerEdge T160 is a compact tower server in PowerEdge portfolio. With a space-saving chassis and powerful computing, it is designed to support the growing business of Small to Medium Businesses.
as DELL Gold Partners, we at GS-COM can configure servers to the specifications you require, let us know exactly what you need!
| Processor | One Intel® Xeon® E-2400 series processor with up to 8 cores or One Intel® Pentium® G7400/ G7400T processor with up to 2 cores |
| Memory | 4 DDR5 DIMM slots, supports UDIMM up to 32 GB per DIMM, speeds up to 4400 MT/s. Supports unregistered ECC DDR5 DIMMs only. |
| Storage Controllers | Internal: HBA355i Adapter, PERC H355 Adapter, PERC H755 Adapter. Internal Boot: Internal USB 3.0, or Boot Optimized Storage Subsystem (BOSS-N1) HWRAID 2 x M.2 SSDs. External HBA (non-RAID): HBA355e Adapter. Software RAID: S160. |
| Drive Bays | Front bays: Up to 3 x 3.5-inch cable SAS/SATA HDD/SSD, max 48 TB. Up to 3 x 3.5-inch + 2 x 2.5-inch cable SAS/SATA HDD/SSD, max 63.36 TB. |
| Power Supplies | 300 W Bronze 100—240 V AC, cabled. 500 W Platinum 100—240 V AC, cabled. |
| Cooling Options | Air cooling. |
| Fans | One Standard (STD) fan and one optional High performance (HPR) fan. Up to two cabled fans. |
| Dimensions | Height – 332.5 mm (13.09 inches). Width – 132.52 mm (5.21 inches). Depth – 408.8 mm (16.09 inches) (with bezel). |
| Form Factor | 3U tower server. |
| Embedded Management | iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Manual. |
| Bezel | Filter bezel* |
| OpenManage Software | OpenManage Enterprise, OpenManage Power Manager plugin, OpenManage Service plugin, OpenManage Update Manager plugin, CloudIQ for PowerEdge plugin, OpenManage Enterprise Integration for VMware vCenter, OpenManage Integration for Microsoft System Center, OpenManage Integration with Windows Admin Center. |
| Mobility | OpenManage Mobile |
| OpenManage Integrations | BMC Truesight, Microsoft System Center, OpenManage Integration with ServiceNow, Red Hat Ansible Modules, Terraform Providers, VMware vCenter and vRealize Operations Manager. |
| Security | Cryptographically signed firmware, Data at Rest Encryption (SEDs with local or external key mgmt), Secure Boot, Secured Component Verification (Hardware integrity check), Secure Erase, Secured-core server, Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter), TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ. |
| Embedded NIC | 2 x 1 GbE LOM |
| GPU Options | N/A |
| Ports |
Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 3.2 Gen1. Rear Ports: 3 x USB 2.0, 3 x USB 3.2 Gen1, 1 x Dedicated iDRAC Ethernet port, 1 x Serial, 1 x VGA, 2 x Ethernet ports. Internal Ports: 1 x USB 3.2 Gen1. |
| PCIe | Up to two PCIe slots. Slot 1: 1 x8 slot with x4 bandwidth, Half Height, Half Length. Slot 2: 1 x16 slot with x16 bandwidth, Half Height, Half Length. |
| Operating System and Hypervisors | Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. |
