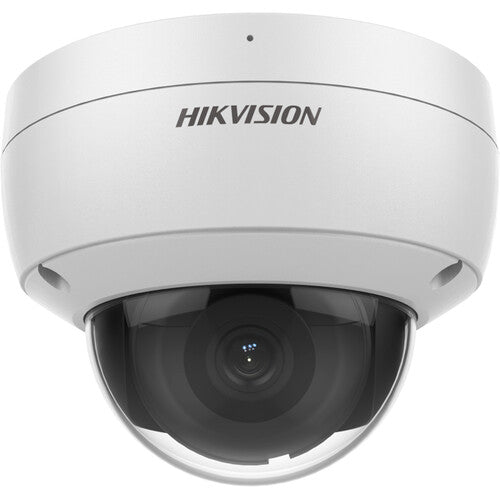

Hikvision DS-2CD2143G2-I(S) 4 MP AcuSense Fixed Dome Network Camera
BZ$260.00
GST included, shipping calculated at checkout
Hikvision 4 MP AcuSense Fixed Dome Network Camera DS-2CD2143G2-I(2.8mm) See Far, Go Further Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness. Specifications Camera: Image Sensor: 1/3″ Progressive Scan CMOS...
Return Policy
Hikvision 4 MP AcuSense Fixed Dome Network Camera
DS-2CD2143G2-I(2.8mm)
See Far, Go Further
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Specifications
Camera:
- Image Sensor: 1/3″ Progressive Scan CMOS
- Maximum Resolution: 2688 × 1520
-
Minimum Illumination:
- Color: 0.005 Lux @ (F1.6, AGC ON)
- 0 Lux with IR on
- Shutter Speed: 1/3 s to 1/100,000 s
- Day/Night: IR cut filter
-
3-Axis Adjustment:
- Pan: 0° to 355°
- Tilt: 0° to 75°
- Rotate: 0° to 355°
Lens:
- Focal Lengths: 2.8 mm / 4 mm
- Aperture: F1.6
- Lens Mount: M12
-
Field of View (FOV):
- 2.8 mm: H: 103°, V: 55°, D: 122°
- 4 mm: H: 84°, V: 45°, D: 100°
-
Focus: Fixed
DORI:
- 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
-
4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
Image:
-
Main Stream Frame Rates:
- 50Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- 60Hz: 30 fps (same resolutions)
-
Sub-Stream Frame Rates:
- 50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60Hz: 30 fps (same resolutions)
-
Third Stream Frame Rates:
- 50Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60Hz: 10 fps (same resolutions)
- Enhancements: BLC, HLC, 3D DNR
- Image Settings: Adjustable via client/web (rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance)
- ROI: 1 fixed region per stream
- Day/Night Modes: Day / Night / Auto / Schedule
- Wide Dynamic Range: 120 dB
- SNR: ≥ 52 dB
Illuminator:
- Supplement Light Type: IR
- Range: Up to 30 m
-
Wavelength: 850 nm
General:
- Material: Front cover: Metal, Back cover: Metal, Sun shield: Plastic
- Dimensions: Ø110.8 × 84.7 mm (Ø4.4″ × 3.3″)
- Package Dimensions: 134 × 134 × 108 mm (5.3″ × 5.3″ × 4.3″)
-
Weight: Camera: 530 g (1.2 lb.), With package: 720 g (1.6 lb.)
Interface:
- Video Output: IP (RJ45 Ethernet port)
- On-board Storage: Built-in microSD slot (up to 512 GB)
- Built-in Microphone: Yes
-
Reset Button: Yes
Event:
- Smart Detection: Line crossing, intrusion (human/vehicle), face detection
- Basic Detection: Motion detection (human/vehicle), video tampering, network issues, illegal login
- Motion Detection: 4 programmable motion areas
-
Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger record/capture, Email
Power:
- Input: 12 VDC ± 25%, Max. 6 W, PoE (802.3af, 36 VDC to 57 VDC), Max. 7 W
-
Recommendation: Use one power adapter per camera
