Ubiquiti Gateway Pro (UXG-Pro)
Return Policy
10G multi-WAN independent gateway with UniFi Power Backup support designed to protect large-scale networks.
Managed by a CloudKey, Official UniFi Hosting, or UniFi Network Server
3.5+ Gbps routing with IDS/IPS
(1) 10G SFP+* and (1) GbE WAN port
(1) 10G SFP+* and (1) GbE LAN port
UniFi Power Backup ready
*Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience.

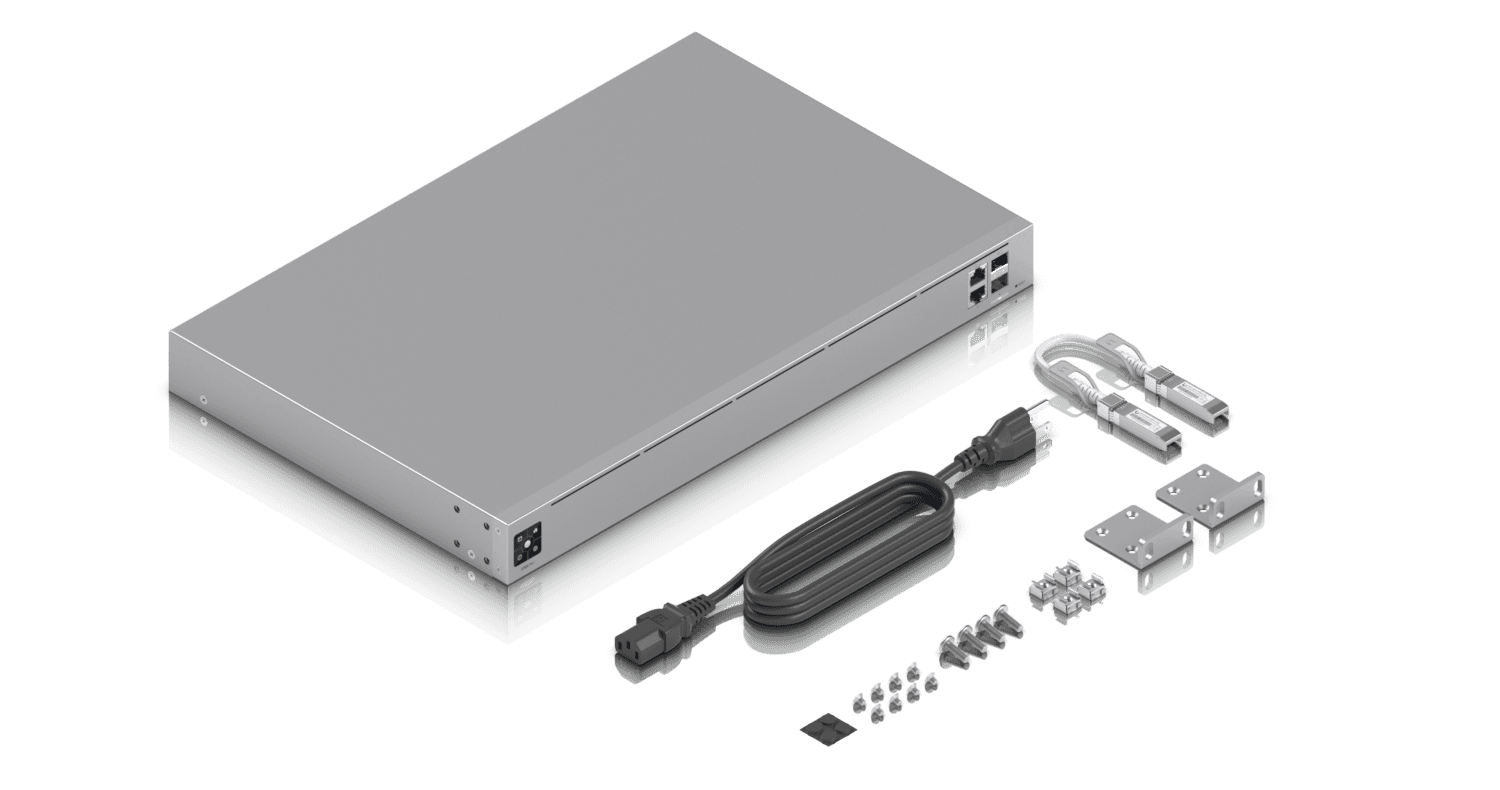

In The Box
Mechanical
Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight: 3.4 kg (7.5 lb)
Enclosure material: Front panel: aluminum CNC, Top cover/base: SGCC steel
Hardware
Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
Memory: 2 GB DDR4
Management interface: Ethernet
Networking Interface
- LAN: (1) 1 GbE RJ45 port, (1) 10G SFP+ port
- WAN: (1) 1 GbE RJ45 port, (1) 10G SFP+ port
IDS/IPS throughput: 3.5 Gbps*
*Measured with iPerf3 on DHCP WAN. Performance may be reduced with PPPoE depending on ISP implementation.
Power
- US: (1) Universal AC input, 125V AC, 2.7A Max., 60 Hz
- Worldwide: (1) Universal AC input, 200–240V AC, 1.7A Max., 50/60 Hz
- RPS DC input: 11.5V DC, 2.87A
Power supply: AC/DC, internal, 50W
Max. power consumption: 30W
ESD/EMP protection: Air: ± 15kV, contact: ± 8kV
LCM display: (1) 1.3" touchscreen
Button: Factory reset
Ambient operating temperature: -10 to 40° C (14 to 104° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Gateway Features
Performance
- Redundant WAN with failover and load balancing
- WiFi QoS with UniFi APs
- Application, domain, and country-based QoS
- Application and device type identification
- Additional internet failover with LTE Backup
- Internet quality and outage reporting
Next-Generation Security
- Application-aware firewall rules
- Signature-based IPS/IDS threat detection
- Content, country, domain, and ad filtering
- VLAN/subnet-based traffic segmentation
- Full stateful firewall
Advanced Networking
- License-free SD-WAN*
- WireGuard, L2TP, and OpenVPN server
- OpenVPN client
- OpenVPN and IPsec site-to-site VPN
- One-click Teleport* and Identity Enterprise VPN**
- Policy-based WAN and VPN routing
- DHCP relay
- Customizable DHCP server
- IGMP proxy
- IPv6 ISP support
*When paired with a CloudKey or Official UniFi Hosting.
**When paired with a CloudKey.
LEDs
Ethernet: Green/amber
SFP+: White/green
AC outlet/RPS: Blue
Software
Management application: UniFi Network: Version 5.14.11 and later
