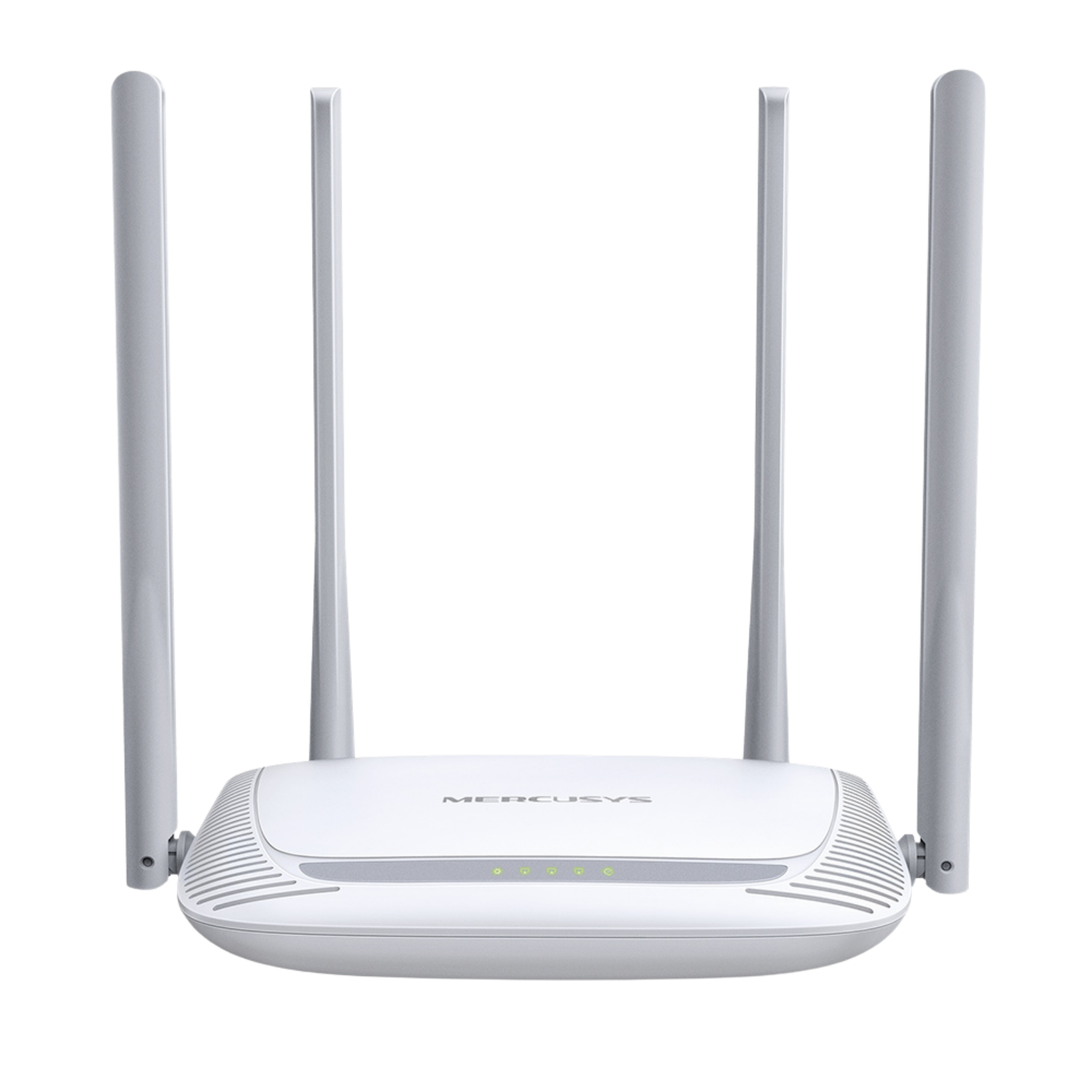

Mercusys 300Mbps Enhanced Wireless N Router (MW325R)
Return Policy
Mercusys 300Mbps Enhanced Wireless N Router
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications.
Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
Specifications
Overview
- Wi‑Fi Standard: Wi‑Fi 4 (802.11 b/g/n)
- Frequency Band: 2.4–2.5 GHz
- Wi‑Fi Speed: Up to 300 Mbps (11n), 54 Mbps (11g), 11 Mbps (11b)
- Antennas: 4 × 5 dBi fixed omni‑directional
- Dual‑Band: No (2.4 GHz only)
- Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge
Certifications & Environment
- Certifications: CE, RoHS
- Operating Temperature: 0°C–40°C (32°F–104°F)
- Storage Temperature: –40°C–70°C (–40°F–158°F)
- Operating Humidity: 10%–90% (non‑condensing)
- Storage Humidity: 5%–90% (non‑condensing)
Performance & Features
- Wireless Security: WPA‑PSK / WPA2‑PSK
- Guest Network: 2.4 GHz Guest Wi‑Fi
- Reception Sensitivity (Highlights):
- 300 Mbps (MCS7): –70 dBm
- 130 Mbps: –72 dBm
- 54 Mbps: –74 dBm
- 11 Mbps: –87 dBm
- 6 Mbps: –92 dBm
- 1 Mbps: –94 dBm
- 300 Mbps (MCS7): –70 dBm
- Transmission Power: < 20 dBm
- Firewall: IP & MAC Binding
- WAN Types: Dynamic IP, Static IP, PPPoE, L2TP, PPTP
- Port Forwarding: Virtual Server, UPnP, DMZ
- DDNS Support: Oray
- Management: Access Control, Local & Remote Management
- Protocols: IPv4

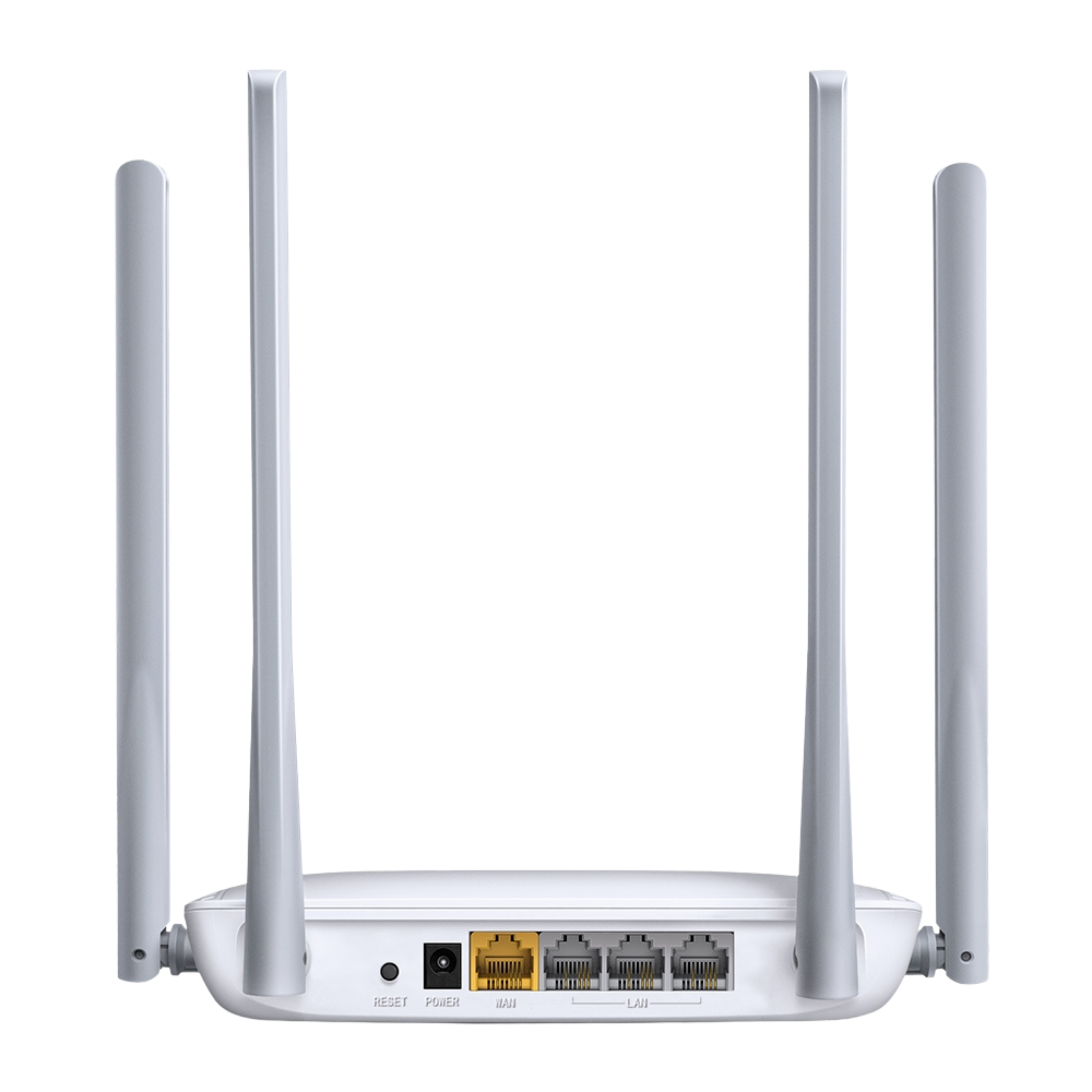

Connectivity
- WAN Port: 1 × 10/100 Mbps
- LAN Ports: 3 × 10/100 Mbps
- Button: Reset
- Power: 5V DC ⎓ 0.6A
Physical
-
Dimensions:
- 167 × 118 × 33 mm
- Antenna Type: 4 × 5 dBi fixed omni‑directional
-
Included in the Box:
- 300Mbps Wireless N Router (MW325R)
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
- 300Mbps Wireless N Router (MW325R)
Wide Wi-Fi Coverage

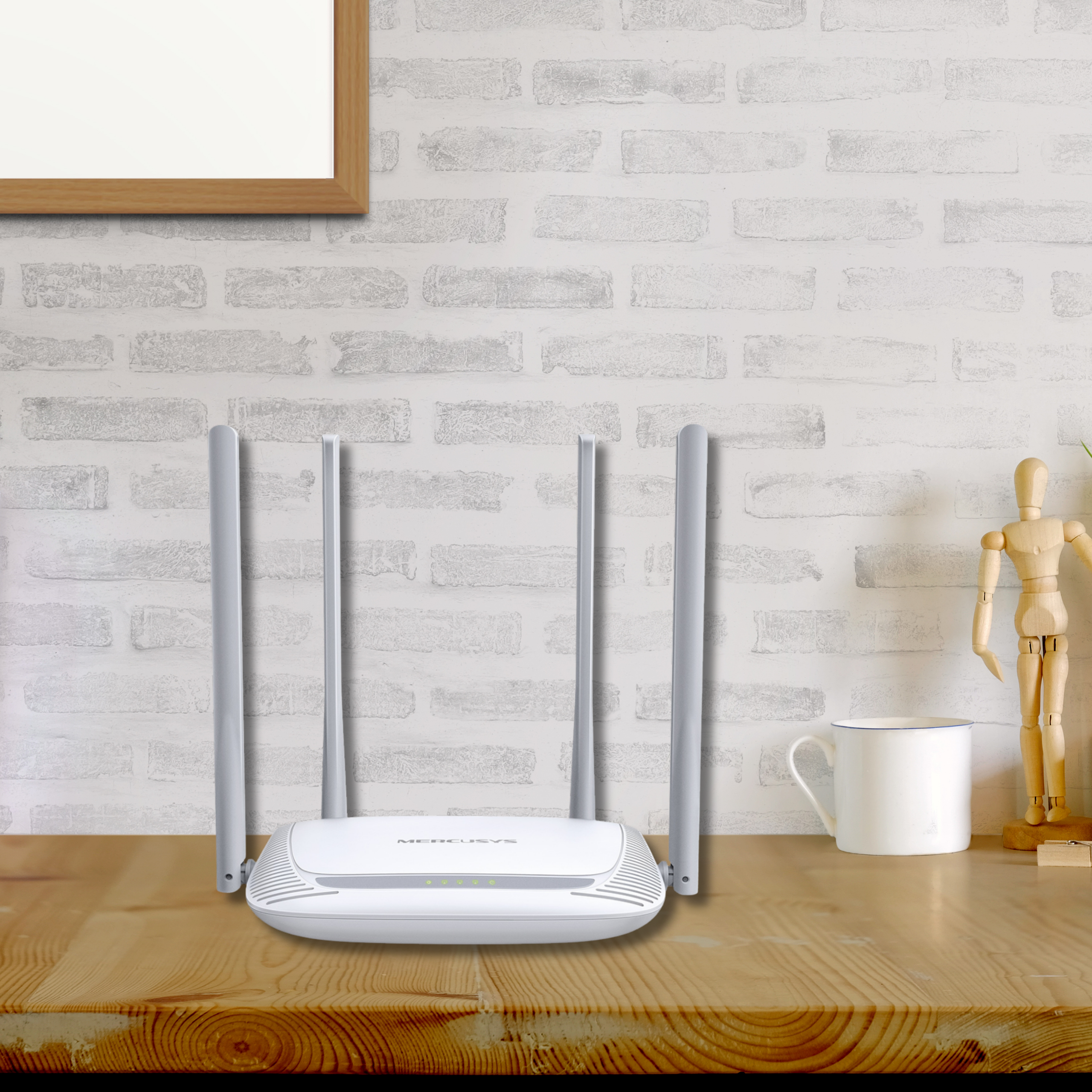

The MW325R creates an expansive wireless network to deliver broader wireless coverage. You can enjoy reliable, high-performance connections in the living room, the bedroom, or even the backyard.

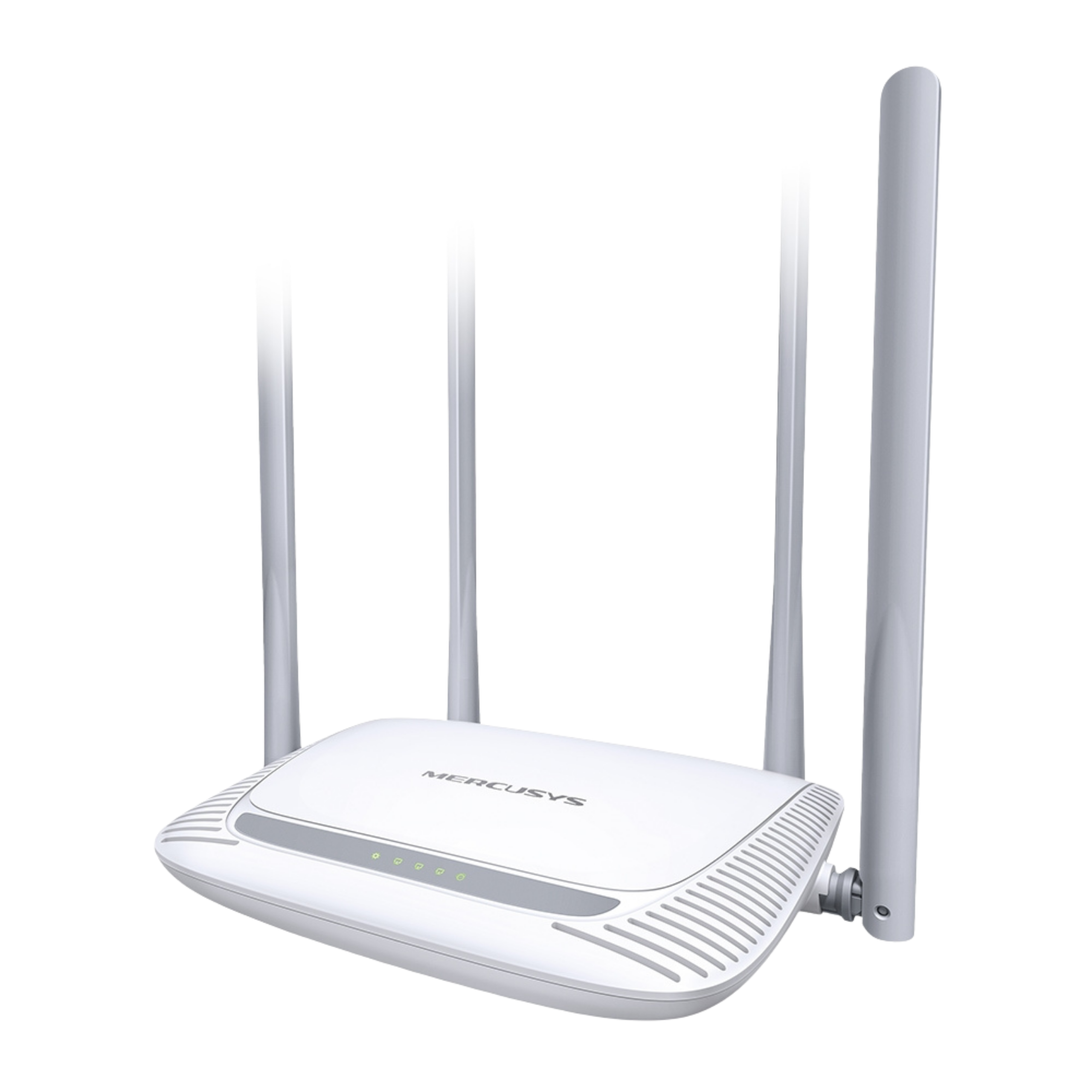

Four 5dBi Antennas
By combining 2x2 MIMO Technology and four high gain antennas, the MW325R is able to significantly increase its signal transmission and reception capabilities. This means that you do not have to worry about lag or dropped connections while enjoying online gaming and streaming video.
Easy Setup with MERCUSYS App
The MERCUSYS app provides the easiest way for you to set up in minutes and manage your WiFi at home or away through your iOS or Android devices.
