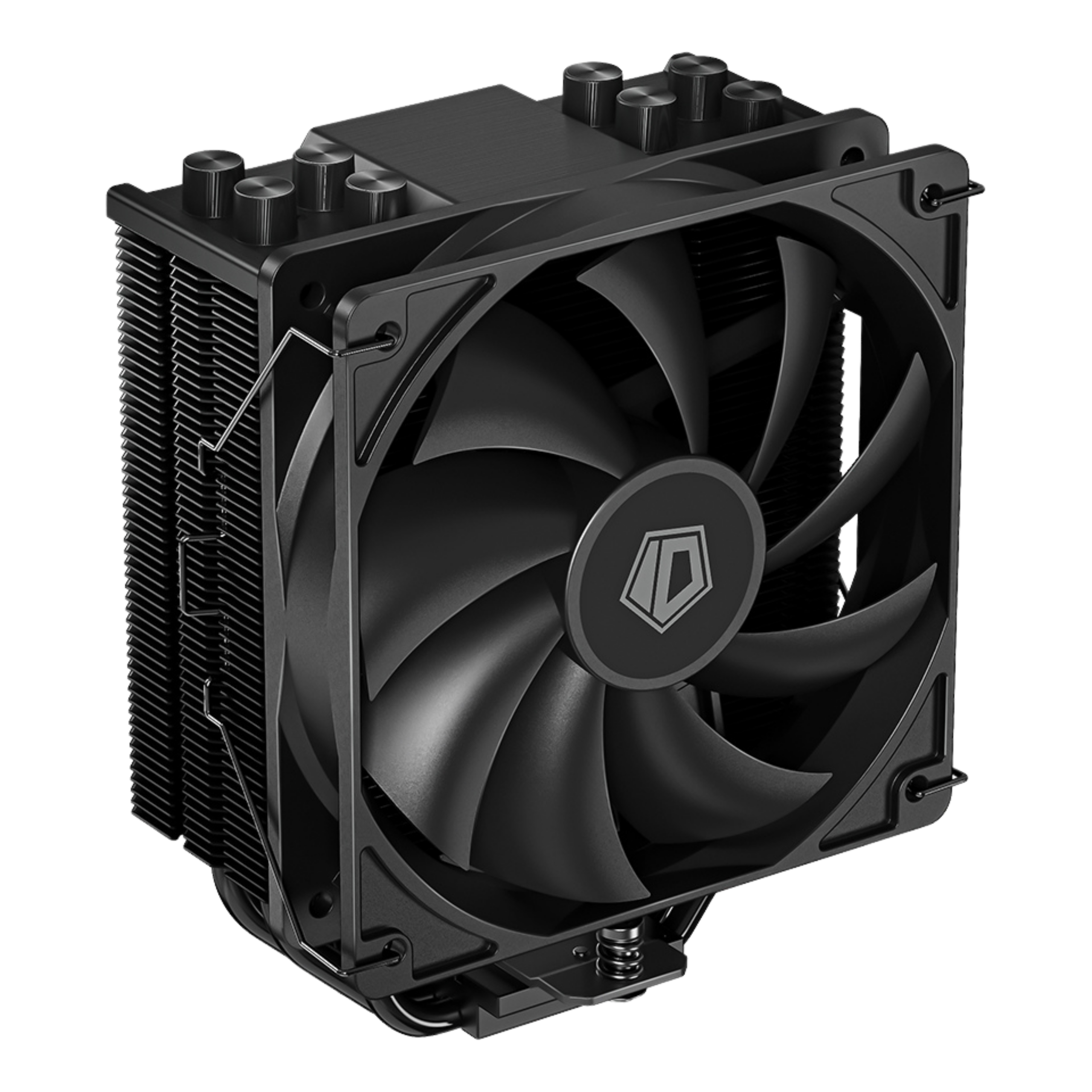

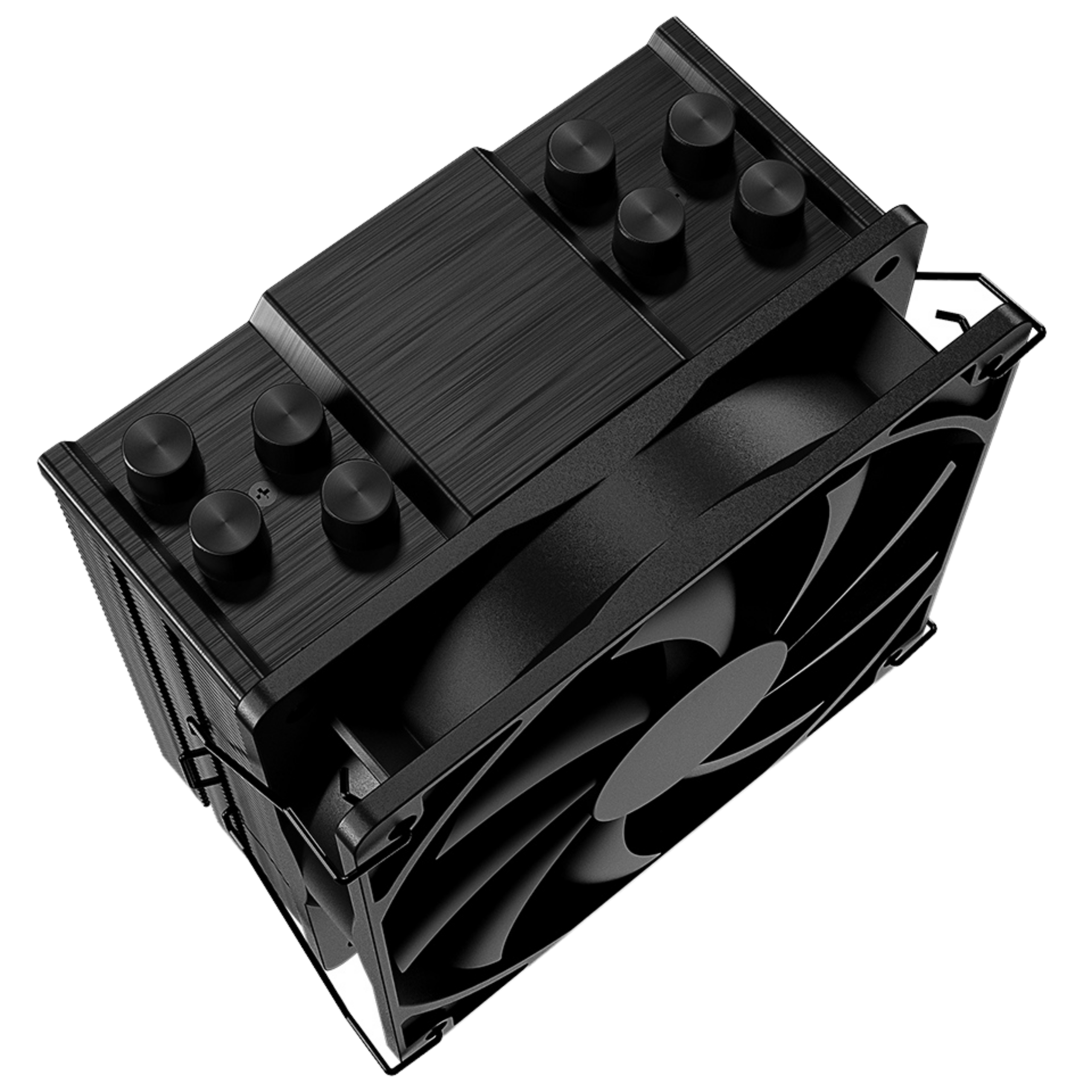

ID-COOLING SE-214-XT Black CPU Cooler - 4 Heatpipe - PWM - Intel & AMD

Compatibility & Dimensions

• CPU Compatibility:
  • Intel LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156
  • AMD AM5 / AM4

• TDP Rating: 180W

• Overall Dimensions: 124 × 72 × 151 mm (L × W × H)

• Heatsink Material: 4 × Ø6mm Heatpipes + Direct Touch + Aluminum Fin

• Weight: 500 g (heatsink + fan)

• Cold Plate: Direct-touch copper base

Fan Performance

• Fan Dimensions: 120 × 120 × 25 mm

• Fan Speed: 700 – 1800 RPM ±10%

• Max Airflow: 76.16 CFM

• Static Pressure: 2.4 mmH₂O

• Noise Level: 35.2 dB(A) Max

• Bearing Type: Hydraulic Bearing

• Rated Voltage: 12V DC (4‑pin PWM)

• Operating Voltage: 10.8 – 13.2V DC

• Starting Voltage: 7V DC

• Rated Current: 0.2A

• Power Input: 2.4W

• Connector: 4‑pin PWM

  Features & Build

• Cooling Type: Tower air cooler

• Heatpipes: 4 × 6 mm direct‑touch design

• Lighting: None (standard fan model)

• Durability: 40,000‑hour fan life @ 40°C

• Mounting: Multi‑platform Intel/AMD brackets included

• Accessories: Thermal paste ×1, Screws ×8

• Special Features:
  • Efficient hydraulic bearing fan
  • Wide RPM range for cooling control
  • High‑pressure airflow for performance cooling

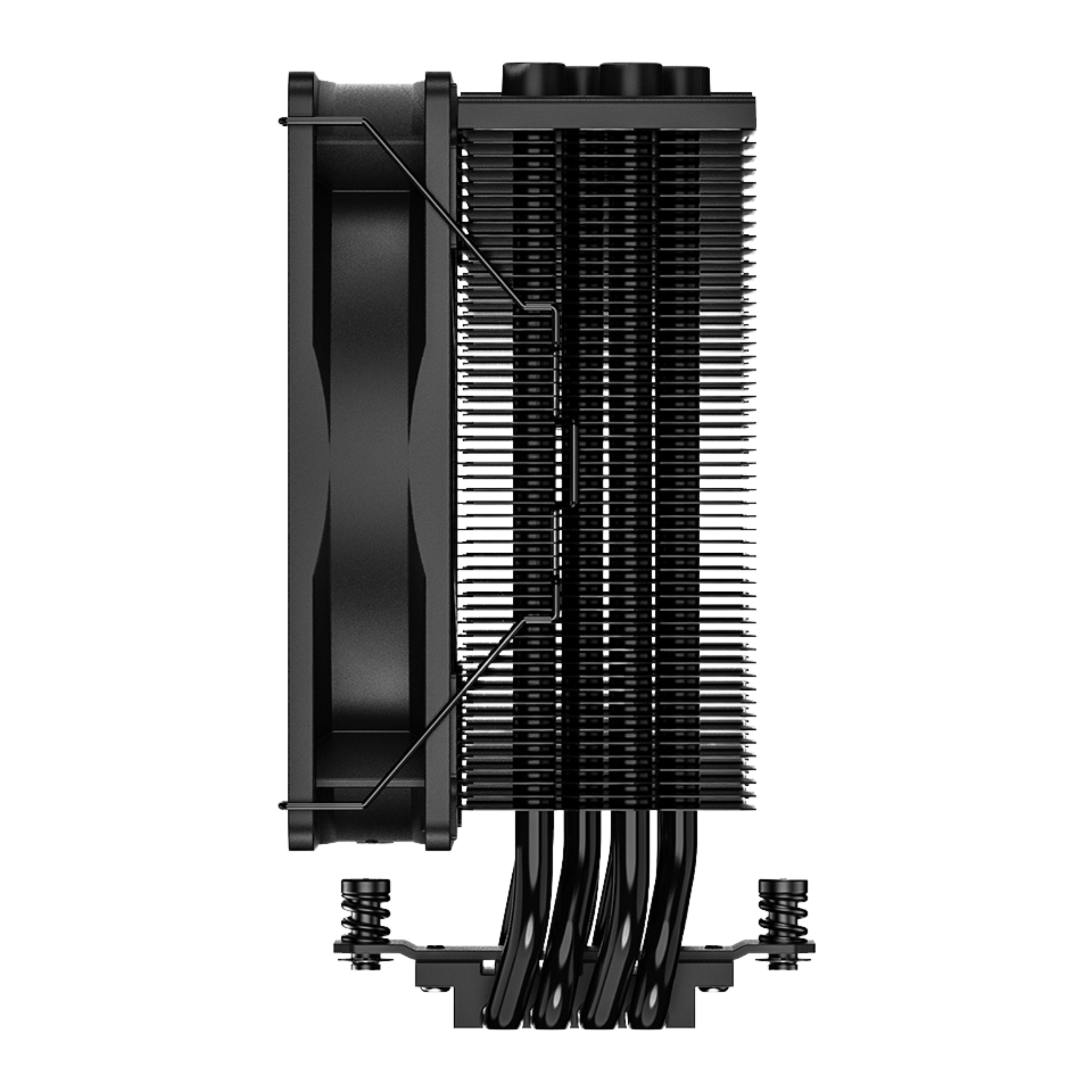

4 Direct-contact Heat Pipes

Four Ф6mm direct-contact copper heat pipes absorb heat from the CPU and transfer it to the heatsink.

700~1800±10%RPM

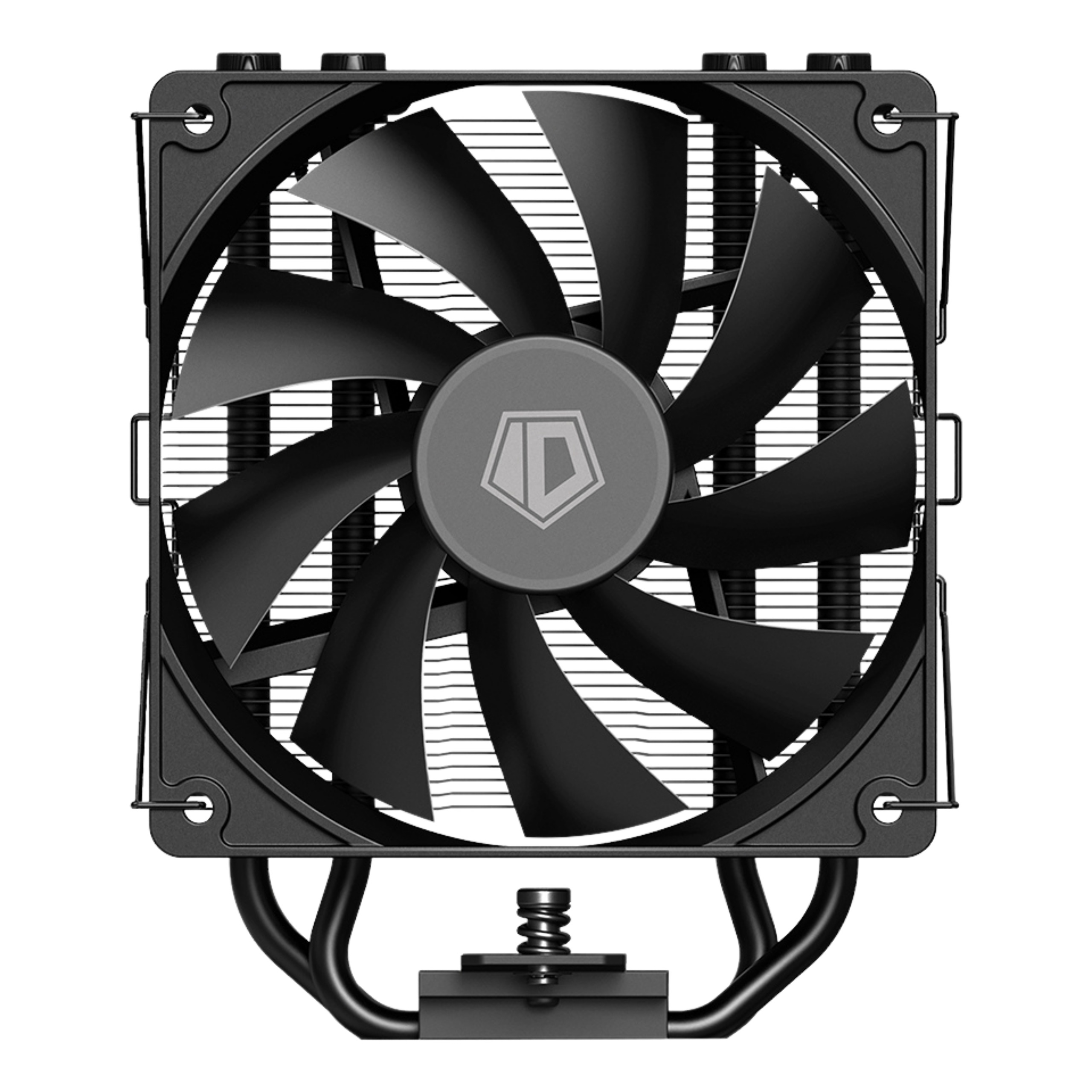

The 120mm PWM fan delivers improved airflow and low noise when operating | Max. Air Flow: 76.16CFM

Intel & AMD

Adjust fan speeds to accommodate the demands of your system, minimizing noise or maximizing airflow.
