Ubiquiti Long-Range Ethernet Repeater UACC-LRE
BZ$125.00
GST included, shipping calculated at checkout
Long-range Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE output. Extend PoE connections up to 1 km* (1) GbE RJ45 port for PoE/PoE+ input** (1) GbE RJ45 port for passthrough PoE output 10kA+ surge protection Works reliably in extreme temperatures (-40 to 80° C) *Repeaters must be placed...
Return Policy
Long-range Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE output.
Extend PoE connections up to 1 km*

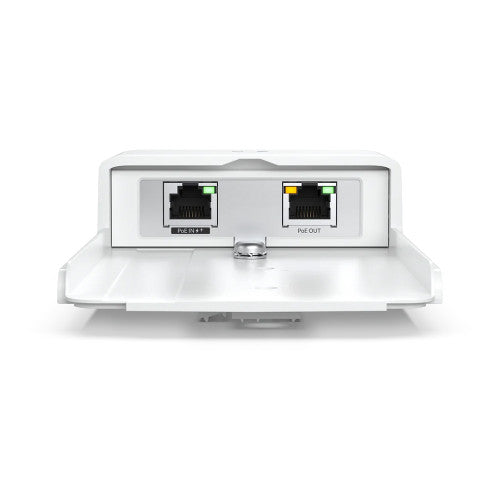

(1) GbE RJ45 port for PoE/PoE+ input**
(1) GbE RJ45 port for passthrough PoE output
10kA+ surge protection
Works reliably in extreme temperatures (-40 to 80° C)
*Repeaters must be placed in 100 m increments.
**Powered with pins 1, 2+; 3, 6- which may not be supported by certain third-party switches. We recommend using a UniFi switch to power the device.
Technical Specification
| Mechanical | |
|---|---|
| Dimensions | 196.5 x 93.5 x 39 mm ( 7.7 x 3.7 x 1.5") |
| Weight | 350 g (12.3 oz) |
| Enclosure material | UV stabilized polycarbonate |

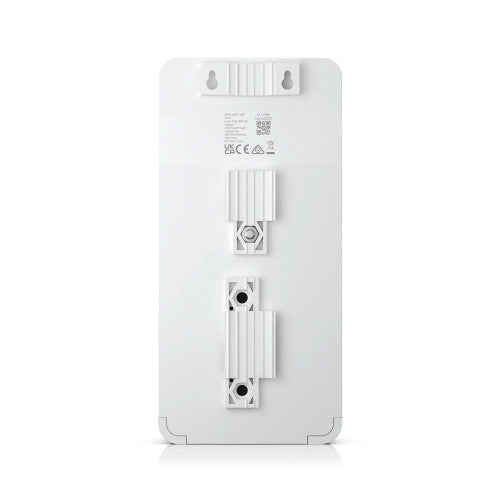

| Mounting material | Stainless steel |
| Weatherproofing | IPX5 |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| PoE interface | (1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-) |
| Total non-blocking line rate | 2 Gbps |
| Switching capacity | 4 Gbps |
| Forwarding rate | 1.488 Mpps |
| Power method | PoE/PoE+ 2-pairs (Pins 1, 2+; 3, 6-) |
| Power supply | UniFi PoE switch |
| Max. power consumption | 1.5W (Excluding PoE output) |
| Total available PoE | 22.5W |
| Voltage range PoE mode | 37—57V DC |
| ESD/EMP protection | Air/contact: ± 30kV |
| DC sparkover voltage | 90V at 100V/s |
| Max. impulse sparkover voltage | 700V at 1kV/μs |
| Discharge current | 10kA+ |
| Max. MTU | 1,500 bytes |
| Ambient operating temperature | -40 to 80° C (-40 to 176° F) |
| Ambient operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Blue: power ON |
| Ethernet | Green: 1 Gbps Amber: 10/100 Mbps |
| PoE | Amber: passthrough PoE out |
