8 PoE (Gen1) An 8-port, Layer 2 PoE switch with a silent, fanless cooling system. (4) GbE PoE, (4) GbE ports 48W total PoE availability Build Features Specifications Category Details Dimensions 148 x 100 x 31 mm (5.8 x 3.9 x 1.2") Weight 432 g (15.2 oz) Enclosure Material SGCC...
Return Policy
8 PoE (Gen1)
An 8-port, Layer 2 PoE switch with a silent, fanless cooling system.

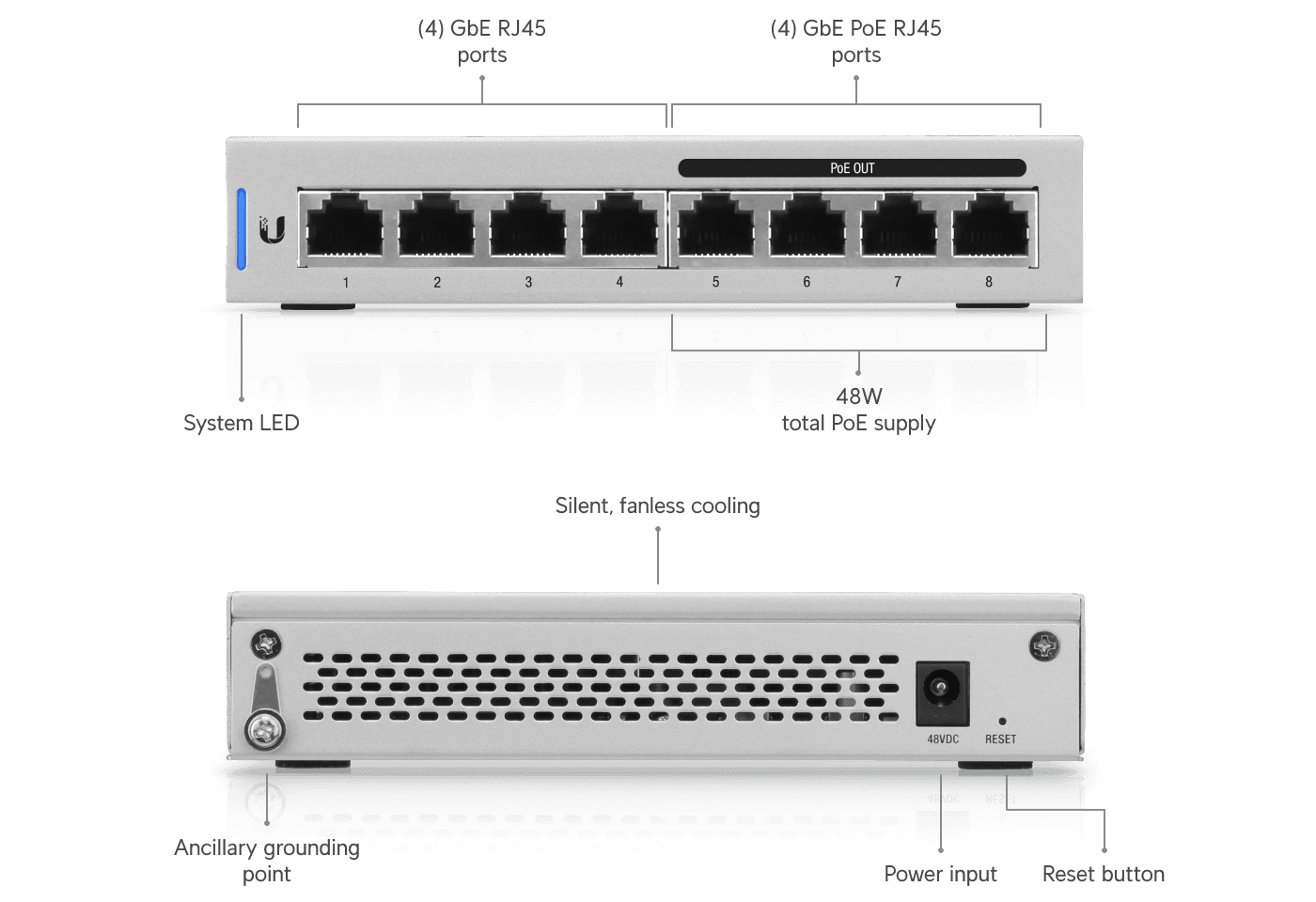

(4) GbE PoE, (4) GbE ports
48W total PoE availability
Build Features
Specifications
| Category | Details |
|---|---|

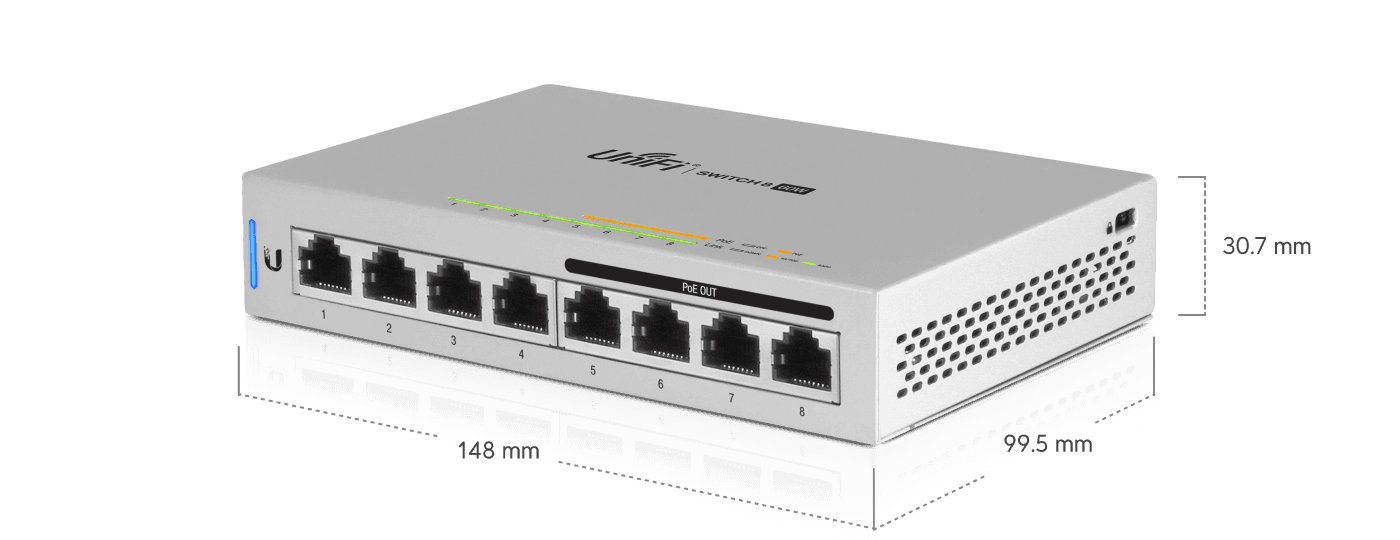

| Dimensions | 148 x 100 x 31 mm (5.8 x 3.9 x 1.2") |
| Weight | 432 g (15.2 oz) |
| Enclosure Material | SGCC steel |
| Networking Interface | (8) GbE RJ45 ports |
| PoE Interface | (4) PoE (Pins 1, 2+; 3, 6-) |
| Total Non-blocking Throughput | 8 Gbps |
| Switching Capacity | 16 Gbps |
| Forwarding Rate | 11.9 Mpps |
| Power Method | (1) 48V DC, 2A Max. |
| Power Supply | External AC/DC adapter: 100-240V AC, 50/60 Hz; 48V DC, 1.25A |
| Supported Voltage Range | 44–57V DC |
| Max. Power Consumption | 12W (Excluding PoE output.) |
| Total Available PoE | 48W |
| Max. PoE Wattage per Port | 15.4W |
| ESD/EMP Protection | Air: ± 24kV, contact: ± 24kV |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | Ethernet PoE, Link/Speed/Activity |
