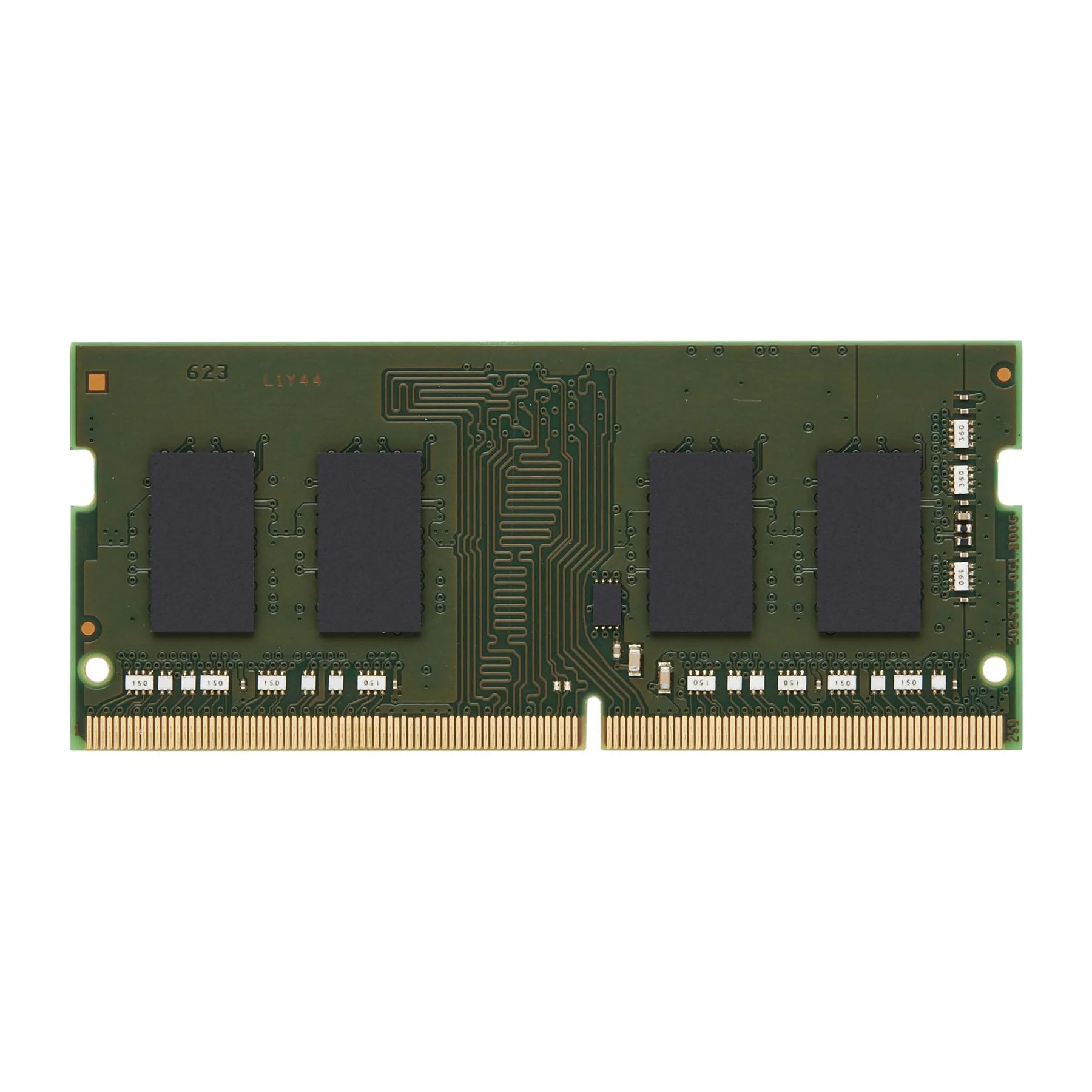

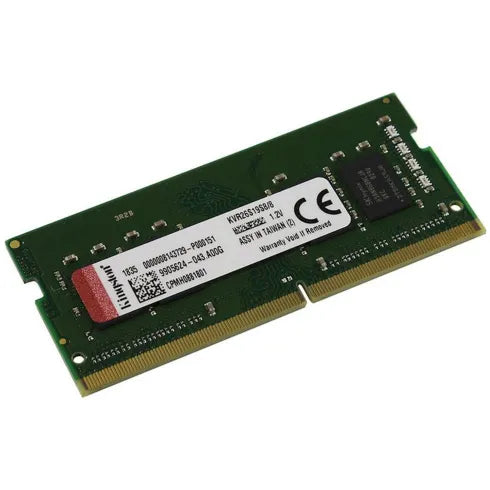

Kingston 8GB Laptop DDR4-2666 SO-DIMM Memory Module
BZ$75.00
GST included, shipping calculated at checkout
Kingston 8GB Laptop DDR4-2666 SO-DIMM Memory Module Kingston KVR26S19S8/8 is a high-quality RAM card for use in a laptop. The model is designed on the SODIMM-260 dual-sided technology, DDR4 strip type, due to which the module can be used in the latest motherboards. The total memory size of the module...
Subcribe to back in stock notification
Return Policy
Kingston 8GB Laptop DDR4-2666 SO-DIMM Memory Module
Kingston KVR26S19S8/8 is a high-quality RAM card for use in a laptop. The model is designed on the SODIMM-260 dual-sided technology, DDR4 strip type, due to which the module can be used in the latest motherboards. The total memory size of the module is 8 GB, which means ease of use for the user with any modern operating systems and video games.
Specifications
Overview:
- Model: KVR26S19S8/8
- Total Capacity: 8GB
- Configuration: 1Rx8 (Single Rank), 1G x 64-bit
- Speed: DDR4-2666
- CAS Latency (CL): CL19
- Form Factor: 260-Pin SODIMM
- ECC Type: Non-ECC
- Compatible Machine Type: Laptop / Notebook / AIO
Physical Specifications:
- PCB Height: 1.18″ (30.00 mm)
- Maximum Operating Power: TBD W*
-
Compliance: RoHS Compliant and Halogen-Free
Performance:
- JEDEC Timing: 19-19-19 at 1.2V
- Row Cycle Time (tRCmin): 45.75ns
- Refresh to Active Command Time (tRFCmin): 350ns
- Row Active Time (tRASmin): 32ns
- Burst Chop (BC): Fixed BC4
- Burst Length (BL): 8
- Selectable BC4 or BL8 On-the-Fly (OTF): Yes
- Internal Banks: 16 (4 groups of 4 banks)
- Topology: Fly-by
- Command/Address Bus: Terminated
Environmental Conditions:
- Operating Temperature: 0°C to +85°C
- Storage Temperature: -55°C to +100°C
-
UL Rating: 94 V - 0
Features:
- On-die Termination (ODT): Nominal and dynamic for data, strobe, and mask signals
- Low-Power Auto Self Refresh (LPASR): Supported
- Data Bus Inversion (DBI): Supported
- On-die VREFDQ Generation and Calibration: Yes
- SPD EEPROM: On-board I²C Serial Presence Detect
-
Contact Fingers: Gold
Power Supply:
- VDD: 1.2V Typical
- VDDQ: 1.2V Typical
- VPP: 2.5V Typical
-
VDDSPD: 2.2V to 3.6V
The Kingston KVR26S19S8/8 device has a clock frequency of 2666 MHz, due to which it demonstrates a high level of performance. The throughput of the model is 21300 MB / s, which leads to a high level of speed when transferring information. Timings or CAS Latency of the device are 19, this means a low latency rate.
Dimensions:
