Scanning & Reading:

• Reading Method: 1280 × 800 pixel CMOS sensor with white LED
• Minimum Resolution: 0.0762 mm
• PCS Value: 0.15
• Supported 2D Codes:
  PDF417, QR Code, Data Matrix, Micro QR, Micro PDF417, GM Code, Chinese Sensible Code, Maxicode, Aztec, Code One
• Supported 1D Codes:
  EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code39, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code32, Code11, MSI-Plessey, Plessey

Power & Battery:

• Battery Type: 2000 mAh Lithium-Ion
• Operating Time: Up to 9.5 hours (1 scan every 3 seconds)
• Charging Time: Approx. 5 hours

Connectivity:

• Wireless: Realtek Wi-Fi 6 RTL8852BE, 2x2, 802.11ax, MU-MIMO, Bluetooth wireless card

Performance:

• Read Distance:
  • JAN-13: 10–130 mm (13mil)
  • Code 39: 35–80 mm (5mil)
  • QR Code: 15–110 mm (15mil)
• Reading Angle:
  • Pitch: ±60°
  • Skew: ±65°
  • Tilt: 360°
• Read Confirmation: Blue LED + Buzzer (non-adjustable)

Durability & Build:

• Drop Resistance: 1.5 m (4.9 ft)
• Protection Rating: IP52
• Dimensions: 77 × 82 × 146 mm (3.0 × 3.2 × 5.7 in)
• Weight: Approx. 209 g (7.1 oz)

Connectivity:

• Interface:

  • Wireless/Bluetooth 5.0 (BLE / HID)
  • USB Dongle (USB-HID / USB-COM / HID-POS)
  • Wired USB Cable (USB-HID / USB-COM / HID-POS)


• Transmission Distance: Up to 50 m (Bluetooth 5.0, open space)

Environmental:

• Operating Temp: -10°C to 55°C
• Humidity: 5% to 95% (non-condensing)
• Storage Temp: -40°C to 70°C
• Charging Temp: 0°C to 45°C


Certifications:

• Technical Compliance Mark, PSE, RoHS, FCC, CE

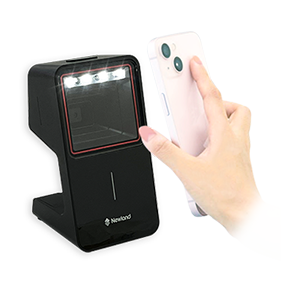

Just hold up 1D / 2D codes

Easily read QR codes/barcodes on smartphones and tablets on the LCD screen or paper. Cordless type with built-in battery, compact design fits in narrow spaces like POS counters. Also includes USB cable for wired connection.

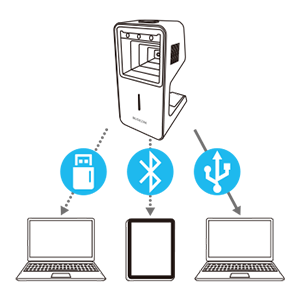

Multi-Device Compatible

Supports stable wireless communication via Bluetooth or included USB dongle. Connects to POS systems, Windows PCs, iPads, iPhones, Android smartphones and tablets. Also supports wired USB connection.

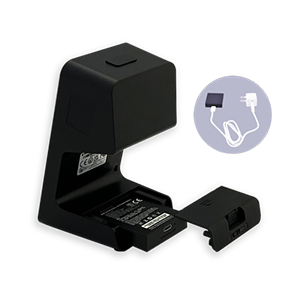

Removable Battery

The battery can be removed and charged directly with the included USB cable. A flashing red LED indicates low battery, so you’re never caught off guard.
