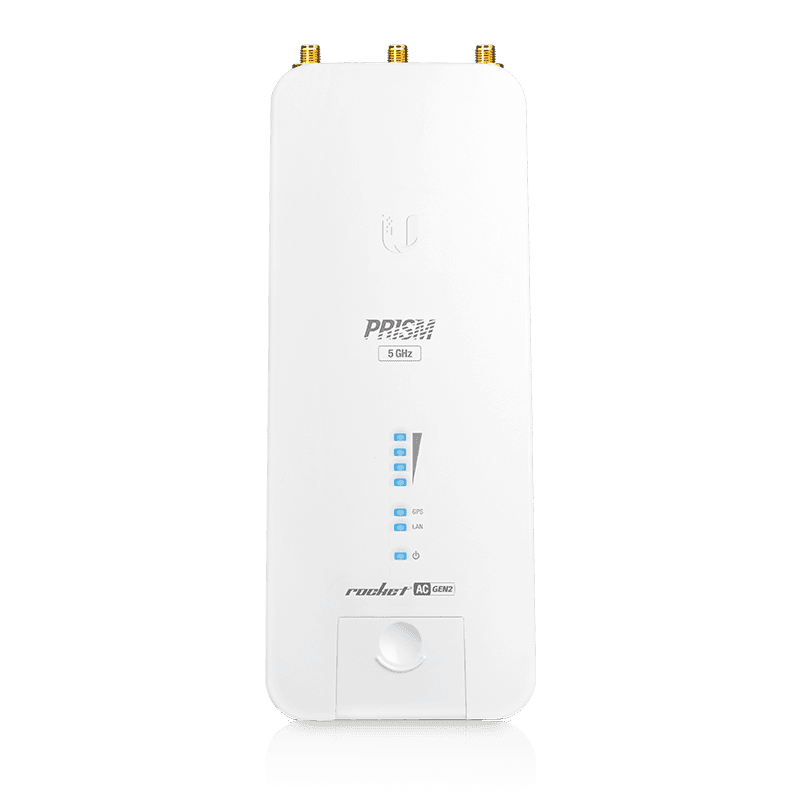

Ubiquiti airMAX Rocket Prism 5AC (RP-5AC-Gen2)
BZ$950.00
GST included, shipping calculated at checkout
airMAX Rocket Prism 5AC High-performance 5 GHz basestation for PtMP or PtP links. Provides up to 500+ Mbps data throughput. Build Features Technical Specification Category Details Dimensions 88 x 40 x 230 mm (3.5 x 1.6 x 9.1") Weight 400 g (14.1 oz) Enclosure Material Die-cast aluminum Mounting Pole mounting...
Return Policy
airMAX Rocket Prism 5AC
High-performance 5 GHz basestation for PtMP or PtP links. Provides up to 500+ Mbps data throughput.
Build Features
Technical Specification
| Category | Details |
|---|---|

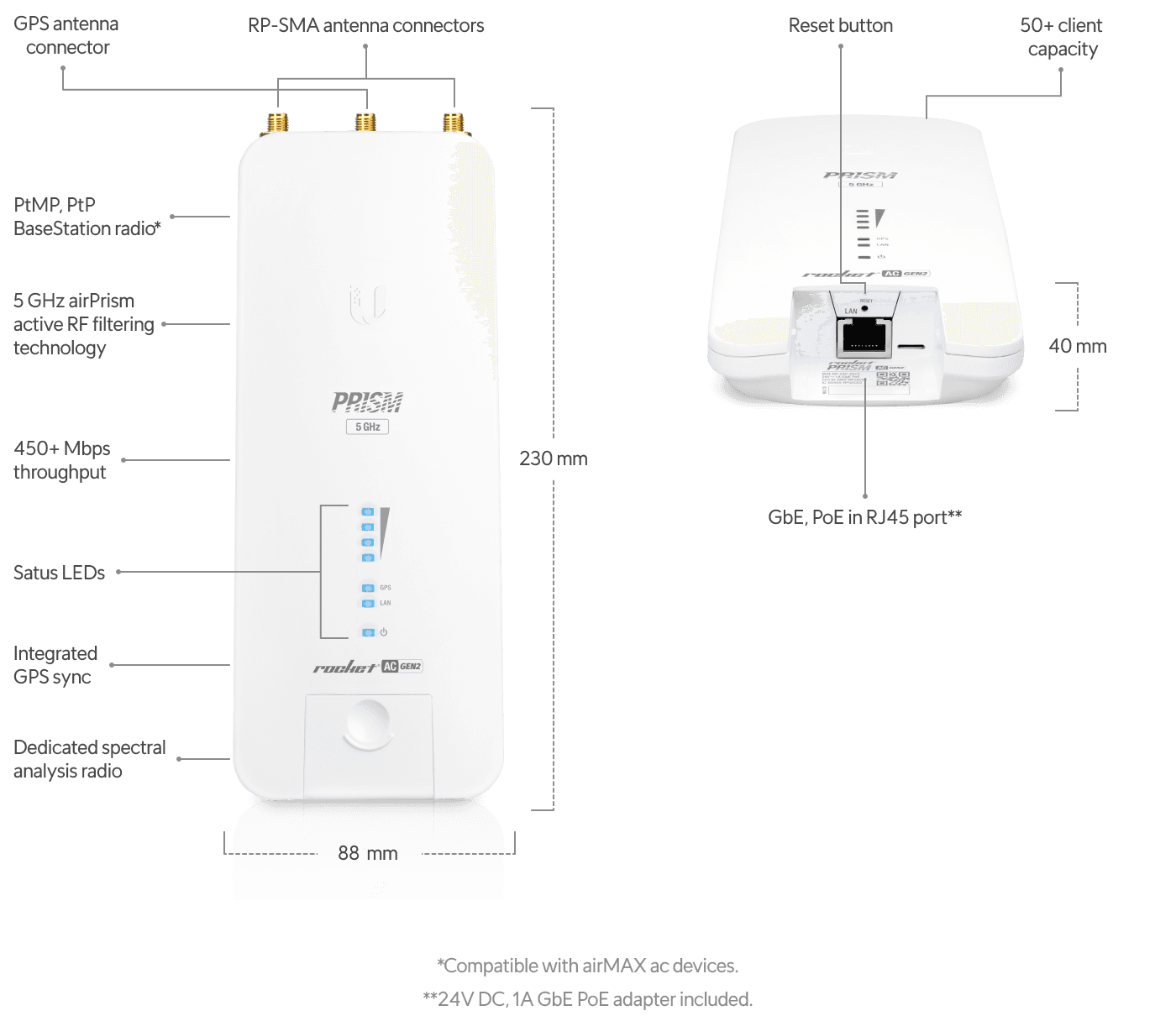

| Dimensions | 88 x 40 x 230 mm (3.5 x 1.6 x 9.1") |
| Weight | 400 g (14.1 oz) |
| Enclosure Material | Die-cast aluminum |
| Mounting | Pole mounting (Kit included) |
| Wind Loading | 342.5 N at 200 km/h (77 lbf at 125 mph) |
| Networking Interface | (1) GbE RJ45 port |
| RF Connectors | (2) RP-SMA (Waterproof), (1) GPS (Waterproof) |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 1A gigabit PoE adapter (Included) |
| Supported Voltage Range | 18—27V DC |
| Max. Power Consumption | 9.5W |
| LEDs | (4) Signal Strength (Software-adjustable to correspond to custom RSSI levels), GPS, LAN, Power |
| Shock & Vibrations | ETSI300-019-1.4 |
| Ambient Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, RoHS |
| Modes | Access Point, Station |
| Channel Sizes - PtP Mode | 10/20/30/40/50/60/80 MHz |
| Channel Sizes - PtMP Mode | 10/20/30/40 MHz |
| Services | Web server, SNMP, SSH server, telnet, ping watchdog, DHCP, NAT, bridging, routing |
| Utilities | airMagic, airView, antenna alignment tool, discovery utility, site survey, ping, traceroute, speed test |
| Distance Adjustment | Dynamic Ack and Ackless mode |
| Power Adjustment | Software adjustable UI or CLI |
| Security | WPA2 AES only |
| QoS | Supports packet level classification WMM and user customer level: High/Medium/Low |
| Statistical Reporting | Up time, packet errors, data rates, wireless distance, Ethernet link rate |
| Ubiquiti Specific Features | 30/50/60 MHz Channels, airMAX ac mode, traffic shaping with burst support, discovery protocol, frequency band offset, Ackless mode |
| Operating Frequency (MHz) - Worldwide | 5150–5875 MHz |
| Operating Frequency (MHz) - USA | U-NII-1: 5150–5250 MHz U-NII-2A: 5250–5350 MHz U-NII-2C: 5470–5725 MHz U-NII-3: 5725–5850 MHz |
| Management Radio (MHz) - Worldwide | 2412–2472 MHz |
| Management Radio (MHz) - USA | 2412–2462 MHz |
