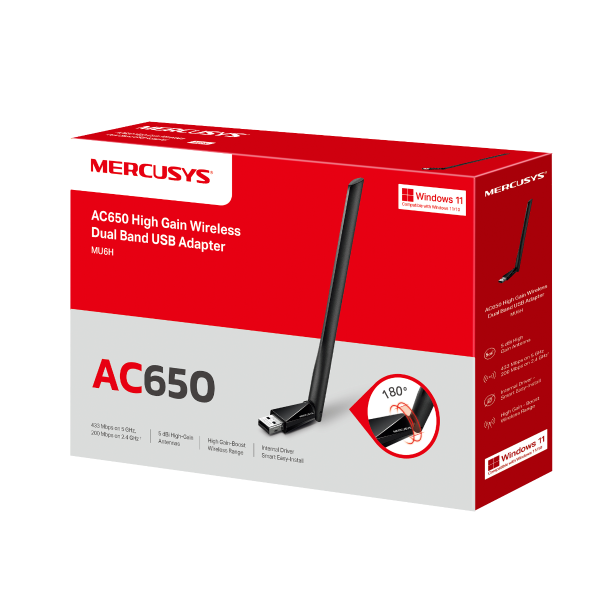

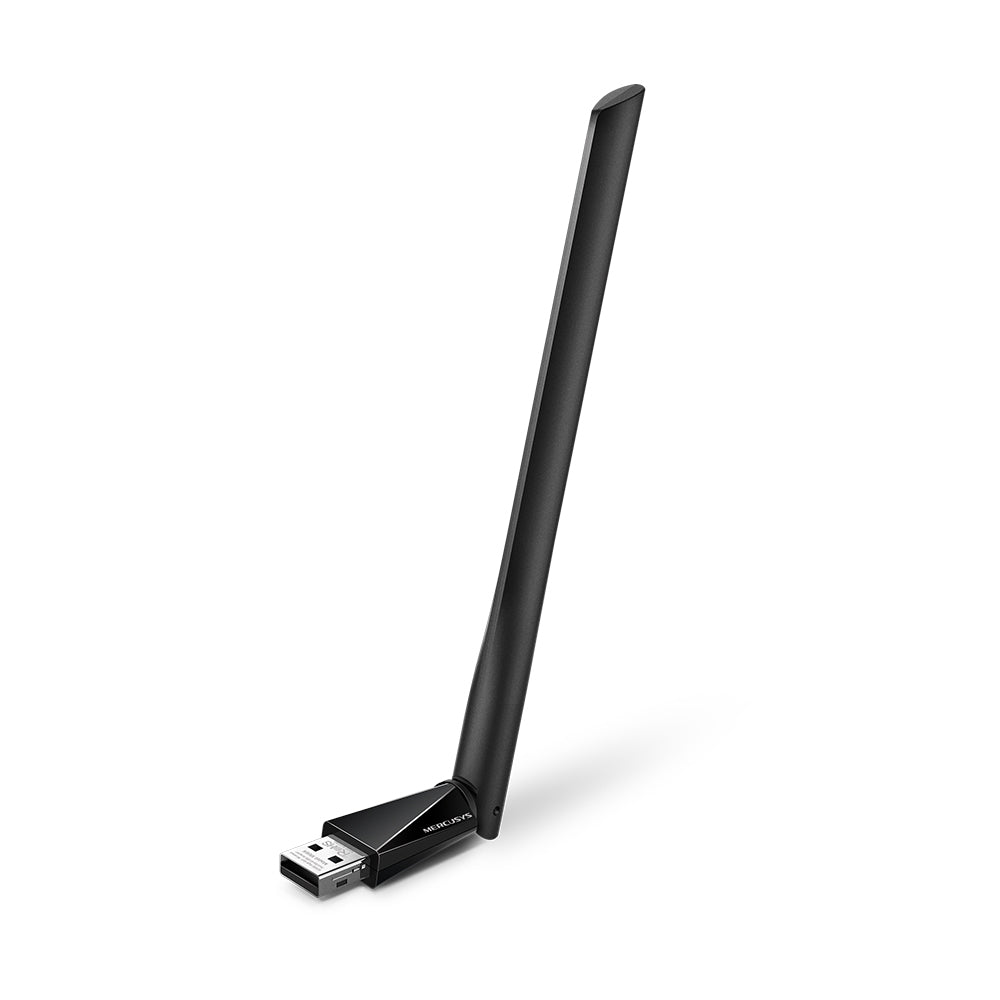

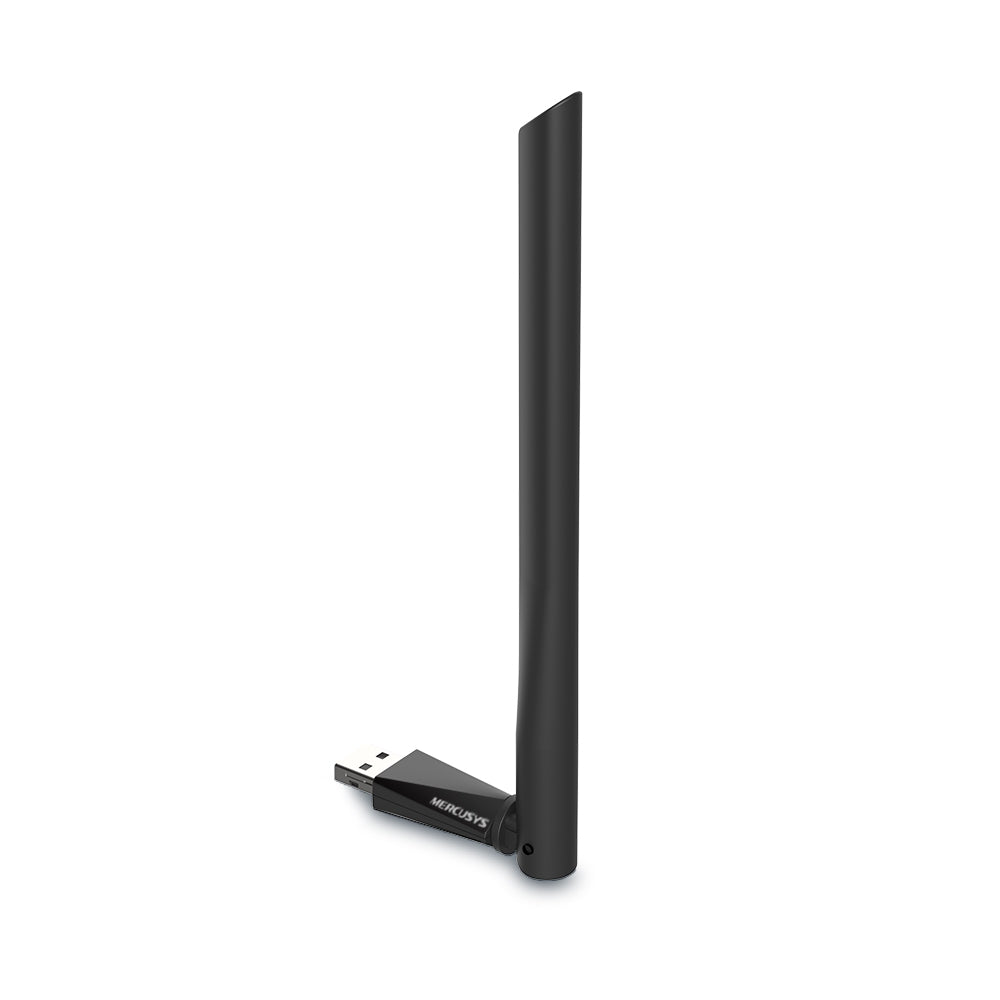

Mercusys AC650 High Gain Wireless Dual Band USB Adapter (MU6H)

High Speed WiFi

Up to 433Mbps speeds with 200Mbps on 2.4GHz and 433 Mbps on 5GHz, upgrades your devices to higher AC WiFi speeds.

Dual Band Wireless

2.4GHz and 5GHz band for flexible connectivity, upgrades your devices to work with the latest dual-band WiFi router for faster speed and extended range.

High-Gain Antenna

A 5dBi high-gain antenna greatly enhances the reception and transmission strength of the USB adapter.

Internal Driver

Smart easy-install for Windows operating system

Boost Wireless Range with High Gain Antenna

A 5 dBi high gain antenna reaches your router from farther with more precise directional range, sustaining faster and more stable wireless connections.

Supports the Latest Operating Systems

Fully compatible with Windows 11/10/8.1/8/7/XP

Wireless:

• Wireless Standards:
  • IEEE 802.11b/g/n (2.4 GHz)
  • IEEE 802.11a/n/ac (5 GHz)
• Frequency Range:
  • 2.4 GHz: 2400 – 2483.5 MHz
  • 5 GHz: 5150 – 5250 MHz, 5250 – 5350 MHz, 5470 – 5725 MHz
• WiFi Speeds:
  • 802.11ac: Up to 433 Mbps (Dynamic)
  • 802.11n: Up to 200 Mbps (Dynamic)

Reception Sensitivity:

• 433M: -62 dBm @ 10% PER
• 200M: -65 dBm @ 10% PER
• 54M: -75 dBm @ 10% PER
• 11M: -90 dBm @ 8% PER


Wireless Security:

• WEP, WPA / WPA2, WPA-PSK / WPA2-PSK, 802.1X


Hardware:

• Interfaces: USB 2.0
• Antenna Type: 1 External High-Gain 5 dBi Antenna
• LED Indicator: Status

Physical Appearance:

• Dimensions: 2.28 × 0.66 × 6.83 in (57.8 × 16.8 × 173.4 mm)


System Requirements

• Compatible with:
  • Windows 11 / 10
  • Windows 8.1 / 8
  • Windows 7 / XP


Package Contents:

• AC650 High Gain Wireless Dual Band USB Adapter (MU6H)
• Quick Installation Guide
