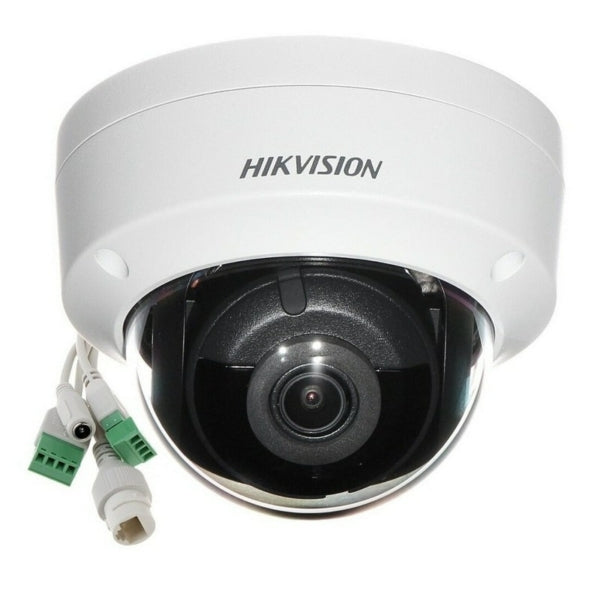

Hikvision 2MP WDR Fixed Dome Network Camera
Subcribe to back in stock notification
Return Policy
- Image Sensor1/2.7" Progressive Scan CMOS
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Wide Dynamic Range120 dB
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
-
Focal Length & FOV
2.8 mm: horizontal FOV 111.6°, vertical FOV 59.1°, diagonal FOV 133.9°
4 mm: horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8°
6 mm: horizontal FOV 56°, vertical FOV 29.8°, diagonal FOV 65.3°
- Lens MountM12
- FocusFixed
- ApertureF1.6
- IR RangeUp to 30 m
- IR Wavelength850 nm
- Max. Resolution1920 × 1080
-
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
-
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- H.264+Main stream supports
- H.265+Main stream supports
- Region Of Interest (ROI)Support 1 fixed region for main stream
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface, ISAPI
- User/HostUp to 32 users. 3 levels: administrator, operator and user
- Network StorageSupport Micro SD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
- ClientiVMS-4200, Hik-Connect, Hik-Central
-
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, 3D DNR
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in Micro SD slot, up to 256 GB
- Audio-S: 1 input (line in), 1 output (line out)
- Alarm-S: 1 input, 1 output (max. 12 VDC, 30 mA)
- Hardware ResetYes
- Smart EventLine crossing detection, intrusion detection
- Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
-
Camera Material
Metal & Plastic
- Camera DimensionØ110.8 mm × 84.7 mm (Ø 4.4" × 3.3")
- Package Dimension135 mm × 135 mm × 110 mm (5.3" × 5.3" × 4.3")
- Camera WeightApprox. 497 g (1.1 lb.)
- With Package WeightApprox. 597 g (1.3 lb.)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
-
Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
